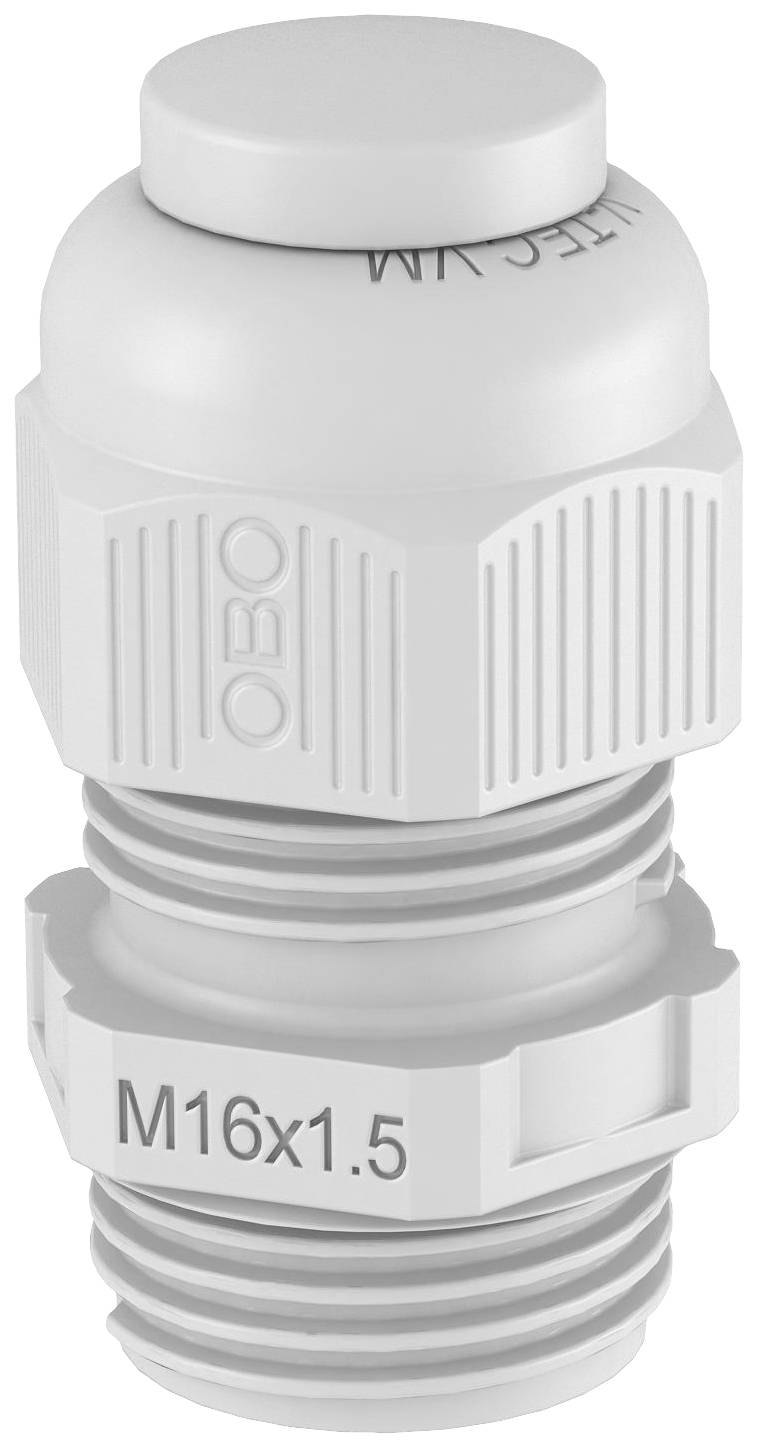

OBO Bettermann 2023042 Cable gland 1.5 mm Plastic Light grey 50 pc(s)
Product type
Cable gland
External thread
M16
Type
Straight
Material
Plastic
Features
with strain relief
EAN:
Part number:
Item no:
Technical specifications
- Metric thread type:
- Thread which large metric/PG: 16
- Hexagon Width across corners: 22 mm
- Untreated surface:
- Glass-fiber reinforced: no
- Impact: no
- Color: light gray
- RAL-number: 7035
- Bend protection: no
- With nut: no
- Multi-seal insert: no
- Flat cable gland: no
- With strain relief: yes
- Type of seal: sealing ring
- Divisible cable gland: no
- Explosion tested design: no
- For Ex Zone Gas: without
- For Ex zone dust: without
- Product type
Cable gland
- Features
with strain relief
- Factory colour
Light grey
- External thread
M16
- Internal thread
1.5 mm
- Type
Straight
- Material
Plastic
- Thread length
8 mm
- Min. temperature
-20 °C
- Max. temperature
+65 °C
IP68
- Spanner size
20 mm
- Dimensions
22 mm
- Halogen-free
Yes
- Content
50 pc(s)
- Dim
22
- Manufacturer part #
2023042
- Type
V-TEC VM16VS LGR
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1966661 OBO Bettermann 2023042 Cable gland 1.5 mm Plastic Light grey 50 pc(s)
Description
The fastest and most comfortable way with cable glands at cable branch boxes and housings for strain-relief and sealing to ensure: the tried-and-tested V-TEC VM cable glands from OBO. With the integrated lip seal and special OBO lamellae technology, the protection class IP68 is achieved. Strain-relief and sealing are tested according to DIN EN 50262. The connection threads are metric and thus can be used without sell. Once screwed, keeps the installation forever: The ideal thread adjustment with the right slope provides permanently for vibration strength. Applications: from the private residential area with cable junction box to industrial applications in the distribution cabinet.
