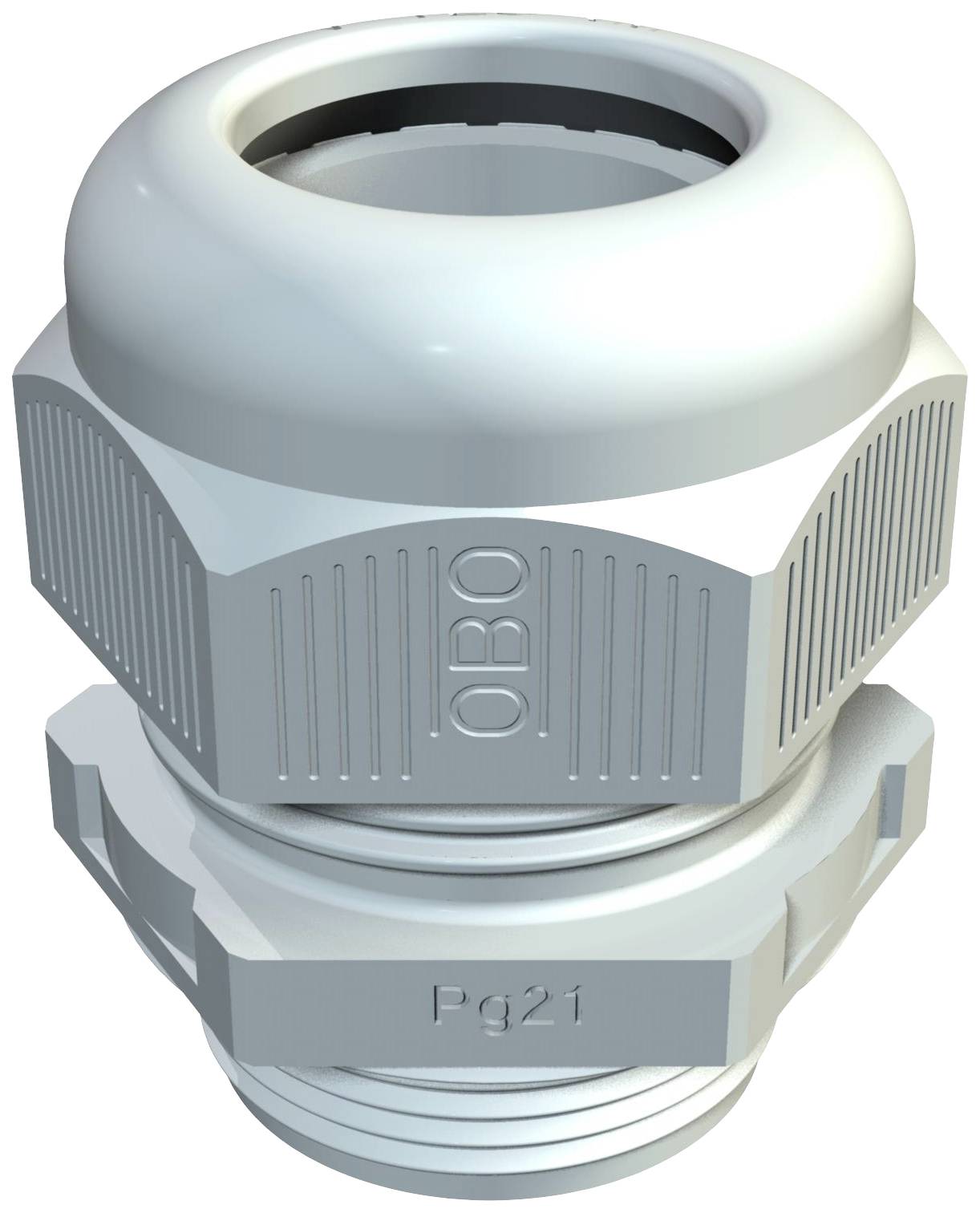

OBO Bettermann 2024764 Cable gland 1.5 mm Plastic, PA Light grey 1 pc(s)
Product type
Cable gland
Type
Straight
Material
Plastic
PA
Clamp Ø
9 mm
Terminal Ø (max.)
18 mm
EAN:
Part number:
Item no:
Technical specifications
- Thread Type: PG
- Thread which large metric/PG: 21
- Suitable for cable diameter: 9. .18 mm
- Untreated surface:
- Glass-fiber reinforced: no
- Impact: no
- Color: light gray
- Bend protection: no
- With nut: no
- Multi-seal insert: no
- Flat cable gland: no
- With strain relief: yes
- Type of seal: sealing ring
- Divisible cable gland: no
- Explosion tested design: no
- For Ex Zone Gas: without
- For Ex zone dust: without
- Product type
Cable gland
- Features
with strain relief
- Factory colour
Light grey
- Internal thread
1.5 mm
- Type
Straight
- Material
Plastic
PA
- Clamp Ø
9 mm
- Terminal Ø (max.)
18 mm
- Thread length
11 mm
- Min. temperature
-20 °C
- Max. temperature
+65 °C
IP68
- Spanner size
33 mm
- Halogen-free
Yes
- Content
1 pc(s)
- Manufacturer part #
2024764
- Type
V-TEC PG21 LGR
Grey
Straight
TRUE
FALSE
7035
Untreated
33 mm
11 mm
TRUE
FALSE
Sealing ring
Polyamide (PA)
-20-65 °C
PG
Plastic
1.41 mm
FALSE
FALSE
FALSE
FALSE
37.5 mm
FALSE
9-18 mm
IP68
None
21
None
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1961328 OBO Bettermann 2024764 Cable gland 1.5 mm Plastic, PA Light grey 1 pc(s)
Description
Cable gland into domed cap design with a large sealing range as well as strain relief and anti-twist protection for high density claims, sealing ring made of chloroprene/nitrile rubber, molded sealing ribs, and therefore no connection thread-sealing ring is required, tested according to VDE 0619
