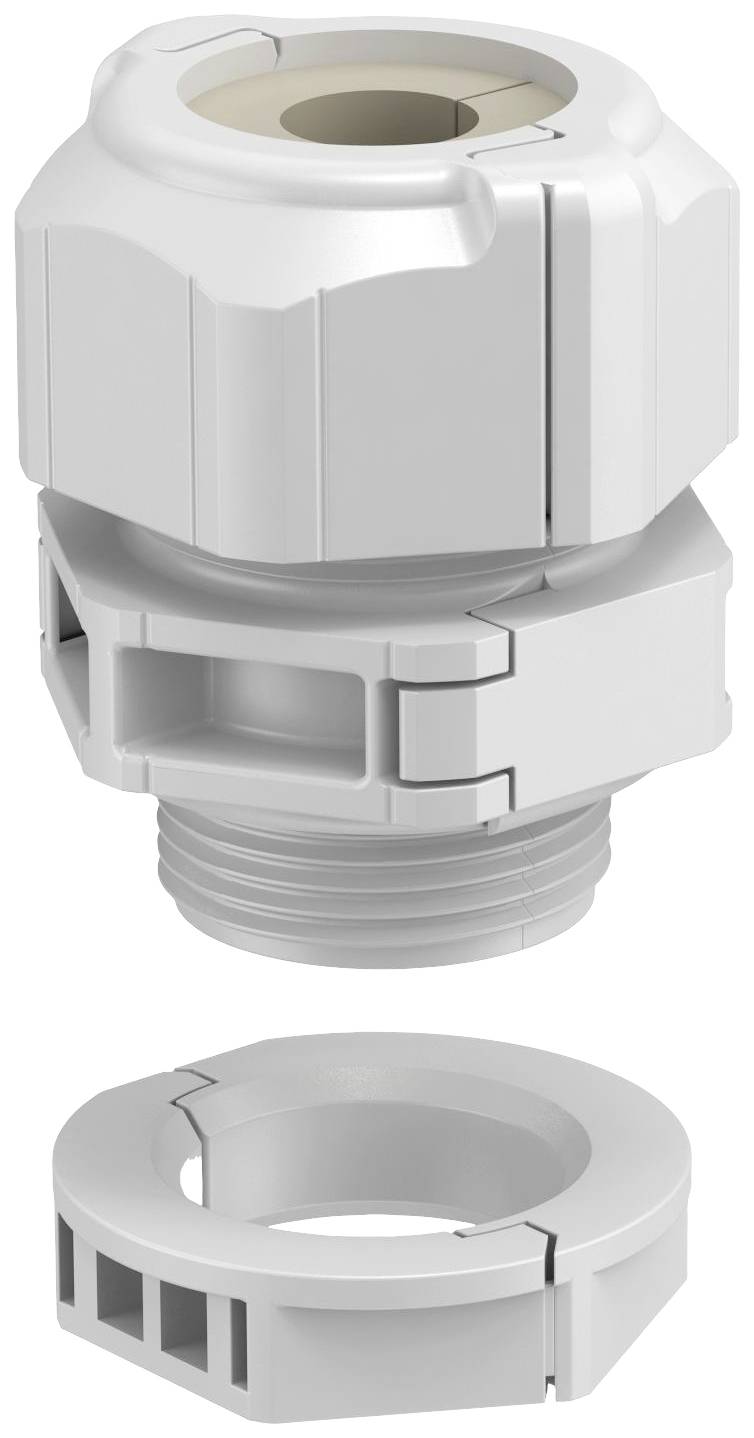

OBO Bettermann 2024912 Cable gland 1.5 mm Plastic Light grey 5 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M25
Type
Straight
Material
Plastic
Clamp Ø
6 mm
Technical specifications
- Metric thread type:
- Thread which large metric/PG: 25
- Suitable for cable diameter 6..9 mm
- Untreated surface:
- Glass-fiber reinforced: no
- Impact-resistant: Yes
- Color: light gray
- Bend protection: no
- With nut: yes
- Multi-seal insert: no
- Flat cable gland: no
- With strain relief: no
- Type of seal: sealing ring
- Divisible cable gland: yes
- Explosion tested design: no
- For Ex Zone Gas: without
- For Ex zone dust: without
- Product type
Cable gland
- Features
with seal
shockproof
compartimentable
with locknut
- Factory colour
Light grey
- External thread
M25
- Internal thread
1.5 mm
- Type
Straight
- Material
Plastic
- Clamp Ø
6 mm
- Terminal Ø (max.)
9 mm
- Thread length
11 mm
- Min. temperature
-20 °C
- Max. temperature
+80 °C
IP67
- Halogen-free
Yes
- Content
5 pc(s)
- Manufacturer part #
2024912
- Type
V-TEC TB25 06-09
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1963981 OBO Bettermann 2024912 Cable gland 1.5 mm Plastic Light grey 5 pc(s)
Description
The gland V-TEC TB ensures like all V-TEC glands a secure sealing cable. The DIVISIBILITY of the cable gland allows easy and fast installation of, for example, pre-assembled cables. A further advantage is the retrofitting of cables in existing installations. Unbeatable as a repair gland; this may without dismantling pre-assembled cable and without interrupting the current production can be installed.
