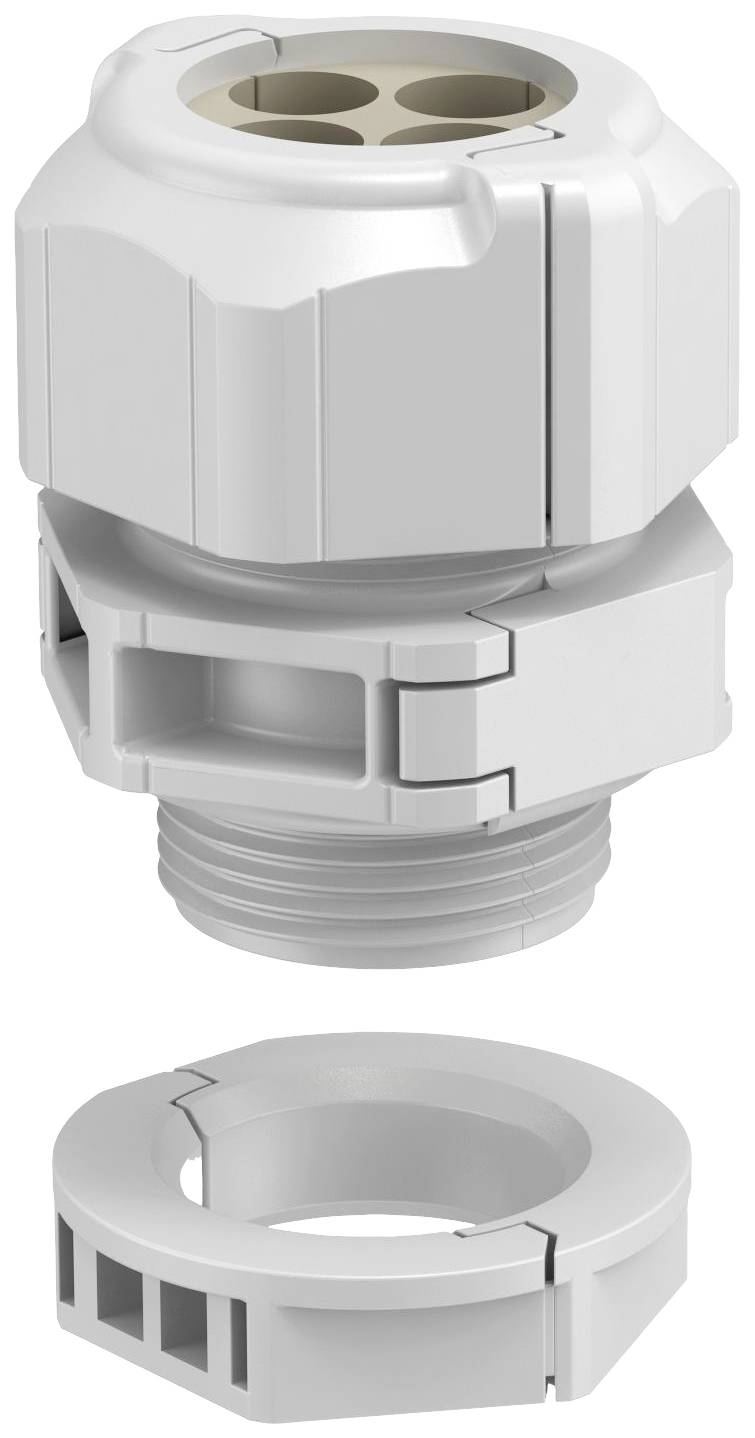

OBO Bettermann 2024931 Cable gland 1.5 mm Plastic 5 pc(s)
Product type
Cable gland
Type
Straight
Material
Plastic
Features
compartimentable
Internal thread
1.5 mm
EAN:
Part number:
Item no:
Technical specifications
- Metric thread type:
- Thread which large metric/PG: 25
- Hexagon Width across corners: 39 mm
- Untreated surface:
- Glass-fiber reinforced: no
- Impact-resistant: Yes
- Bend protection: no
- With nut: yes
- Multi-seal insert: yes
- Flat cable gland: no
- With strain relief: no
- Type of seal: sealing ring
- Divisible cable gland: yes
- Explosion tested design: no
- For Ex Zone Gas: without
- For Ex zone dust: without
- Product type
Cable gland
- Features
compartimentable
- Internal thread
1.5 mm
- Type
Straight
- Material
Plastic
- Thread length
11 mm
- Min. temperature
-20 °C
- Max. temperature
+80 °C
IP67
- Spanner size
36 mm
- Dimensions
39 mm
- Halogen-free
Yes
- Content
5 pc(s)
- Dim
39
- Manufacturer part #
2024931
- Type
V-TEC TB25 4x8
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1958364 OBO Bettermann 2024931 Cable gland 1.5 mm Plastic 5 pc(s)
Description
The gland V-TEC TB ensures like all V-TEC glands a secure sealing cable. The DIVISIBILITY of the cable gland allows easy and fast installation of, for example, pre-assembled cables. A further advantage is the retrofitting of cables in existing installations. Unbeatable as a repair gland; this may without dismantling pre-assembled cable and without interrupting the current production can be installed.
