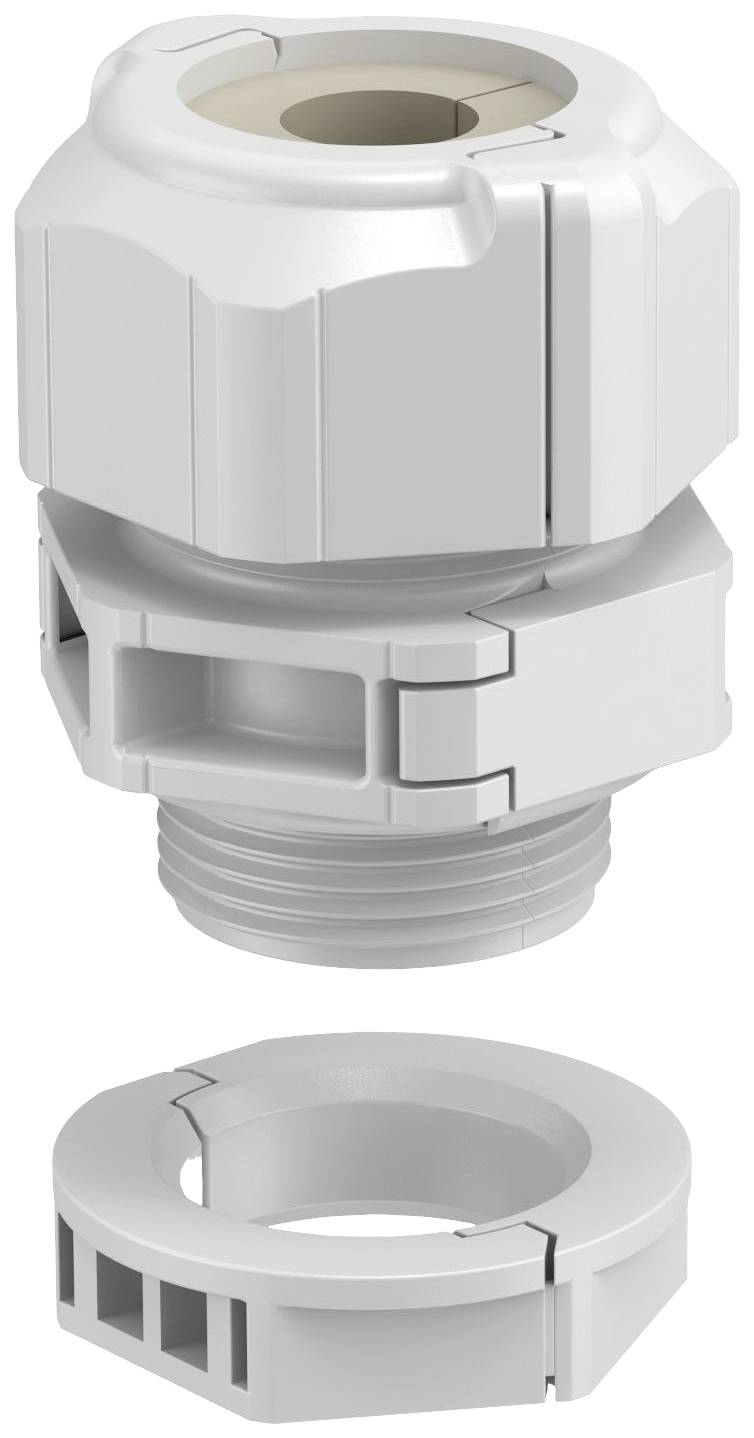

OBO Bettermann 2024980 Cable gland 1.5 mm Plastic Light grey 1 pc(s)
Product type
Cable gland
Type
straight
Material
Plastic
Clamp Ø
20 mm
Terminal Ø (max.)
25 mm
EAN:
Part number:
Item no:
Technical specifications
- Thread type: Metric
- Thread size metric/PG: 32
- Suitable for cable diameter 20..25 mm
- Surface: Untreated
- Glass-fiber reinforced: No.
- Impact-resistant: Yes
- Colour: Light gray
- Bend protection: No.
- With locknut: Yes
- Multiple sealing application: No.
- Flat cable screwing: No.
- With strain relief: No.
- Type of seal: Sealing ring
- Separable screw connection: Yes
- Explosion-tested version: No.
- For Ex-zone gas: Without
- For Ex-Zone Dust: Without
- Product type
Cable gland
- Features
compartimentable
- Factory colour
Light grey
- Internal thread
1.5 mm
- Type
straight
- Material
Plastic
- Clamp Ø
20 mm
- Terminal Ø (max.)
25 mm
- Thread length
14 mm
- Min. temperature
-20 °C
- Max. temperature
+80 °C
IP67
- Halogen-free
Yes
- Content
1 pc(s)
- Manufacturer part #
2024980
- Type
V-TEC TB32 20-25
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3332411 OBO Bettermann 2024980 Cable gland 1.5 mm Plastic Light grey 1 pc(s)
Description
Like all V-TEC screw-joints, the V-TEC TB cable gland ensures a secure seal of the cable. The divisibility of the cable gland allows easy and fast installation of, for example, pre-assembled cables. Another advantage is the retrofitting of cables with existing installations. Unbeatable as a repair fitting, thus pre-assembled cables can be installed without disassembling and without interrupting production.
