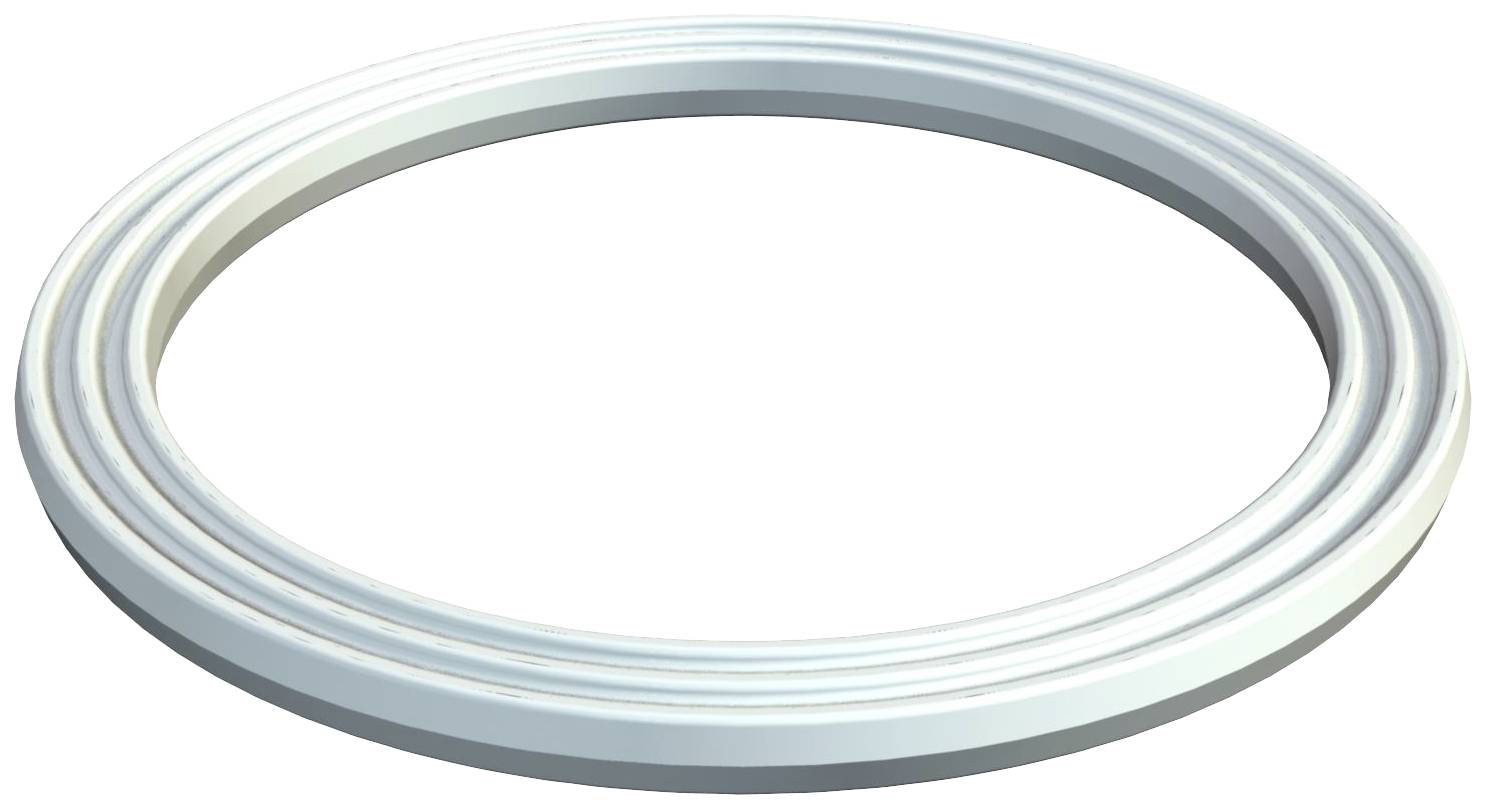

OBO Bettermann 2030024 107 F M40 PE Sealing ring Plastic 1 pc(s)
Size
M40
Material
Plastic
Outside Ø
49.1 mm
Type
Flat sealing ring
Content
1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- 40 mm internal diameter
- Thickness: 1.7 mm
- Suitable for thread dimension (metric): 40
- Number of penetrations: 1
- Outside Ø
49.1 mm
- Size
M40
- Material
Plastic
- Type
Flat sealing ring
- Content
1 pc(s)
- Dim
40
- Dimensions
40 mm
- Manufacturer part #
2030024
- Type
107 F M40 PE
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3332464 OBO Bettermann 2030024 107 F M40 PE Sealing ring Plastic 1 pc(s)
Description
Connection thread-sealing ring suitable for all screwed cable glands made of plastic with metric connection thread according to DIN EN 60423 or ISO 68; the inner diameter of the sealing rings are designed in such a way that they can be pre-assembled without loss.
