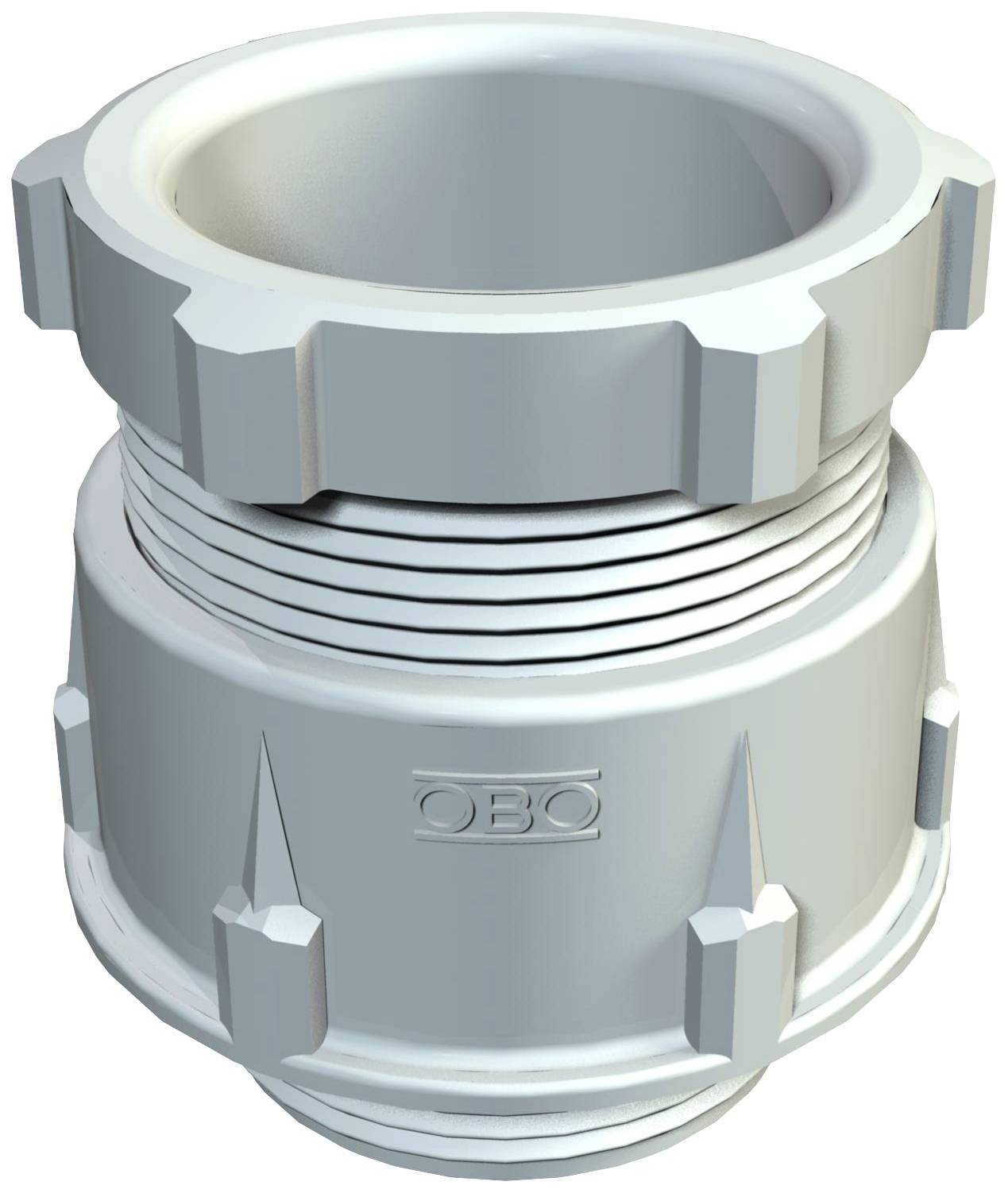

OBO Bettermann 2035332 Cable gland Plastic, Polystyrene Light grey 1 pc(s)
Product type
Cable gland
External thread
M20
Type
Straight
Material
Plastic
Polystyrene
Clamp Ø
9 mm
EAN:
Part number:
Item no:
Technical specifications
- Metric thread type:
- Thread which large metric/PG: 20
- Suitable for cable diameter: 9..13 mm
- Untreated surface:
- Glass-fiber reinforced: no
- Impact-resistant: Yes
- Color: light gray
- Bend protection: no
- With nut: no
- Multi-seal insert: no
- With strain relief: no
- Type of seal: sealing ring
- Divisible cable gland: no
- Explosion tested design: no
- For Ex Zone Gas: without
- For Ex zone dust: without
- Product type
Cable gland
- Features
shockproof
- Factory colour
Light grey
- External thread
M20
- Type
Straight
- Material
Plastic
Polystyrene
- Clamp Ø
9 mm
- Terminal Ø (max.)
13 mm
- Thread length
9 mm
IP65
- Halogen-free
Yes
- Content
1 pc(s)
- Manufacturer part #
2035332
- Type
106 M 20 PS
Grey
Straight
TRUE
TRUE
7035
Untreated
9 mm
FALSE
FALSE
Sealing ring
Polystyrene
Metric
Plastic
FALSE
FALSE
FALSE
FALSE
9-13 mm
IP65
None
20
None
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1956009 OBO Bettermann 2035332 Cable gland Plastic, Polystyrene Light grey 1 pc(s)
Description
Standard screwed cable gland, Form A according to DIN 46320 with a simple sealing ring from NR/SBR with metric connection thread according to IEC 423.
