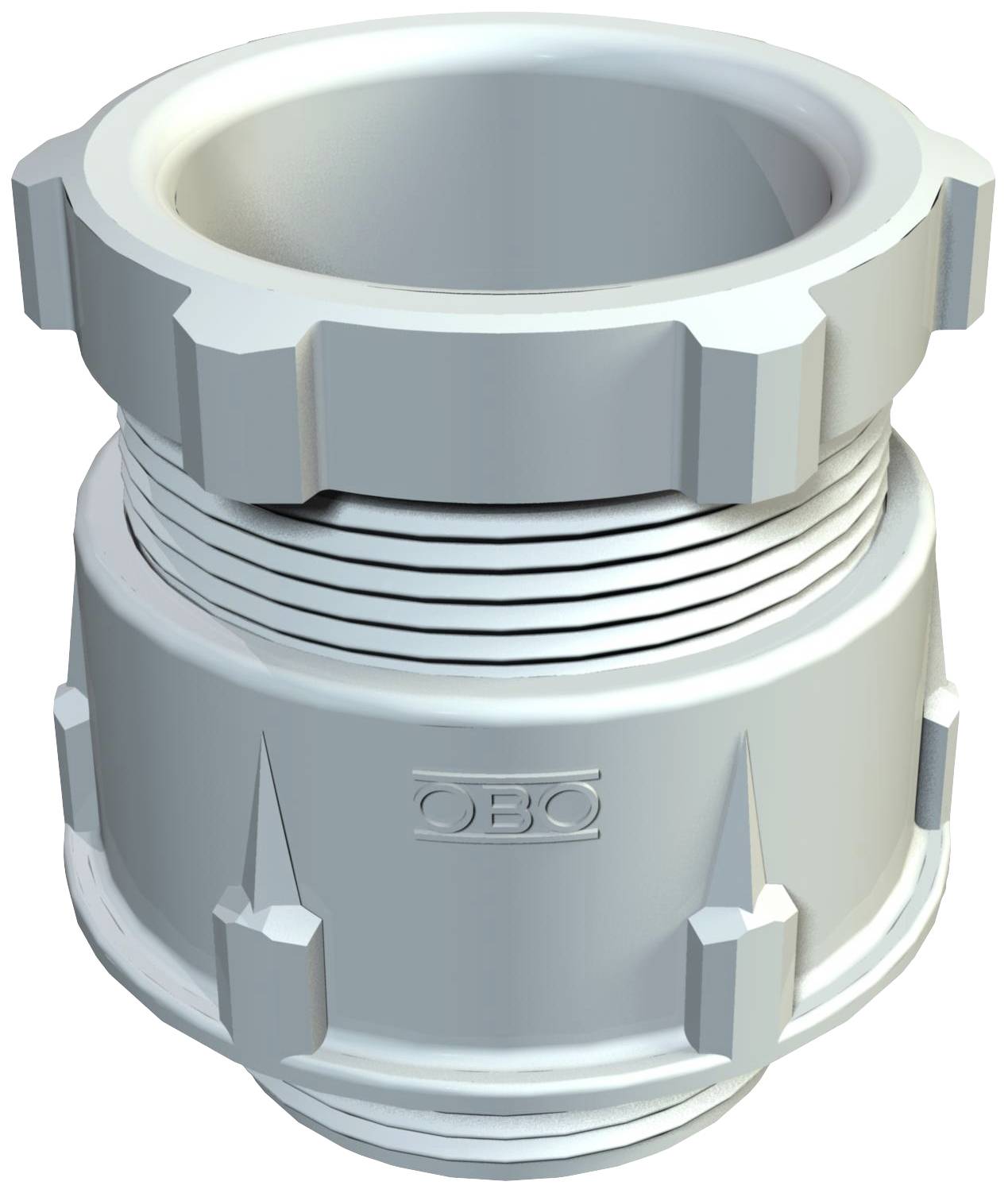

OBO Bettermann 2035359 Cable gland Plastic, Polystyrene Light grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M32
Type
Straight
Material
Plastic
Polystyrene
Clamp Ø
18 mm
Technical specifications
- Metric thread type:
- Thread which large metric/PG: 32
- Suitable for cable diameter: 18 .25 mm
- Untreated surface:
- Glass-fiber reinforced: no
- Impact-resistant: Yes
- Color: light gray
- Bend protection: no
- With nut: no
- Multi-seal insert: no
- With strain relief: no
- Type of seal: sealing ring
- Divisible cable gland: no
- Explosion tested design: no
- For Ex Zone Gas: without
- For Ex zone dust: without
- Product type
Cable gland
- Features
shockproof
- Factory colour
Light grey
- External thread
M32
- Type
Straight
- Material
Plastic
Polystyrene
- Clamp Ø
18 mm
- Terminal Ø (max.)
25 mm
- Thread length
11 mm
IP65
- Halogen-free
Yes
- Content
1 pc(s)
- Manufacturer part #
2035359
- Type
106 M 32 PS
Grey
Straight
TRUE
TRUE
7035
Untreated
11 mm
FALSE
FALSE
Sealing ring
Polystyrene
Metric
Plastic
FALSE
FALSE
FALSE
FALSE
18-25 mm
IP65
None
32
None
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1960081 OBO Bettermann 2035359 Cable gland Plastic, Polystyrene Light grey 1 pc(s)
Description
Standard screwed cable gland, Form A according to DIN 46320 with a simple sealing ring from NR/SBR with metric connection thread according to IEC 423.
