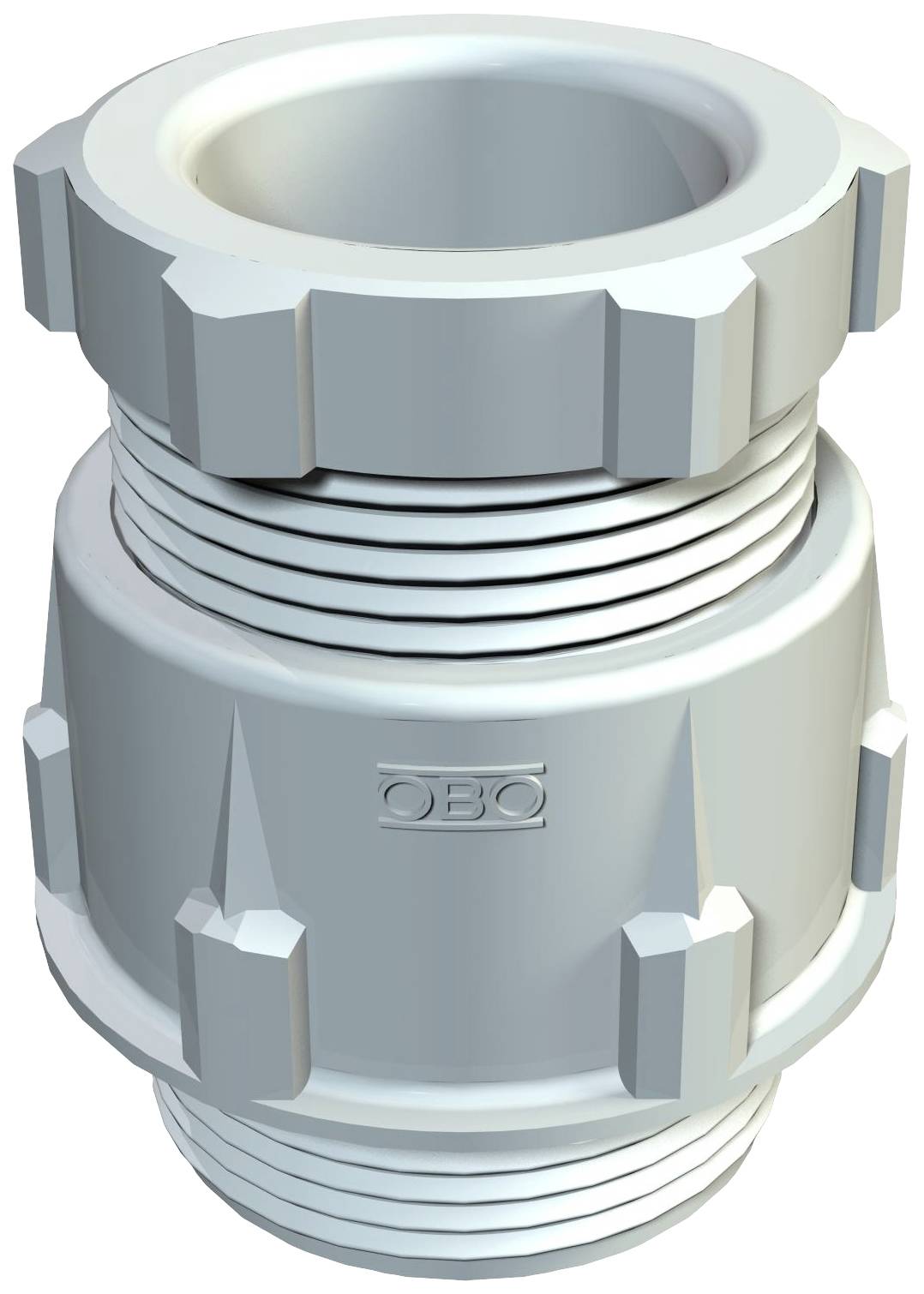

OBO Bettermann 2036118 Cable gland Plastic Light grey 50 pc(s)
Product type
Cable gland
Type
Straight
Material
Plastic
Clamp Ø
5.5 mm
Terminal Ø (max.)
10 mm
EAN:
Part number:
Item no:
Technical specifications
- Thread Type: PG
- Thread which large metric/PG: 11
- Suitable for cable diameter: 5.5 to 10 mm
- Untreated surface:
- Glass-fiber reinforced: no
- Impact: no
- Color: light gray
- Bend protection: no
- With nut: no
- Multi-seal insert: no
- With strain relief: no
- Type of seal: sealing ring
- Divisible cable gland: no
- Explosion tested design: no
- For Ex Zone Gas: without
- For Ex zone dust: without
- Product type
Cable gland
- Features
with seal
- Factory colour
Light grey
- Type
Straight
- Material
Plastic
- Clamp Ø
5.5 mm
- Terminal Ø (max.)
10 mm
- Thread length
8 mm
IP65
- Halogen-free
Yes
- Content
50 pc(s)
- Manufacturer part #
2036118
- Type
106 PG11
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1962690 OBO Bettermann 2036118 Cable gland Plastic Light grey 50 pc(s)
Description
Standard screwed cable gland, Form A according to DIN 46320 with a simple sealing ring from NR/SBR. PG threads according to DIN 40430. Protection: with connecting thread sealing ring IP65, without connecting thread sealing ring IP54. Note: Because of the risk of cable glands made of polystirene stress-crack formation only moderately tighten!
