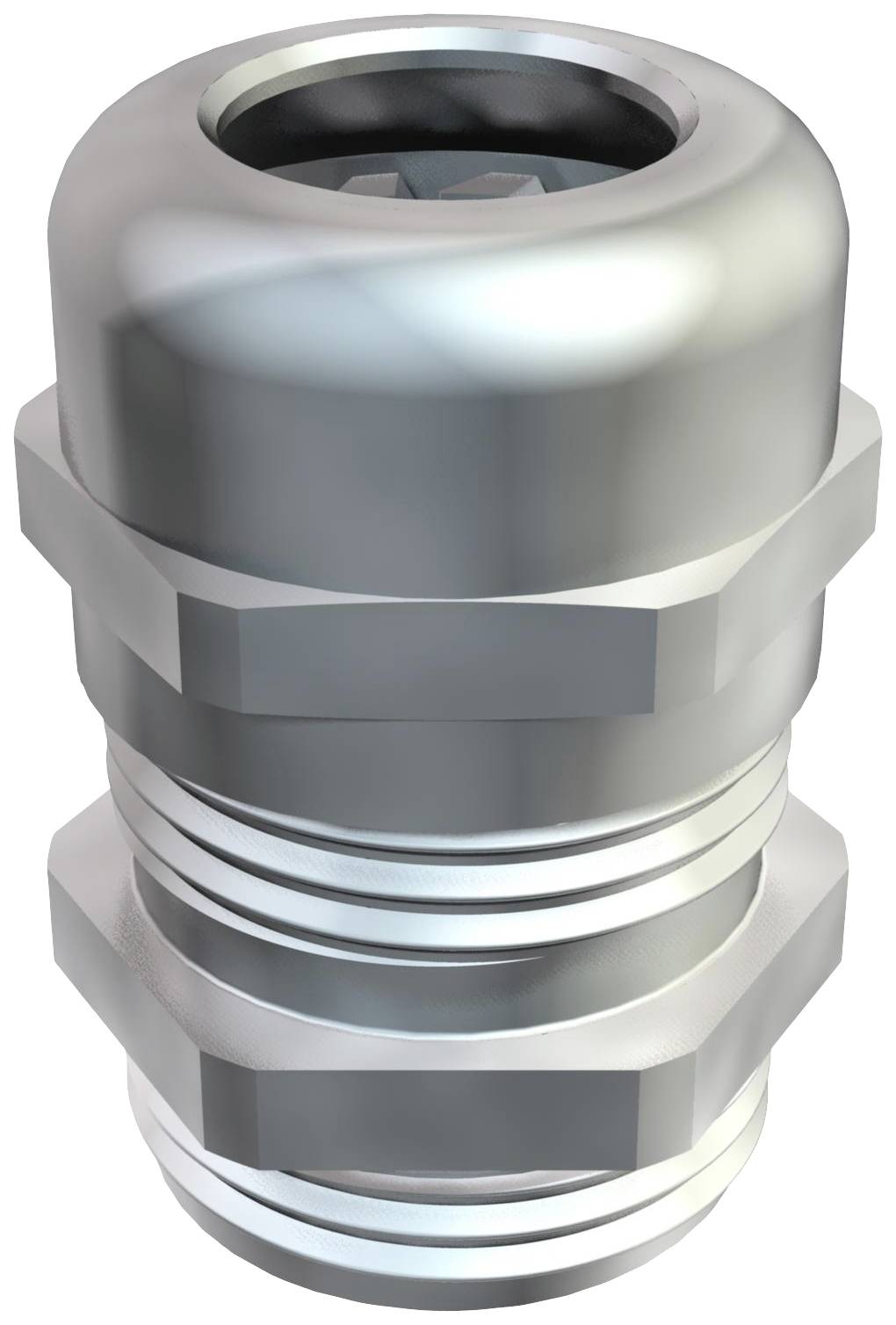

OBO Bettermann 2085704 Cable gland Metal, Brass 5 pc(s)
Product type
Cable gland
External thread
PG48
Type
Straight
Material
Metal
Brass
Clamp Ø
30 mm
EAN:
Part number:
Item no:

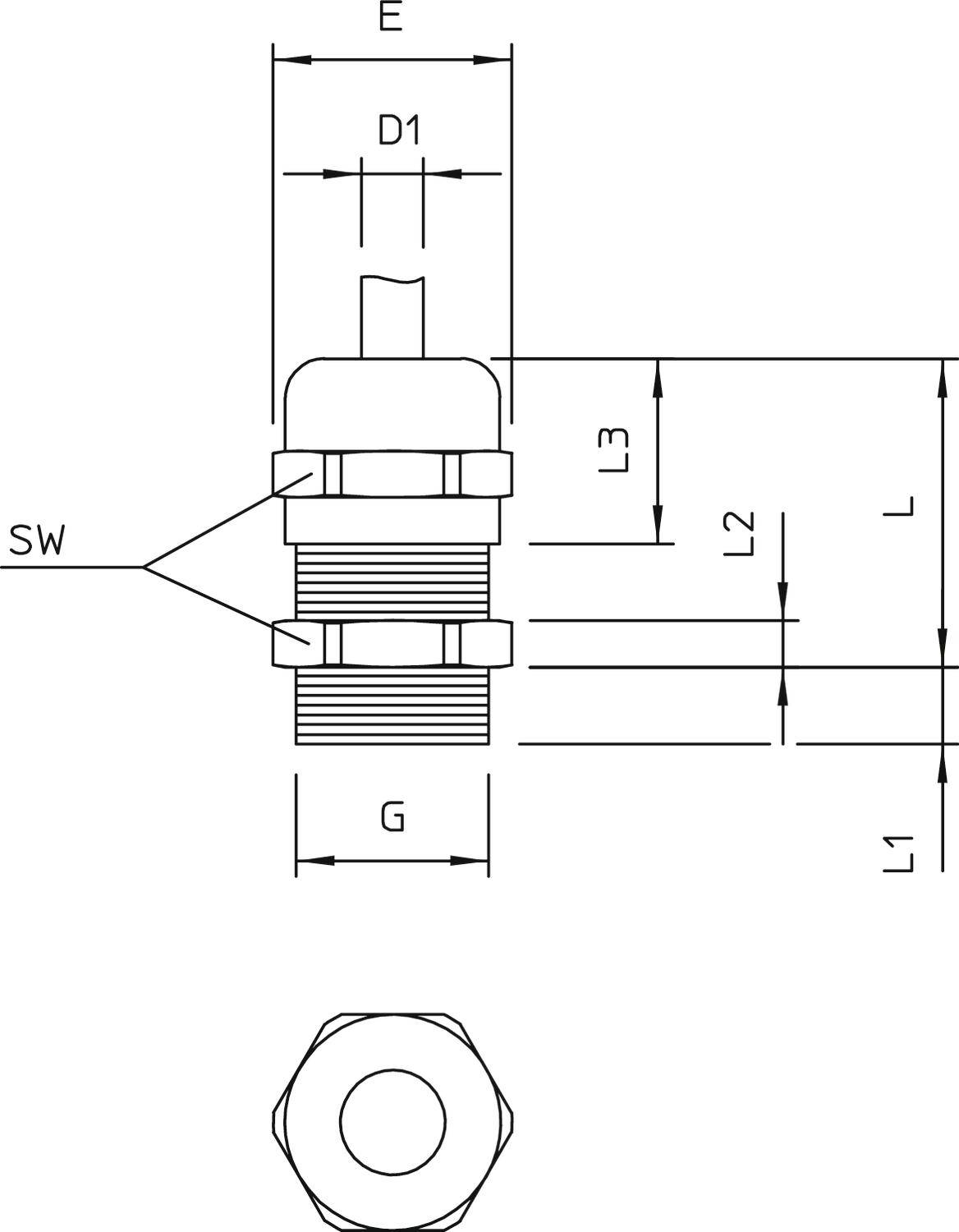

Technical specifications
- Thread Type: PG
- Thread which large metric/PG: 48
- Hexagon Width across corners 69 mm
- Suitable for cable diameter: 30 .44 mm
- Surface: nickel-plated
- Glass-fiber reinforced: no
- Impact: no
- Color: Other
- Bend protection: no
- With nut: no
- Multi-seal insert: no
- Flat cable gland: no
- With strain relief: yes
- Type of seal: sealing ring
- Divisible cable gland: no
- Explosion tested design: no
- For Ex Zone Gas: without
- For Ex zone dust: without
- Product type
Cable gland
- Features
with strain relief
- External thread
PG48
- Type
Straight
- Material
Metal
Brass
- Clamp Ø
30 mm
- Terminal Ø (max.)
44 mm
- Thread length
10 mm
- Min. temperature
-20 °C
- Max. temperature
+65 °C
IP68
- Spanner size
64 mm
- Halogen-free
No
- Content
5 pc(s)
- Manufacturer part #
2085704
- Type
V-TEC PG48 MS
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1962684 OBO Bettermann 2085704 Cable gland Metal, Brass 5 pc(s)
Description
Cable gland into domed cap design with a large sealing range as well as strain relief and twist-protection for high density with PG threads according to DIN 40430. Terminal insert made of polyamide, sealing ring from Chloroprene-Nitrilkautschuk, with pre-assembled O-ring on the connection thread. Protection class IP68 with 5 bar/1 h, tested according to VDE 0619 connection thread length normal, in accordance with DIN 46320. Prices volume DEL-listing.
