OBO Bettermann 2086060 Cable gland Metal 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
Type
Straight
Material
Metal
Clamp Ø
32 mm
Terminal Ø (max.)
42 mm
Technical specifications
- Metric thread type:
- Thread which large metric/PG: 63
- Suitable for cable diameter: 32..42 mm
- Surface: nickel-plated
- Glass-fiber reinforced: no
- Impact: no
- Color: Other
- Bend protection: no
- With nut: no
- Multi-seal insert: no
- Flat cable gland: no
- With strain relief: yes
- Type of seal: sealing ring
- Product type
Cable gland
- Features
with strain relief
- Factory colour
Multi-coloured
- Type
Straight
- Material
Metal
- Clamp Ø
32 mm
- Terminal Ø (max.)
42 mm
- Thread length
10 mm
- Min. temperature
-20 °C
- Max. temperature
+100 °C
IP68
- Spanner size
65 mm
- Halogen-free
No
- Content
1 pc(s)
- Manufacturer part #
2086060
- Type
V-TEC VM63 MS
Other
Straight
FALSE
FALSE
Nickel-plated
65 mm
10 mm
TRUE
FALSE
Sealing ring
Brass
-20-100 °C
Metric
Metal
FALSE
FALSE
FALSE
FALSE
70 mm
32-42 mm
IP68
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1962880 OBO Bettermann 2086060 Cable gland Metal 1 pc(s)
Description

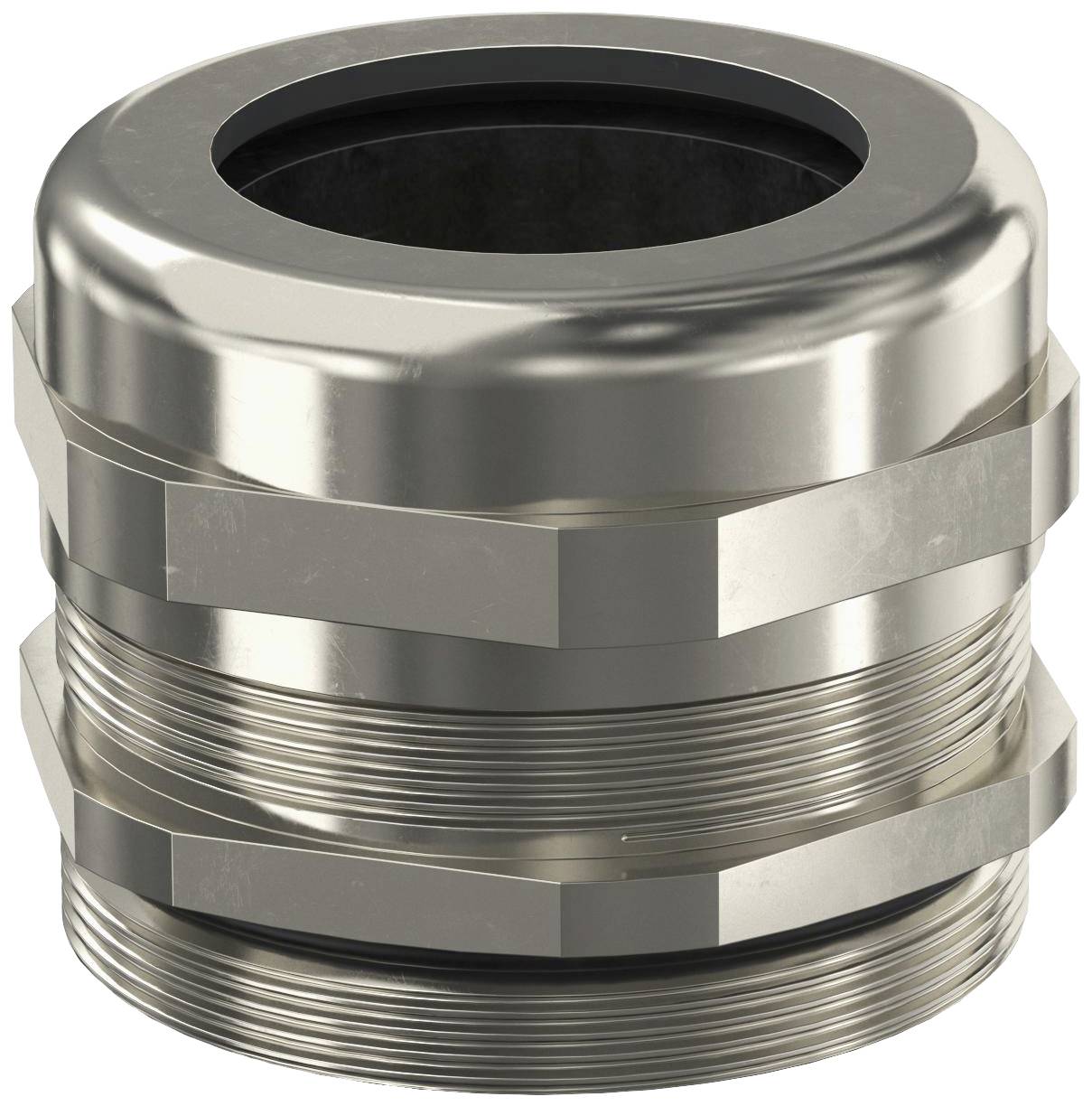

Robust cable gland with metric connection thread according to IEC 423 in domed cap design for high density requirements. Strain relief, anti-twist lock and tightness over the entire range. Sealing ring made of chloroprene rubber. Terminal insert made of polyamide. With pre-mounted sealing ring on the connection thread, VDE-tested according to DIN EN 50262, protection class IP68 with 5 bar/1 h, temperature range -20 ÷ 100°C. Prices volume DEL-listing.
