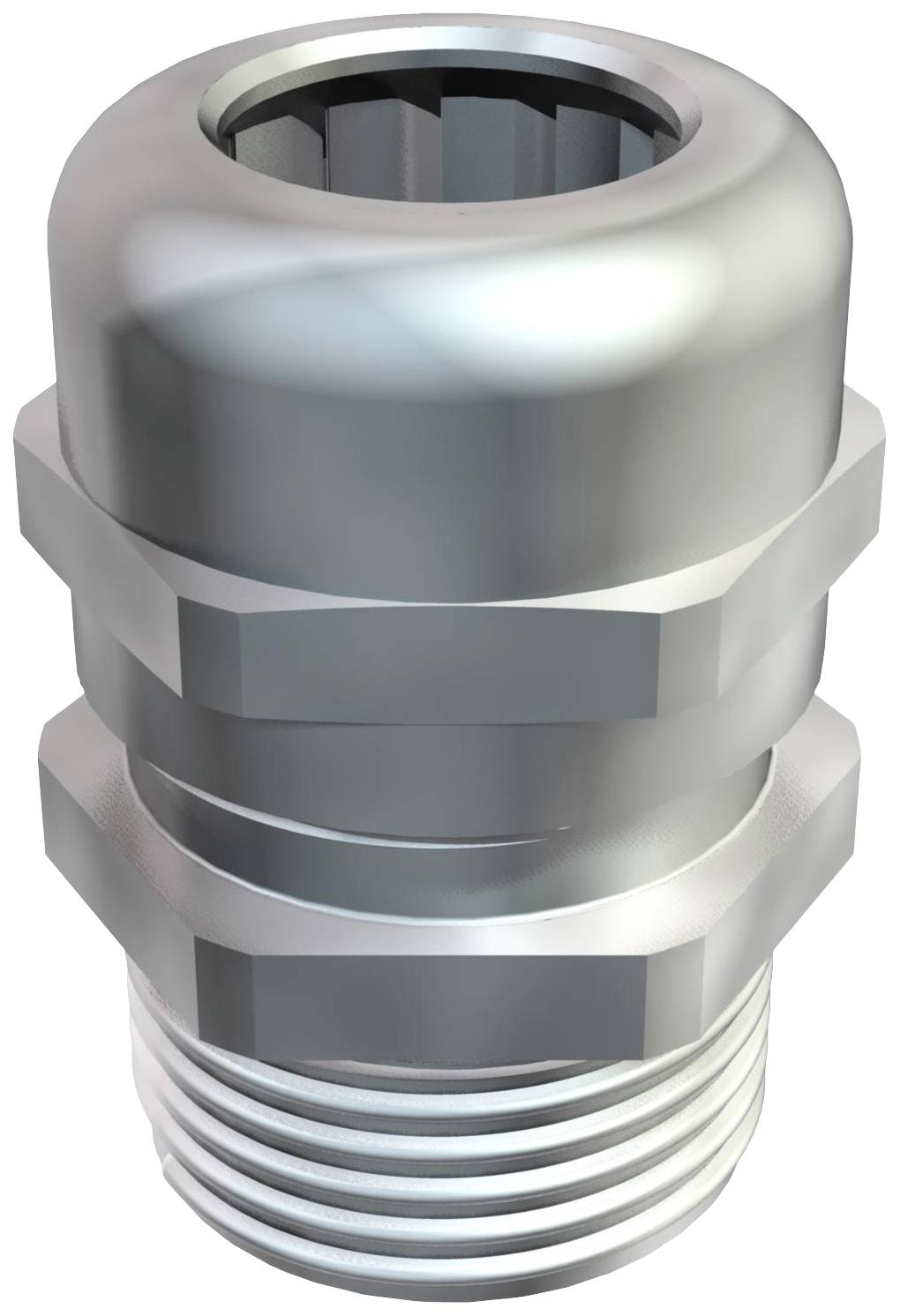

OBO Bettermann 2086117 Cable gland Metal 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M16
Type
straight
Material
Metal
Clamp Ø
5 mm
Technical specifications
- Thread type: Metric
- Thread size metric/PG: 16
- Suitable for cable diameter 5..9 mm
- Surface: Nickel-plated
- Glass-fiber reinforced: No.
- Shock-resistant: No.
- Colour: Other
- Bend protection: No.
- With locknut: No.
- Multiple sealing application: No.
- Flat cable screwing: No.
- With strain relief: Yes
- Type of seal: Sealing ring
- Product type
Cable gland
- Features
with strain relief
- External thread
M16
- Type
straight
- Material
Metal
- Clamp Ø
5 mm
- Terminal Ø (max.)
9 mm
- Thread length
10 mm
- Min. temperature
-20 °C
- Max. temperature
+100 °C
IP68
- Spanner size
17 mm
- Halogen-free
No
- Content
1 pc(s)
- Manufacturer part #
2086117
- Type
V-TEC VM LM16 MS
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3332527 OBO Bettermann 2086117 Cable gland Metal 1 pc(s)
Description
Robust cable gland with metric connection thread according to IEC 423 in cap nut design for high density demands. Strain relief, twist protection and leak-proof throughout the entire clamping range. For thicker case wall thicknesses in conjunction with a locknut. Sealing ring made from chloroprene rubber. Polyamide terminal insert. With pre-assembled sealing ring on the connection thread, VDE-tested according to DIN EN 50262, protection class IP68 with 5 bar/1 h. With long connecting thread. Prices according to the DEL quotation.
