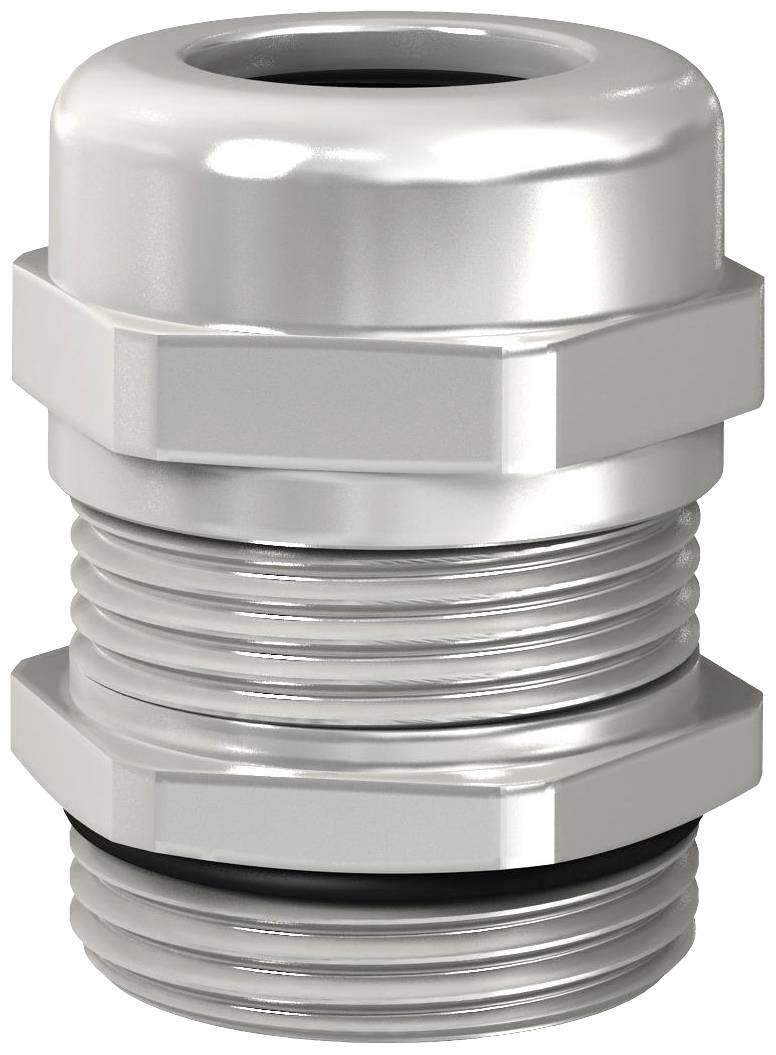

OBO Bettermann 2086207 Cable gland Metal 50 pc(s)
Product type
Cable gland
Type
Straight
Material
Metal
Clamp Ø
5 mm
Terminal Ø (max.)
9 mm
EAN:
Part number:
Item no:
Technical specifications
- Metric thread type:
- Suitable for cable diameter: 5..9 mm
- Surface: nickel-plated
- Glass-fiber reinforced: no
- Impact: no
- Color: Other
- Bend protection: no
- With nut: no
- Multi-seal insert: no
- Flat cable gland: no
- With strain relief: yes
- Type of seal: sealing ring
- For Ex Zone Gas: without
- Product type
Cable gland
- Features
EMC
- Type
Straight
- Material
Metal
- Clamp Ø
5 mm
- Terminal Ø (max.)
9 mm
- Thread length
5 mm
- Min. temperature
-20 °C
- Max. temperature
+100 °C
IP68
- Spanner size
17 mm
- Halogen-free
No
- Content
50 pc(s)
- Manufacturer part #
2086207
- Type
V-TEC VM16 EMV
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1966726 OBO Bettermann 2086207 Cable gland Metal 50 pc(s)
Description
Robust EMC cable gland with metric connection thread according to IEC 423 in domed cap design for high density requirements. Strain relief, anti-twist lock and tightness over the entire range. Terminal insert made of polyamide. With pre-O-sealing ring on the connection thread, VDE-tested according to DIN EN 50262, protection class IP68 with 5 bar/1 h. Prices volume DEL-listing.
