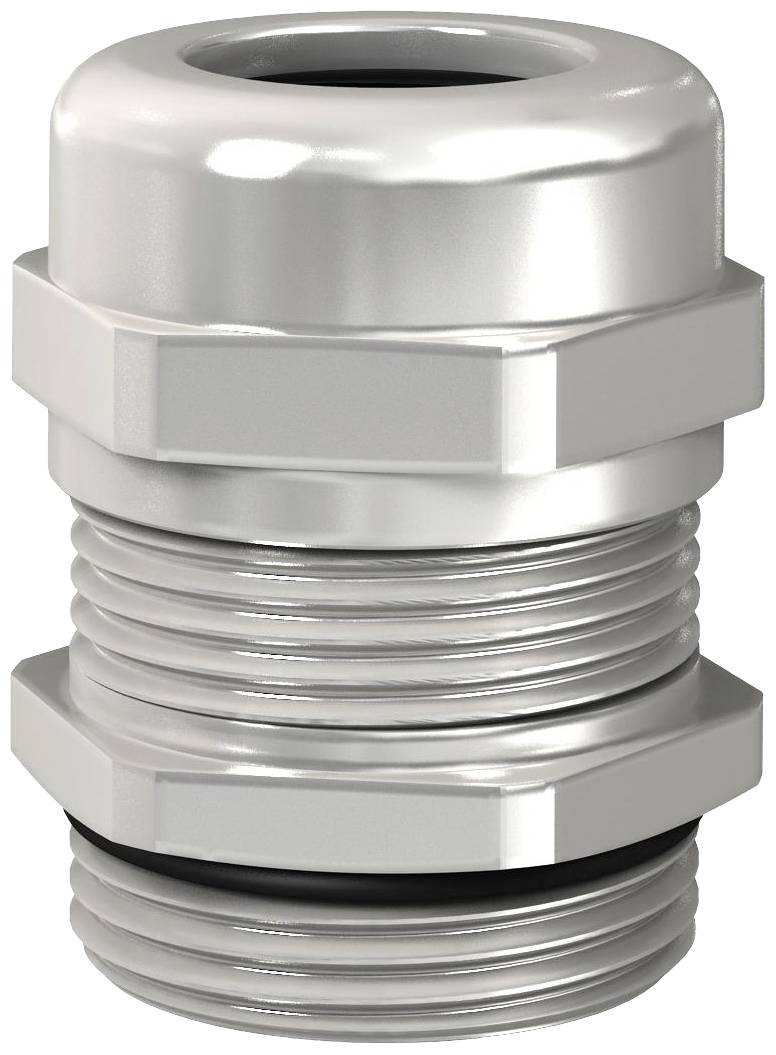

OBO Bettermann 2086223 Cable gland Metal 5 pc(s)
Product type
Cable gland
Type
Straight
Material
Metal
Clamp Ø
19 mm
Terminal Ø (max.)
27 mm
EAN:
Part number:
Item no:
Technical specifications
- Metric thread type:
- Suitable for cable diameter: 19 .27 mm
- Surface: nickel-plated
- Glass-fiber reinforced: no
- Impact: no
- Color: Other
- Bend protection: no
- With nut: no
- Multi-seal insert: no
- Flat cable gland: no
- With strain relief: yes
- Type of seal: sealing ring
- For Ex Zone Gas: without
- Product type
Cable gland
- Features
EMC
- Type
Straight
- Material
Metal
- Clamp Ø
19 mm
- Terminal Ø (max.)
27 mm
- Thread length
8 mm
- Min. temperature
-20 °C
- Max. temperature
+100 °C
IP68
- Spanner size
43 mm
- Halogen-free
No
- Content
5 pc(s)
- Manufacturer part #
2086223
- Type
V-TEC VM40 EMV
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1965388 OBO Bettermann 2086223 Cable gland Metal 5 pc(s)
Description
Robust EMC cable gland with metric connection thread according to IEC 423 in domed cap design for high density requirements. Strain relief, anti-twist lock and tightness over the entire range. Terminal insert made of polyamide. With pre-O-sealing ring on the connection thread, VDE-tested according to DIN EN 50262, protection class IP68 with 5 bar/1 h. Prices volume DEL-listing.
