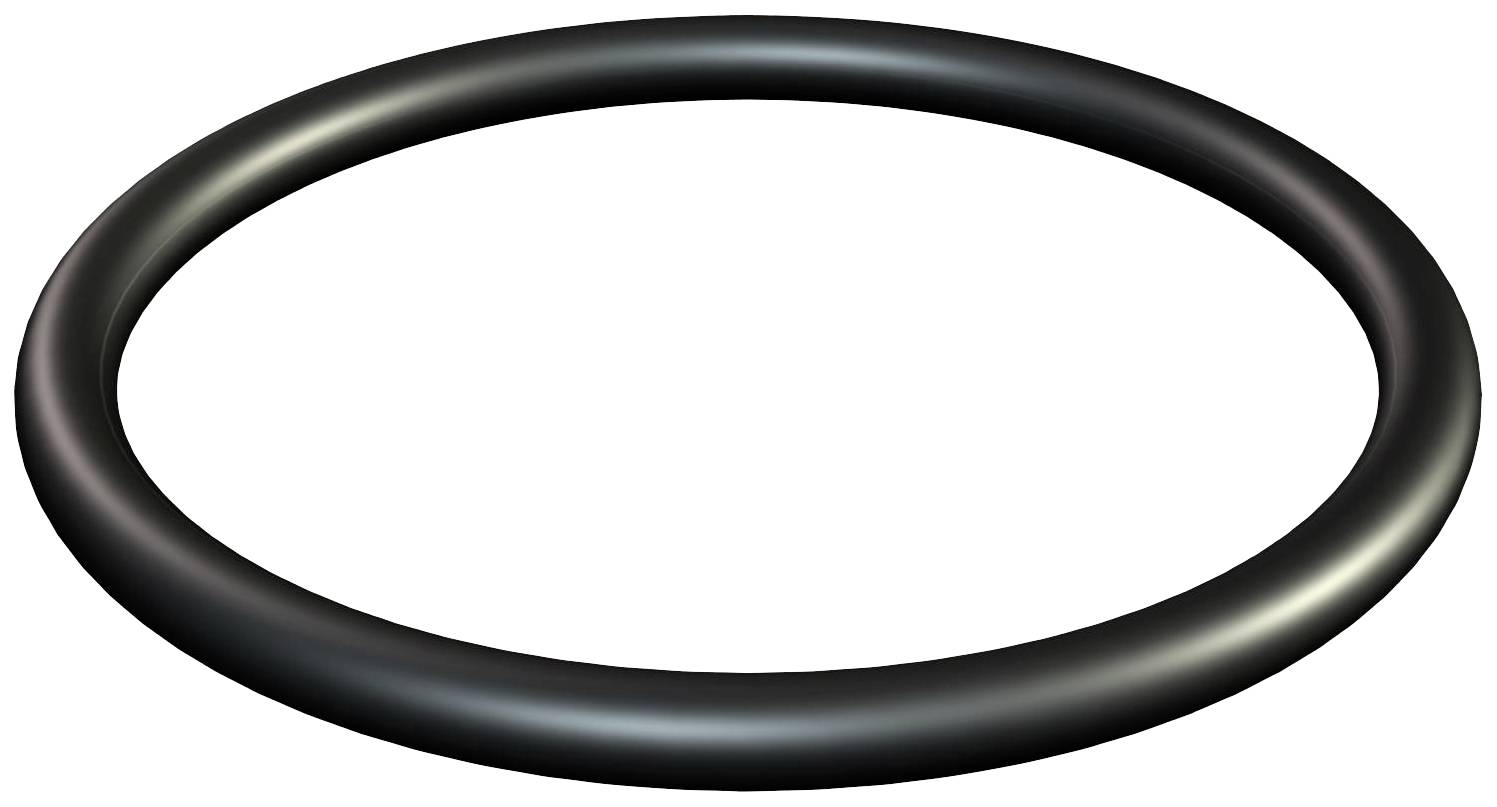

OBO Bettermann 2088835 171 PG13.5 Sealing ring Rubber 1 pc(s)
Size
PG13.5
Material
Rubber
Features
with O-ring
Outside Ø
19.5 mm
Content
1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Type O ring
- 18 mm internal diameter
- Thickness: 1.5 mm
- Suitable for thread dimension PG: 13.5
- Number of penetrations: 1
- Features
with O-ring
- Outside Ø
19.5 mm
- Size
PG13.5
- Material
Rubber
- Content
1 pc(s)
- Dim
18
- Dimensions
18 mm
- Manufacturer part #
2088835
- Type
171 PG13.5
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3332546 OBO Bettermann 2088835 171 PG13.5 Sealing ring Rubber 1 pc(s)
Description
O-sealing rings, suitable as connecting thread sealing rings for all screwed cable glands made of plastic and brass with PG connecting threads according to DIN EN 60423 or ISO 68. The rings can be pre-assembled in such a way that they cannot be lost.
