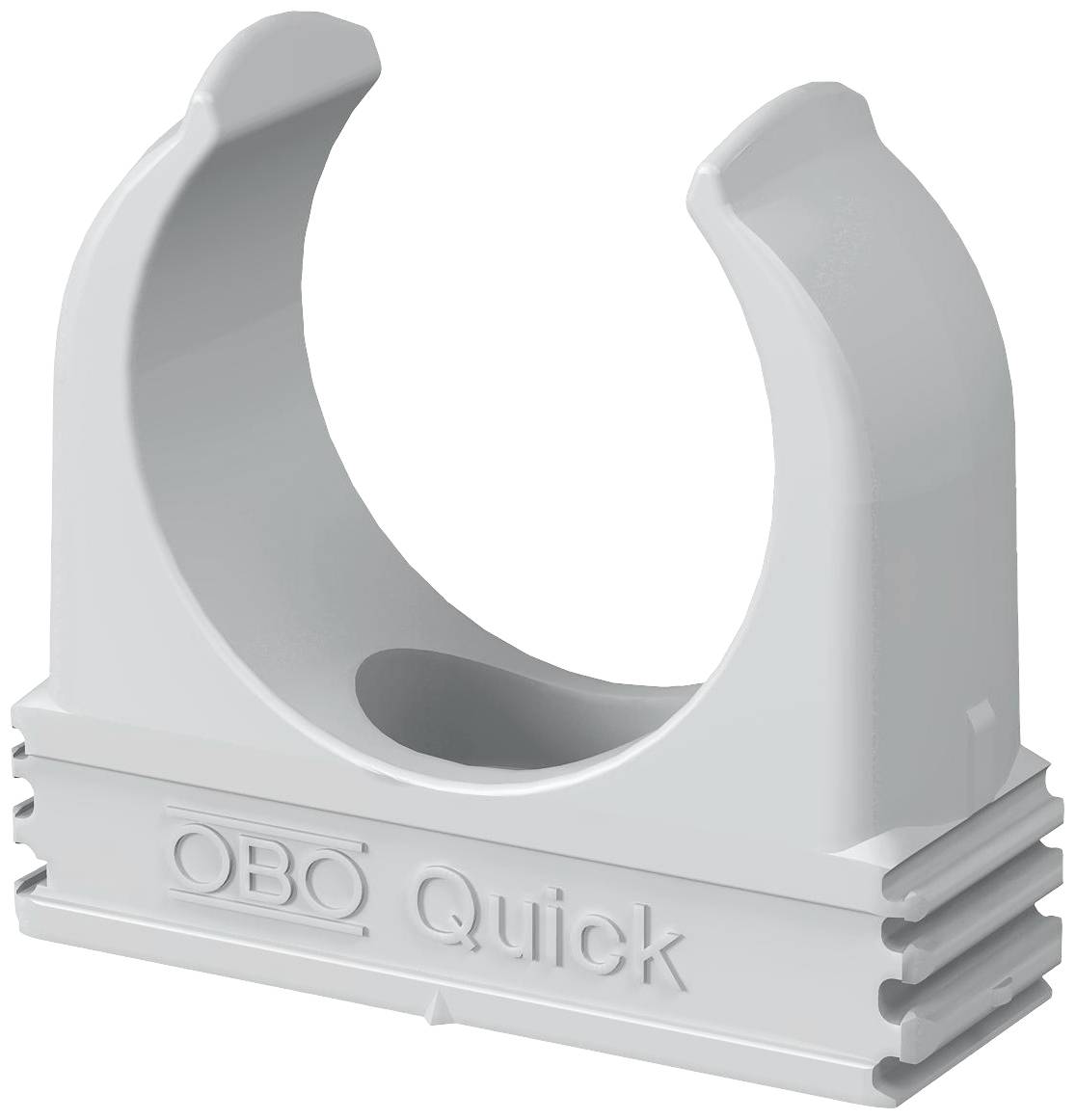

OBO Bettermann 2149040 Pipe clamp 20 pc(s) Grey
EAN:
Part number:
Item no:
Technical specifications
- Suitable for pipe diameter = 63. .63 mm
- Closed = No
- Material = Plastic
- Can be stacked end-to-end = Yes
- Max. The number of tubes = 1
- Mounting type = Screw Hole
- With Inlay = No
- Color = gray
- Product type
Pipe clamp
- Content
20 pc(s)
- Factory colour
Grey
- Material
Plastic
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1964122 OBO Bettermann 2149040 Pipe clamp 20 pc(s) Grey
Description
For all metric steel armoured conduits, as well as light and heavy metric insulating tube. Suitable for input of the quick pipe. Tube centering aids for optimum bringing in the tube and twisting the clamp into the correct position. Universal mounting option; can be connected in series with the multi-quick and star quick clamp. Long hole for lateral alignment for installation using wood screws or steel plug
