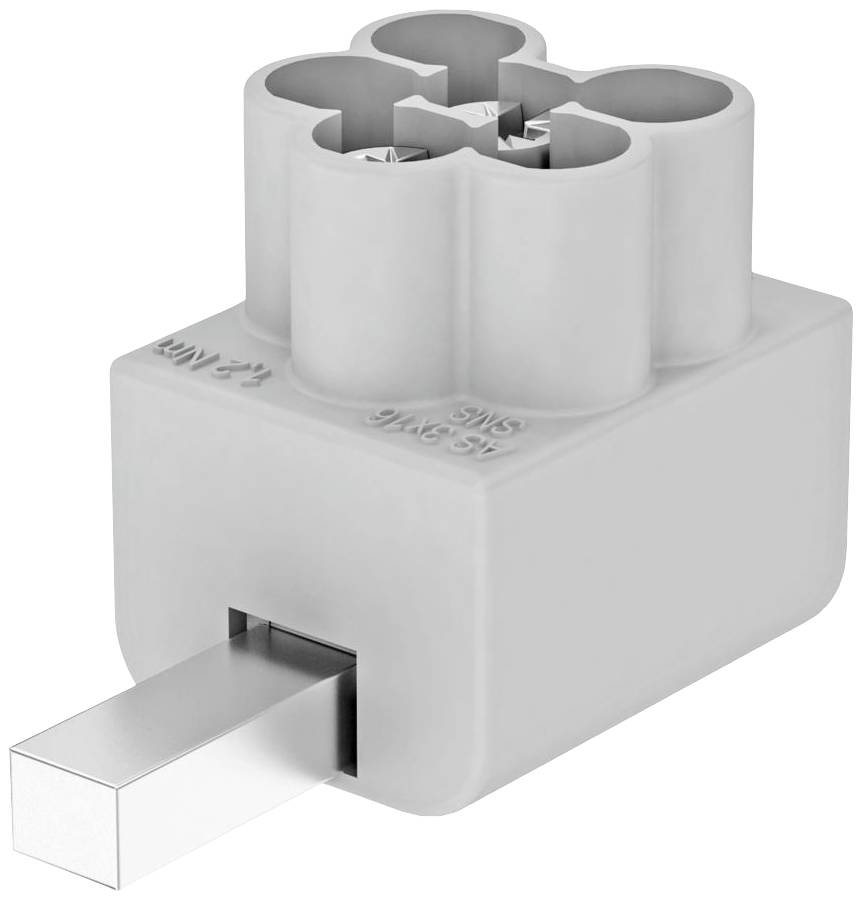

OBO Bettermann 5012010 AS 3x16 Fittings 5 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Type of accessory = pin terminal
- Product type
Fittings
- Manufacturer part #
5012010
- Factory colour
Light grey
- Dim
(W x H x D) 100 x 80 x 20 mm
- Width
100 mm
- Height
80 mm
- Depth
20 mm
- Content
5 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1962614 OBO Bettermann 5012010 AS 3x16 Fittings 5 pc(s)
Description
The connection terminal for surge suppressor enables an effortless connection of cables with small cross-sections up to 1.5 mm² with the conductor. The pin terminal can be up to three-wire record and ensures an EMC-optimized feed-through wiring according to IEC 60364-6-63 (DIN VDE 0100-534) from lightning current and surge arrester up to a maximum rated current of 50 A.
