OBO Bettermann 5015866 1802 10 VA Electrical bonding 1 pc(s)
EAN:
Part number:
Item no:
- Design = structure fix
- Design = only terminal
- Insulator = Yes
- Height = 40 mm
- Length = 408,5 mm
- Number of connections round conductor total = 0
- Number of connections round conductor 8 mm = 0
- Number of connections round conductor 10 mm = 0
- Number of connections round conductor 8-10mm = 0
- Number of connections ribbon cables up to 30 mm = 0
- Number of connections ribbon cables up to 40 mm = 0
- Number of ports line up to 6 mm² rigid = 0
- Number of ports line up to 16mm² rigid = 0
- Number of connections cable up to 25 mm² rigid = 0
- Number of connections cable up to 95 mm² rigid = 10
- Material of the contact rail = rust free steel (V2A)
- Surface of the contact rail = untreated
- Material of the clip = stainless steel (V2A)
- Surface of the clip = untreated
- Product type
Electrical bonding
- Manufacturer part #
5015866
- Length
408.5 mm
- Height
40 mm
- Depth
6 mm
- Content
1 pc(s)
- Weight
1240 g
- UKCA
not relevant
User & Safety Instructions
User & Safety Instructions 1959916 OBO Bettermann 5015866 1802 10 VA Electrical bonding 1 pc(s)

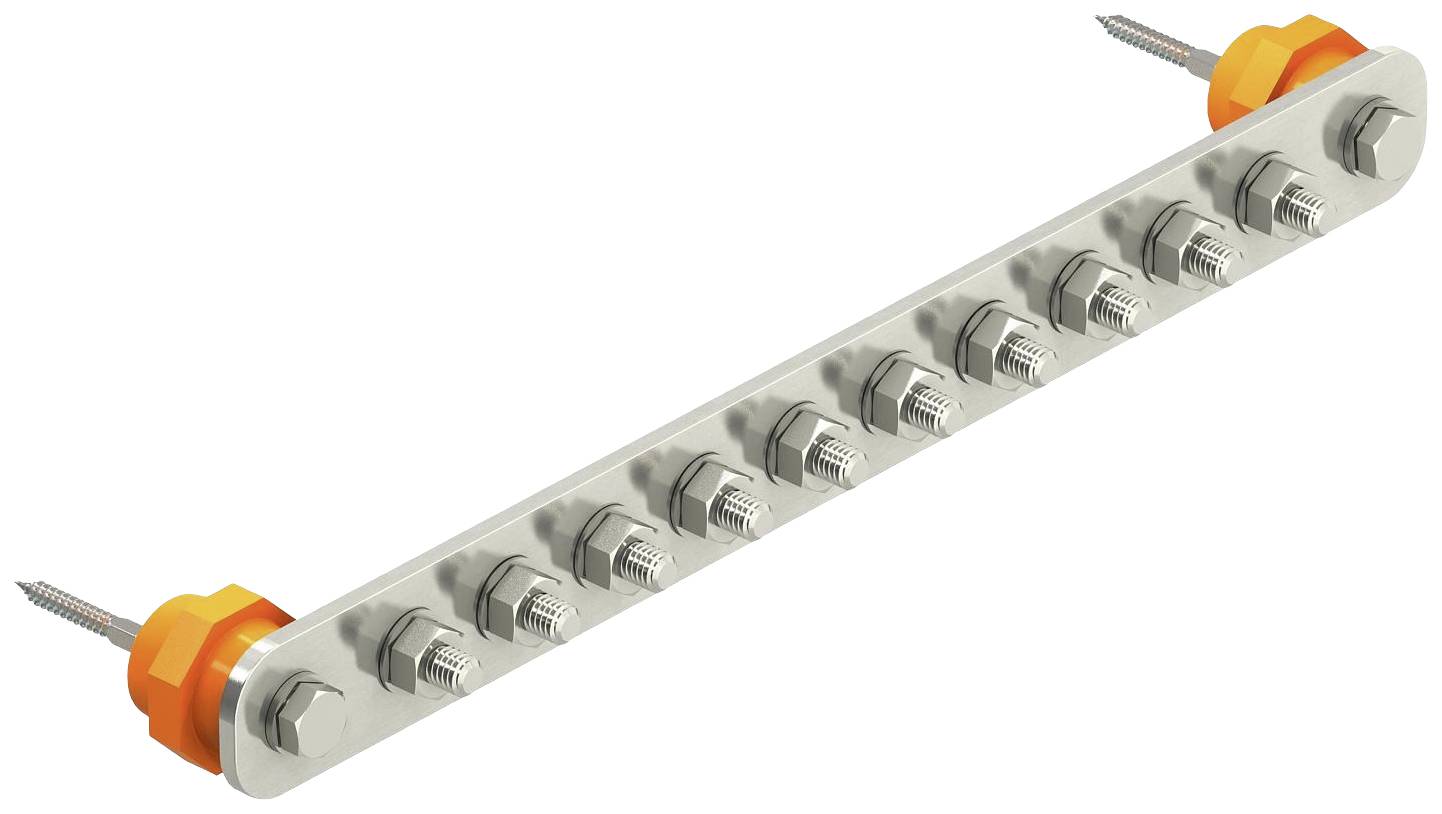

Equipotential bonding rail with insulator feet for countless applications in the industry, suitable for the main potential equalization according to DIN VDE 0100 Part 410 and part 540, as well as lightning protection potential compensation VDE 0185-305 (IEC 62305). Quick and easy mounting of the connection cables to the contact rail by means of lock screws M10, thickness: 6 mm; height: 40 mm, complete with wall plugs and screws for wall mounting
