OBO Bettermann 5304520 5010 20 FT Fittings 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- The type of connector = Construction Terminal
- Suitable for round conductor diameter = 8 to 10 mm
- .20 mm clamping range = 4.
- Material = Steel
- Surface = diving hot-dip galvanised
- Type of attachment screws = hexagon screw
- Product type
Fittings
- Manufacturer part #
5304520
- Content
1 pc(s)
- Max. clamping range
20 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1961296 OBO Bettermann 5304520 5010 20 FT Fittings 1 pc(s)
Description

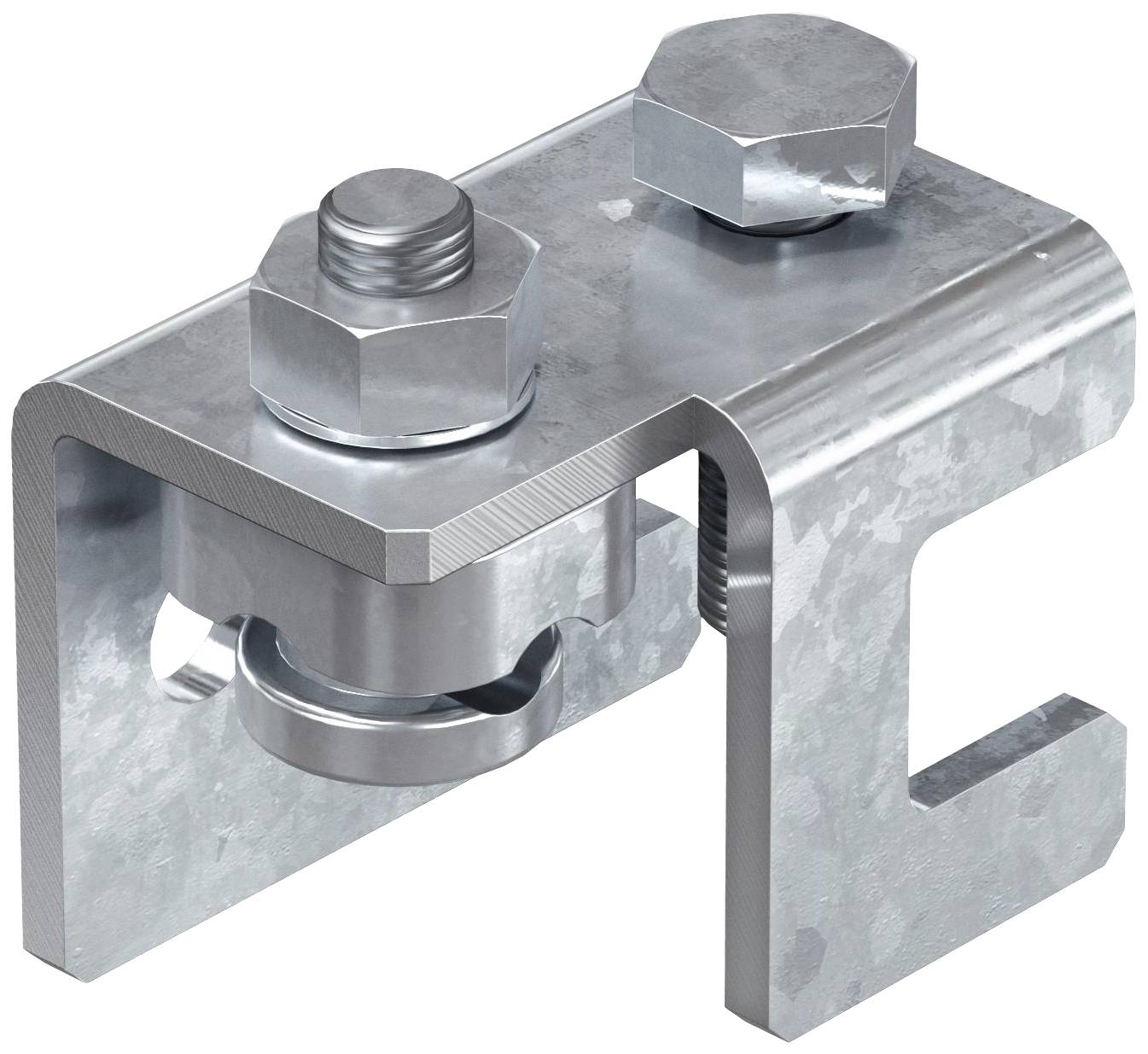

Construction terminal for connection of round conductors Rd 8-10, assembly of the round conductor vertical or horizontal to the construction possible, for fastening to constructions up to a flange thickness of 20 mm, attachment to constructions with a hexagonal screw M10, meet the requirements of VDE0185-305 (IEC 62305)
