OBO Bettermann 6055532 Cable duct (L x W x H) 3 m x 100.00 mm x 60.00 mm 3 m
EAN:
Part number:
Item no:
Technical specifications
- Height: 60 mm
- Width 100 mm
- Material thickness 1 mm.
- Length: 3000 mm
- Usable cross-section: 5800 mm²
- With top: No.
- Side holes: Yes
- Mounting holes in the ground: Yes
- NATO hole pattern: No.
- Design: Without connectors
- Wide-range version: No.
- Suitable for functional preservation: No.
- Material: Steel
- Stainless steel, stained: No.
- Material quality: Other
- Surface protection: Hot-dip galvanized
- Weighs 1.9 kg/m.
- Load test type according to IEC 61537: Type II.
- Product type
Cable duct
- Type
Without connectors
- Content
3 m
- Dim
(L x W x H) 3 m x 100.00 mm x 60.00 mm
- Length
3 m
- Width
100.00 mm
- Height
60.00 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3406340 OBO Bettermann 6055532 Cable duct (L x W x H) 3 m x 100.00 mm x 60.00 mm 3 m
Description

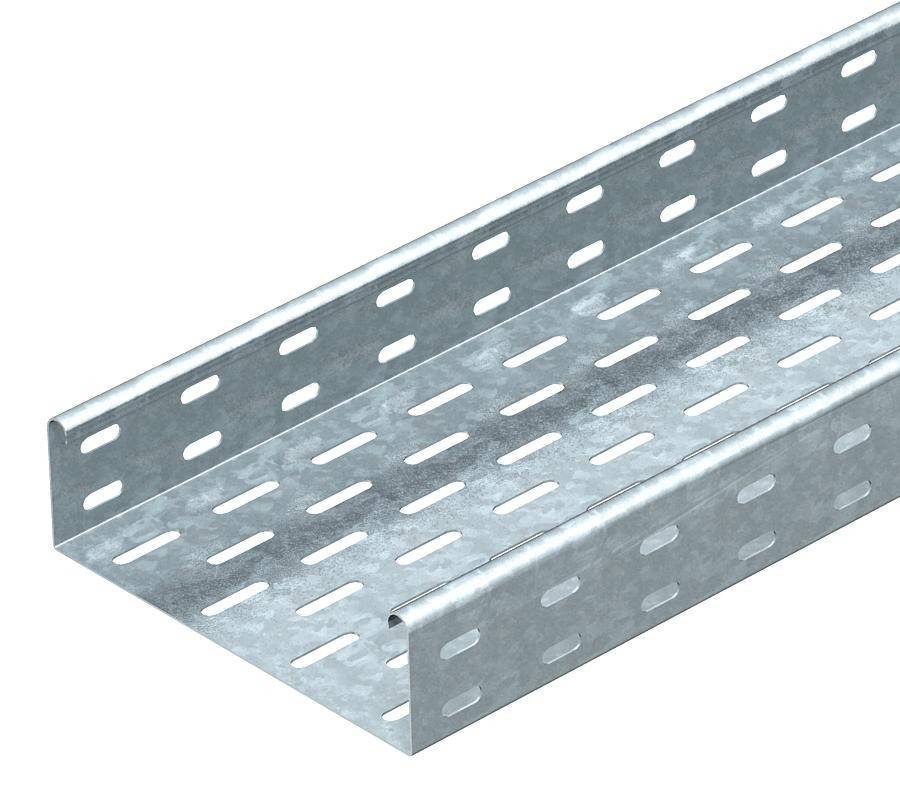

MKS 60 = medium-heavy cable channel system in 60 mm side height.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 3 m cable channel
