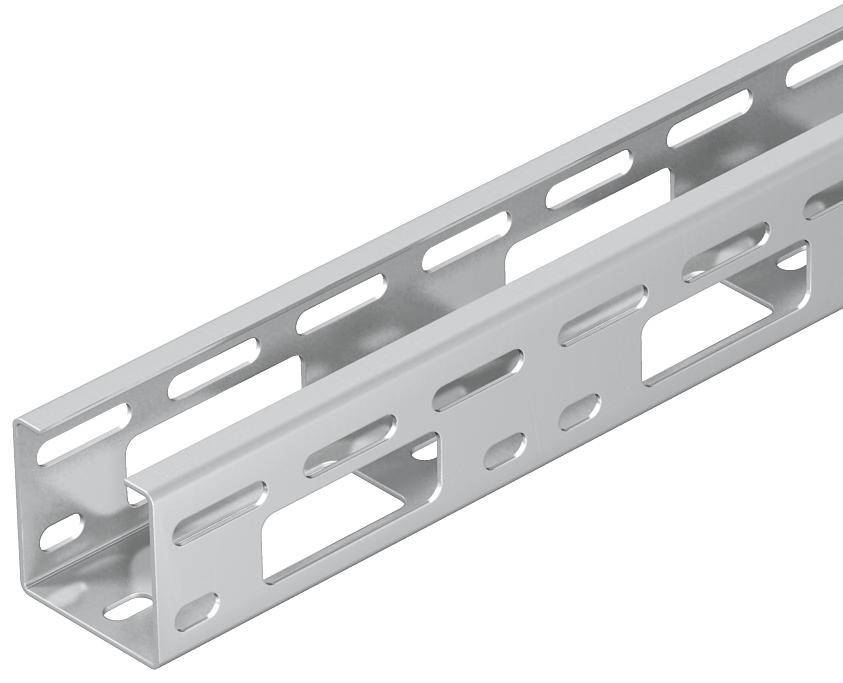

OBO Bettermann 6075150 Cable duct (L x W x H) 3 m x 50.00 mm x 50.00 mm 3 m
EAN:
Part number:
Item no:
Technical specifications
- Height: 50 mm
- Width 50 mm
- Material thickness 1.5 mm
- Length: 3000 mm
- Usable cross-section: 2500 mm²
- Side holes: Yes
- Mounting holes in the ground: Yes
- NATO hole pattern: No.
- Design: Without connectors
- Wide-range version: No.
- Suitable for functional preservation: No.
- Material: Stainless steel
- Stainless steel, stained: No.
- Material quality: Stainless steel (V2A)
- Surface protection: Untreated
- Weighs 1.36 kg/m.
- Product type
Cable duct
- Type
Without connectors
- Content
3 m
- Dim
(L x W x H) 3 m x 50.00 mm x 50.00 mm
- Length
3 m
- Width
50.00 mm
- Height
50.00 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3406621 OBO Bettermann 6075150 Cable duct (L x W x H) 3 m x 50.00 mm x 50.00 mm 3 m
Description
AZ small channel with side height 50 mm.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 3 m cable channel
