OBO Bettermann 6098409 Junction 1 pc(s)

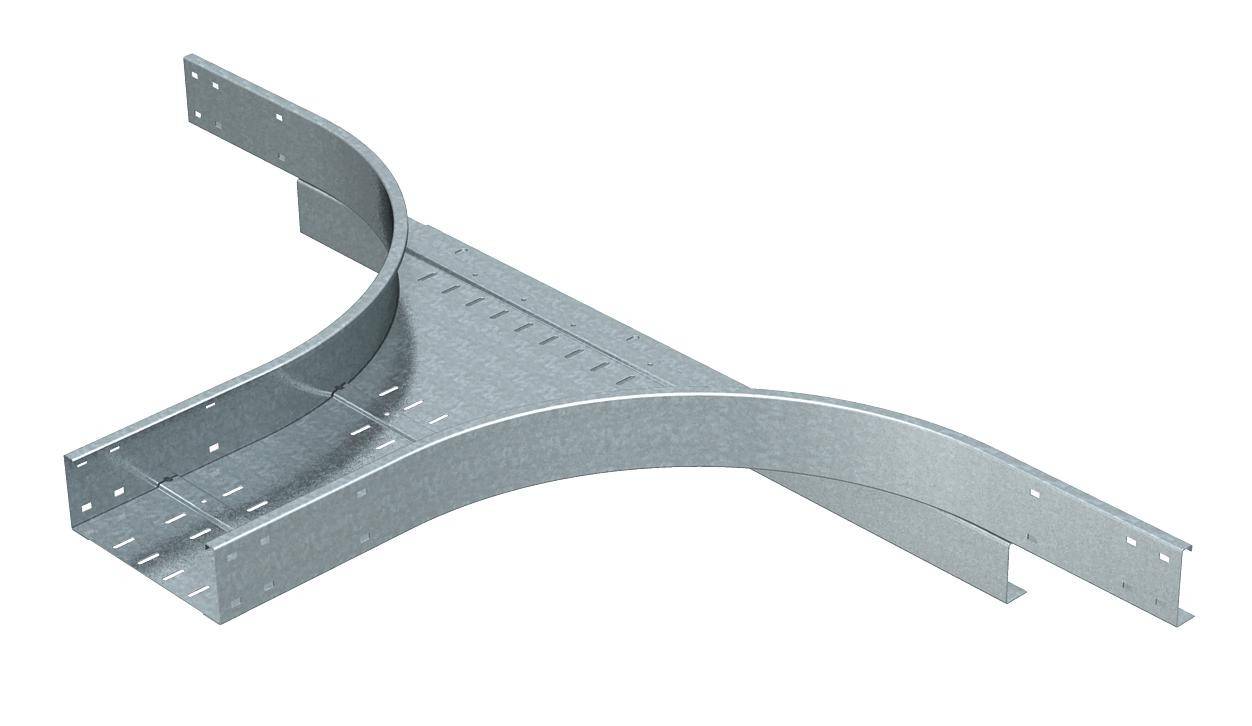

Metal Y-shaped cable trunking system. Used for guiding and branching cables in building installations.

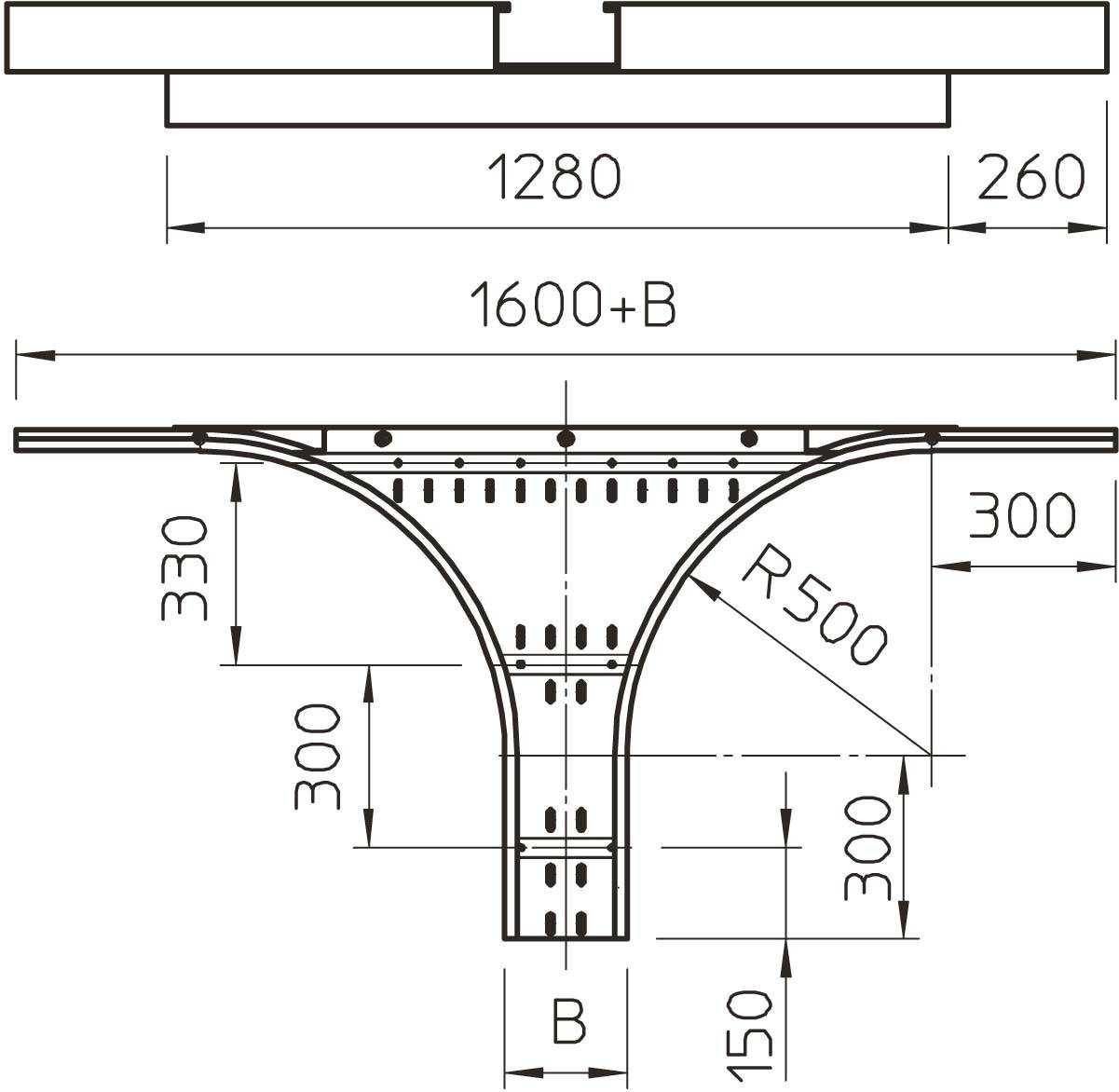

Technical drawing of a bridge with dimensions. Width at top: 1280 mm, Depth of main section: 300 mm, Radius: 500 mm.

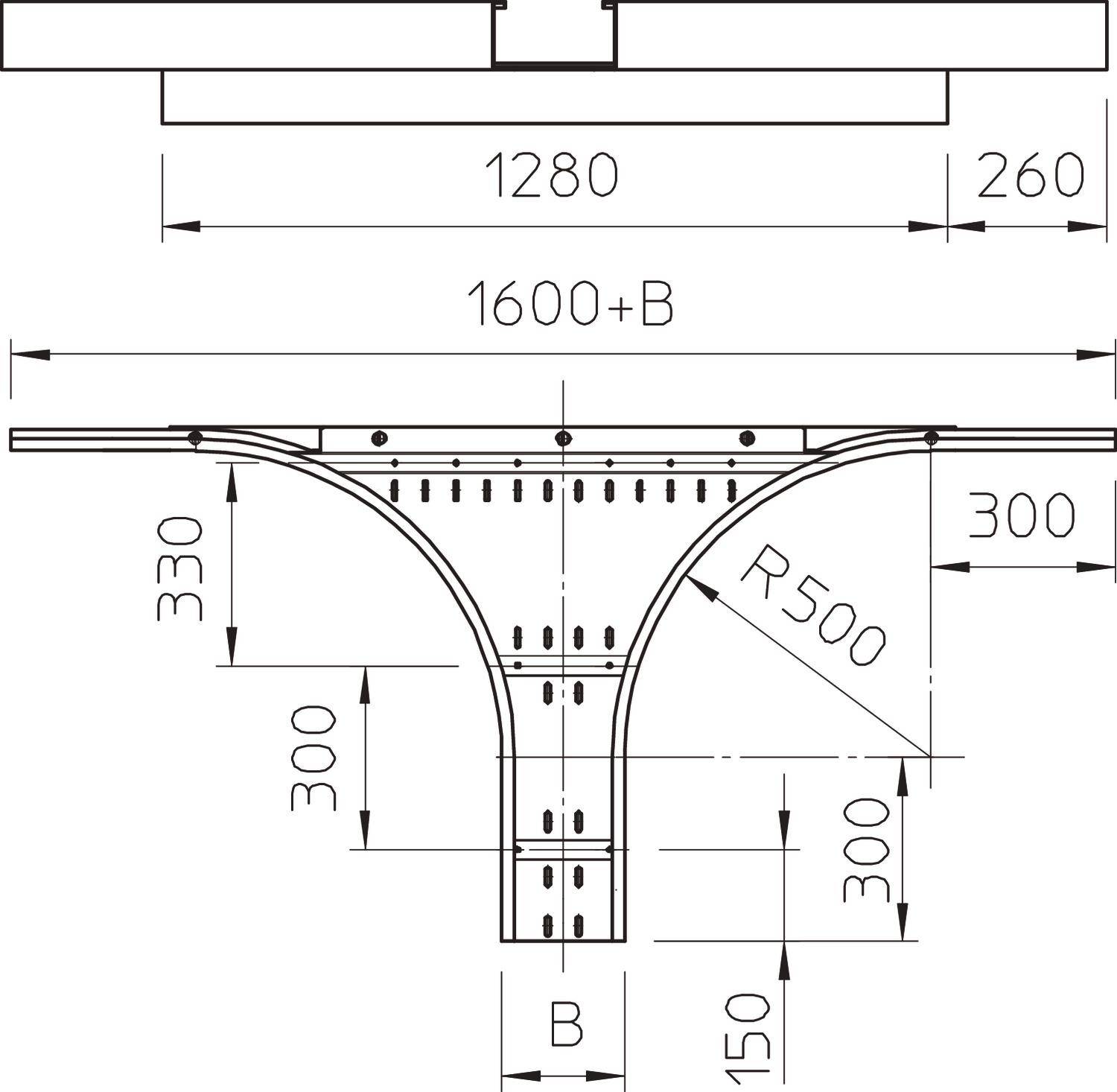

Blueprint of a structure with dimensions 1600+W width and 330 height. Details of arches and material thicknesses specified.
1/3
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Cable trough height 110 mm
  • Cable trough-outlet width 300 mm
  • Inner radius 500 mm
  • NATO hole pattern: No.
  • Design: Without connectors
  • Wide-range version: Yes
  • Suitable for functional preservation: No.
  • Material: Steel
  • Stainless steel, stained: No.
  • Material quality: Other
  • Surface protection: Zinc-plated strip
Product type

Junction

Component

Stub connector

Type

Without connectors

Content

1 pc(s)

Dim

(W x H) 300 mm x 110 mm

Width

300 mm

Height

110 mm

Material (details)

Steel

UKCA

not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3162808 OBO Bettermann 6098409 Junction 1 pc(s)

Description

Extension branch for horizontal use. For all wide-range cable troughs with side height 110 mm.

This text is machine translated.
