OBO Bettermann 6208562 Cable ducting (L x W x H) 3 m x 200.00 mm x 60.00 mm 3 m
EAN:
Part number:
Item no:
Technical specifications
- Side arm design: Flat profile
- Side holes: Yes
- Execution of rung: Profile punched
- Mounting the rung: Blind rivets
- Height: 60 mm
- Width 200 mm
- Length: 3000 mm
- Usable cross-section: 9800 mm²
- Rung center distance 300 mm
- Wide-range version: No.
- Suitable for functional preservation: Yes
- Material: Steel
- Material quality: Other
- Surface protection: Hot-dip galvanized
- Weighs 2.85 kg/m.
- Product type
Cable ducting
- Content
3 m
- Factory colour
Zinc
- Dim
(L x W x H) 3 m x 200.00 mm x 60.00 mm
- Length
3 m
- Width
200.00 mm
- Height
60.00 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3406480 OBO Bettermann 6208562 Cable ducting (L x W x H) 3 m x 200.00 mm x 60.00 mm 3 m
Description

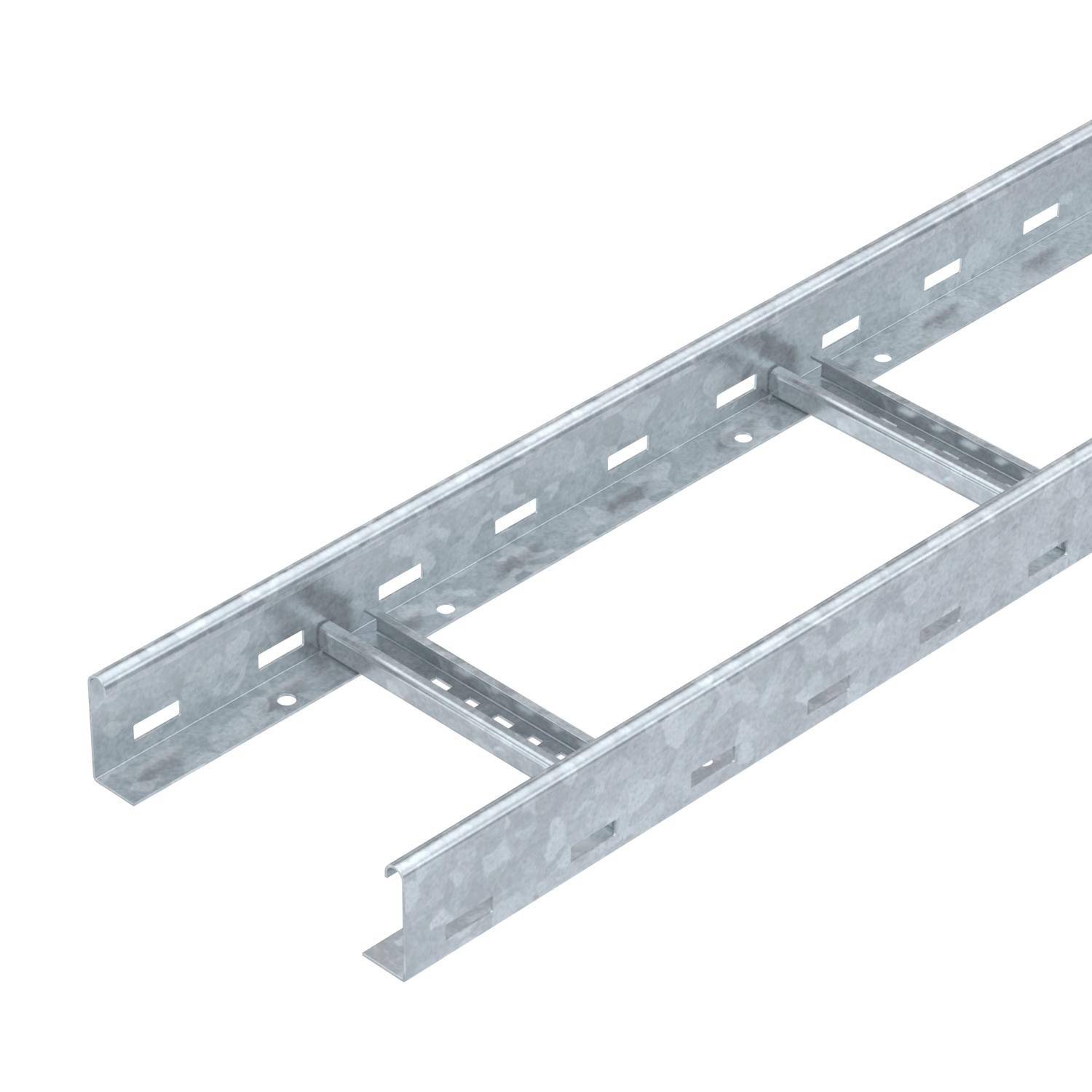

Cable cable trunking with perforated side spar at side height 60 mm with riveted open top C-profile rungs (version VS).
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 3 m cable conductor
