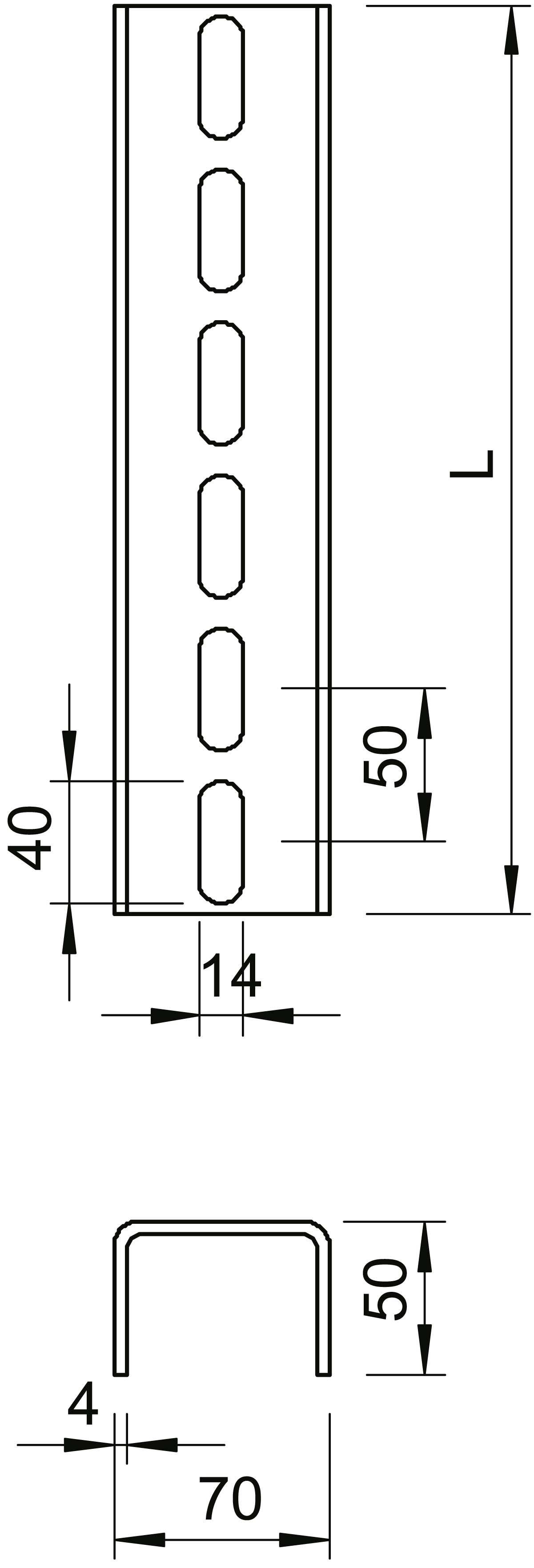

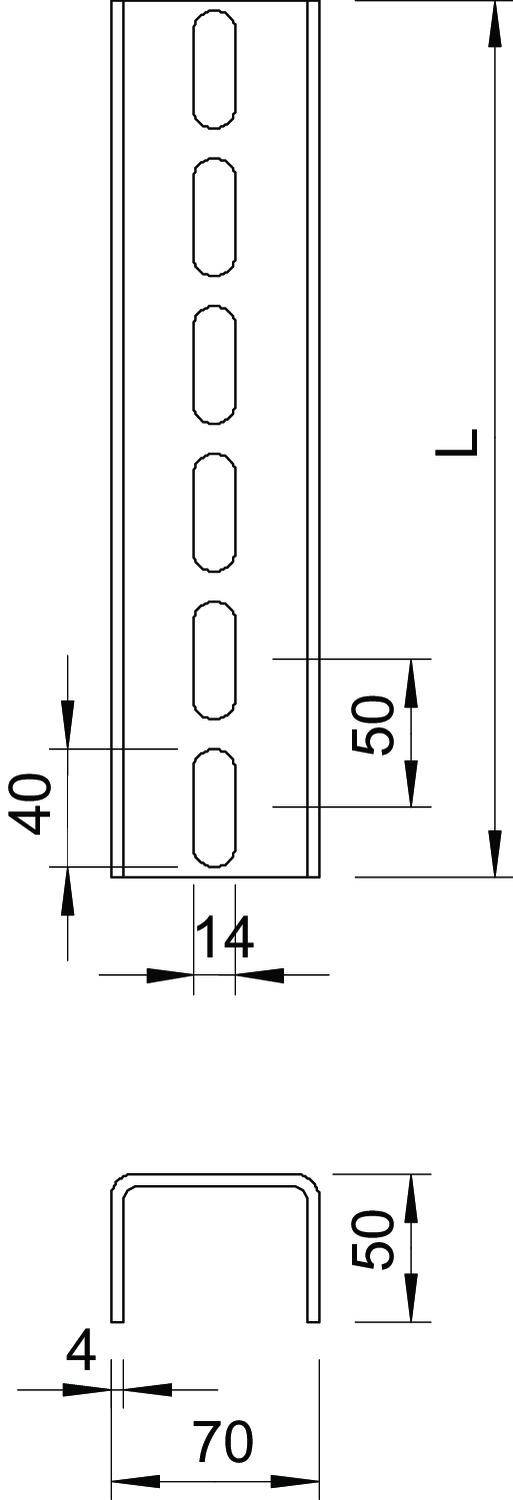

OBO Bettermann 6340377 U handle (L x W x H) 3 m x 70.00 mm x 50.00 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Length: 3000 mm
- Width 70 mm
- Height: 50 mm
- Material thickness 4 mm.
- Profile shape: U-profile
- Type of hole: 3 pages punched
- With teeth: No.
- Surface moment of inertia ly: 13.79 cm4
- Surface moment of inertia LZ: 36.84 cm4
- Resistance torque Wy: 4.11 cc
- Resistance torque WZ: 10.53 cm3
- Suitable for functional preservation: No.
- Material: Steel
- Surface protection: Hot-dip galvanized
- Weighs 12.5 kg.
- Product type
U handle
- Content
1 pc(s)
- Factory colour
Zinc
- Dim
(L x W x H) 3 m x 70.00 mm x 50.00 mm
- Length
3 m
- Width
70.00 mm
- Height
50.00 mm
- Material (details)
Steel
- Weight
12.50 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3162646 OBO Bettermann 6340377 U handle (L x W x H) 3 m x 70.00 mm x 50.00 mm 1 pc(s)
Description
U-handle in fixed lengths. Dimensions 70 x 50 mm
