OBO Bettermann 7082010 Hinged connector 1 pc(s) Metal
EAN:
Part number:
Item no:
Technical specifications
- Design = Long Connector
- Joint connector horizontal = No
- Joint connector vertical = Yes
- Connection type = screw connectors
- Suitable for grid gutter = No
- Suitable for cable wire = No
- Suitable for cable channel = Yes
- Suitable for cable support system height = 60 mm
- Material = Steel
- Stainless steel
- Stained = No
- Material good = other
- Surface = galvanised
- Product type
Hinged connector
- Content
1 pc(s)
- Factory colour
Metal
- Dim

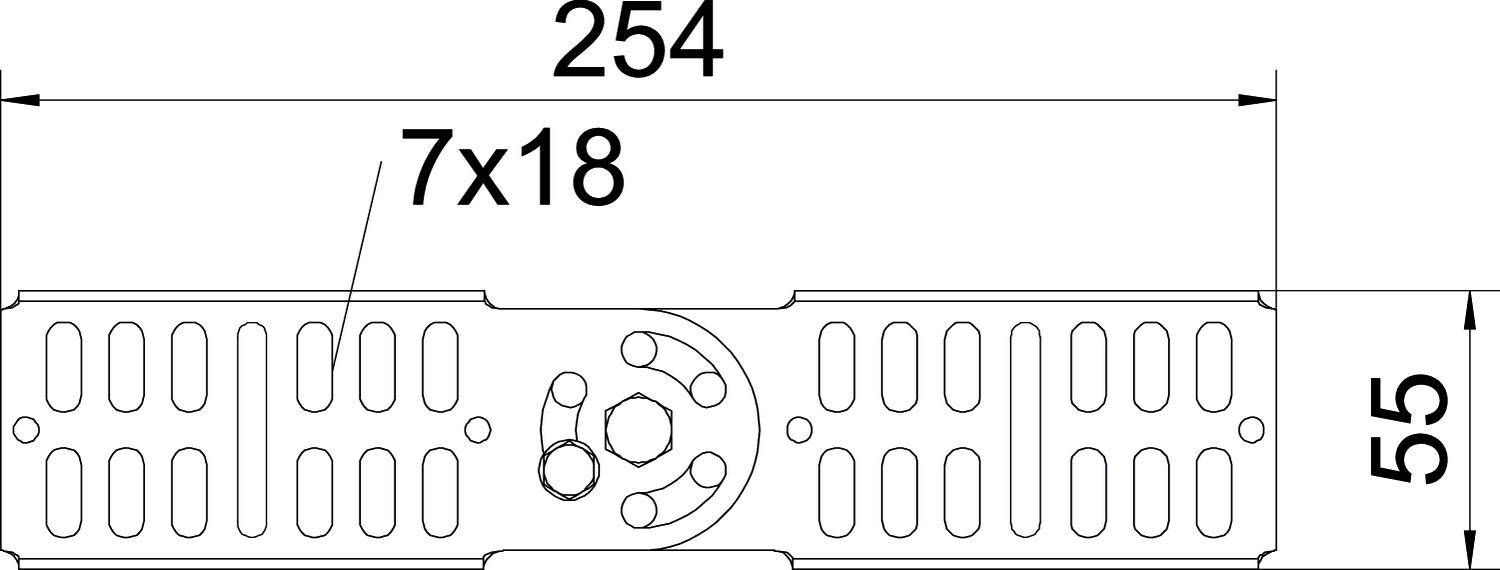

(W x H x D) 254.0000 x 21.0000 x 56.0000 mm
- Width
254.0000 mm
- Height
21.0000 mm
- Depth
56.0000 mm
- Cable tie length
0.3 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1966934 OBO Bettermann 7082010 Hinged connector 1 pc(s) Metal
Description

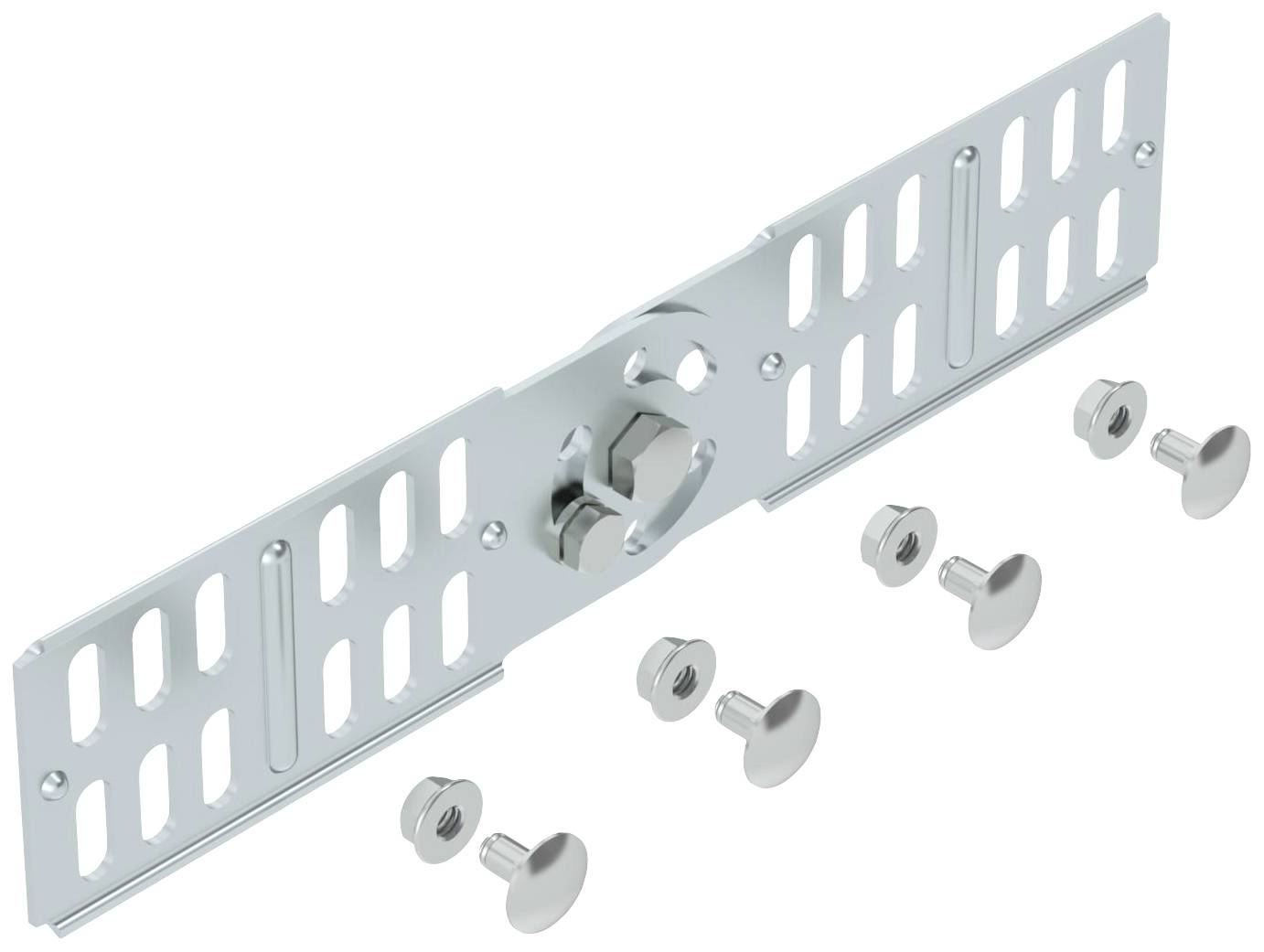

Complete with 4 screws type 12510/M 6 x 12 and 1 screw type 12516/M8 x 12
