OBO Bettermann 7097476 Cable ducting (L x W x H) 3 m x 600.00 mm x 40.00 mm 3 m
EAN:
Part number:
Item no:
Technical specifications
- Side arm design: Flat profile
- Side holes: Yes
- Execution of rung: Profile punched
- Mounting the rung: Welded
- Height: 40 mm
- Width 600 mm
- Length: 3000 mm
- Rung center distance 300 mm
- Wide-range version: No.
- Suitable for functional preservation: No.
- Material: Steel
- Material quality: Other
- Surface protection: Hot-dip galvanized
- Weight: 4.84 kg/m
- Product type
Cable ducting
- Content
3 m
- Dim
(L x W x H) 3 m x 600.00 mm x 40.00 mm
- Length
3 m
- Width
600.00 mm
- Height
40.00 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3406434 OBO Bettermann 7097476 Cable ducting (L x W x H) 3 m x 600.00 mm x 40.00 mm 3 m
Description

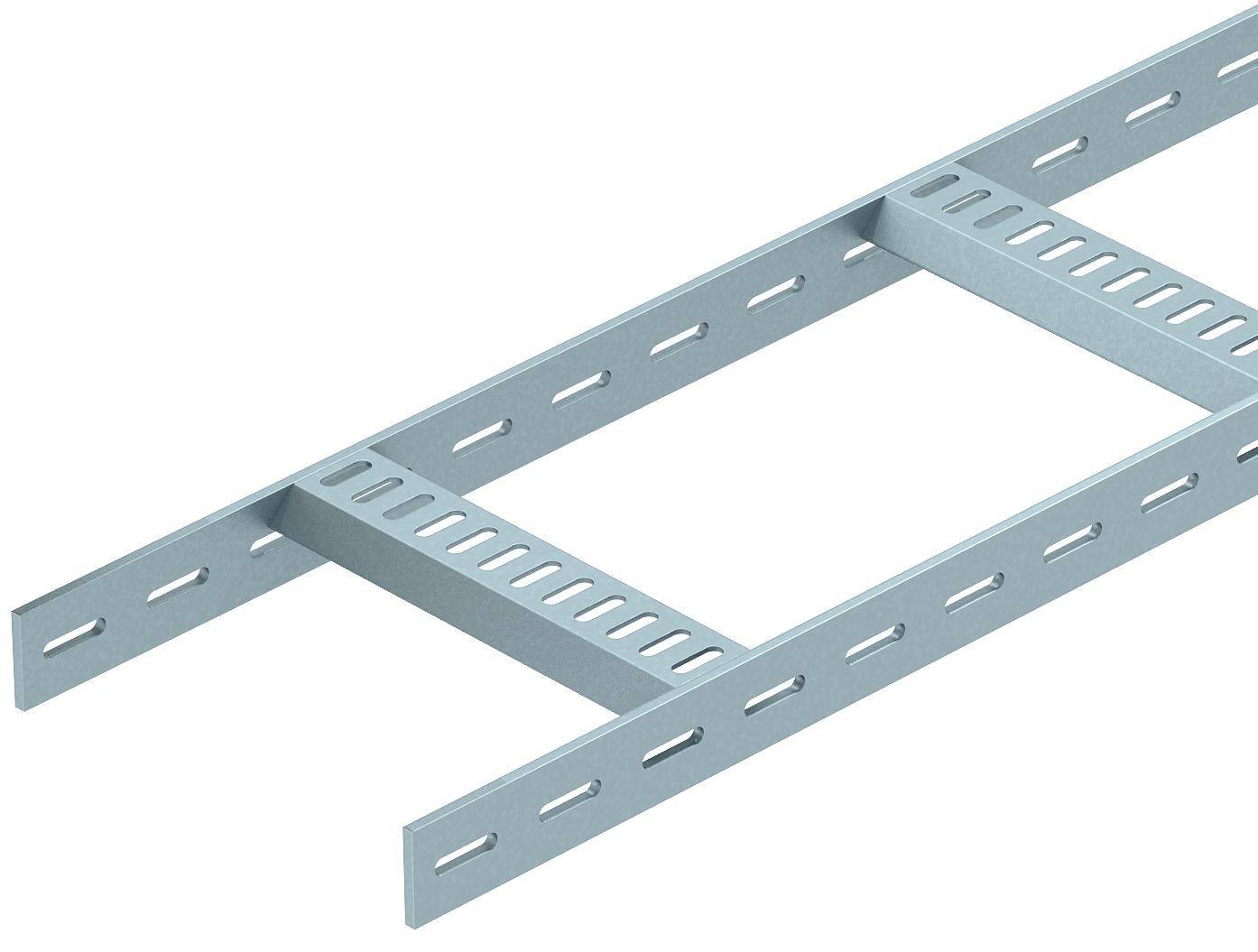

Ship building cable ladder with perforated side spar in the side height 40 mm with welded, open downward and perforated trapezoid rungs. Load tested according to IEC in combination with connector type SLV.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 3 m cable conductor
