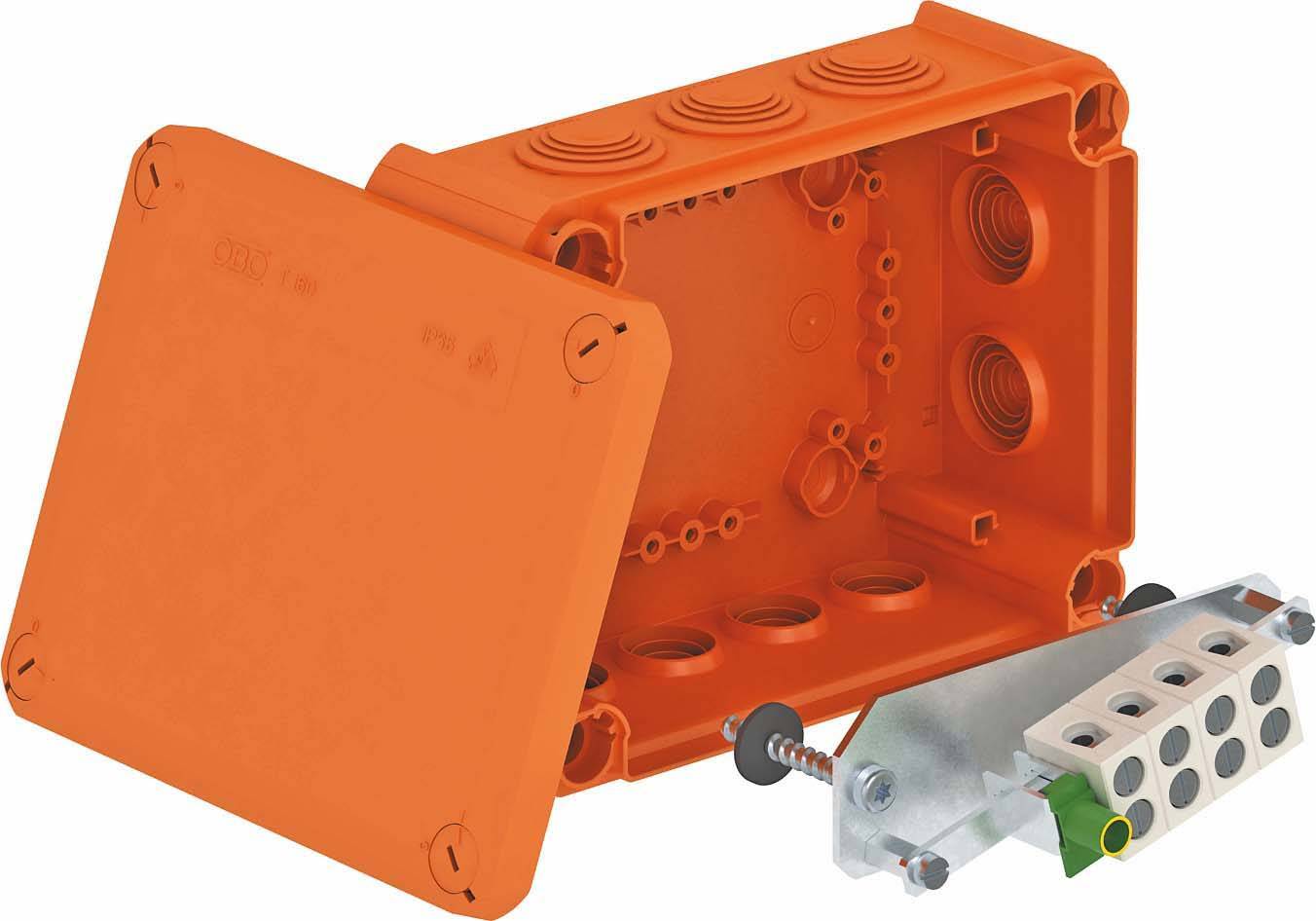

OBO Bettermann 7205536 Junction box (L x W) 190 mm x 150 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Max. Conductor cross-section = 16 mm²
- Assembly=clamp
- The form = rectangular
- Mounting type = wall/ceiling mounting
- Introduction of rear = No
- Length = 190 mm
- Width = 150 mm
- Depth = 77 mm
- Can be stacked end-to-end = No
- The number of entries = 12
- The type of casing feed = level membrane can be cut
- Material = Plastic
- Halogen-free = Yes
- Surface = untreated
- Color = orange
- IP66 degree of protection (IP) =
- Cover Mounting = screwed
- Sealable = No
- Function receives = E90
- With Shielding = No
- Weather-proof = No
- Explosion tested design = No
- For Ex Zone Gas = without
- For Ex zone dust = without
- Product type
Junction box
- Features
Halogen-free
- Content
1 pc(s)
- Factory colour
Orange
- Dim
(L x W) 190 mm x 150 mm
- Length
190 mm
- Width
150 mm
- Depth
77 mm
IP66
- Mounting
Terminal
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1955267 OBO Bettermann 7205536 Junction box (L x W) 190 mm x 150 mm 1 pc(s)
Description
Halogen-free cable junction box with pre-assembled, soft Insertion seals, approved for the electrical function receives in accordance with DIN 4102 part 12. Function receives classes E 30 to E90. Including pre-mounted connection unit made of high temperature resistant special ceramic and coded protective conductor terminal. Supplied with 2 fire protection screw anchors MMS 6x50 without the need for wall plugs. Several smaller cross-sectional rigid copper wires per terminal. The cable junction box has the impact strength class IK05. Details of cable types and manufacturers are the general building supervision test certificate of the material testing institute of NRW, erwitte, refer to the MPA
This text is machine translated.
This text is machine translated.
