OBO Bettermann 7205583 Junction box (L x W) 182 mm x 116 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Max. Conductor cross-section = 4 mm²
- Assembly=clamp
- The form = rectangular
- Mounting type = wall/ceiling mounting
- Introduction of rear = No

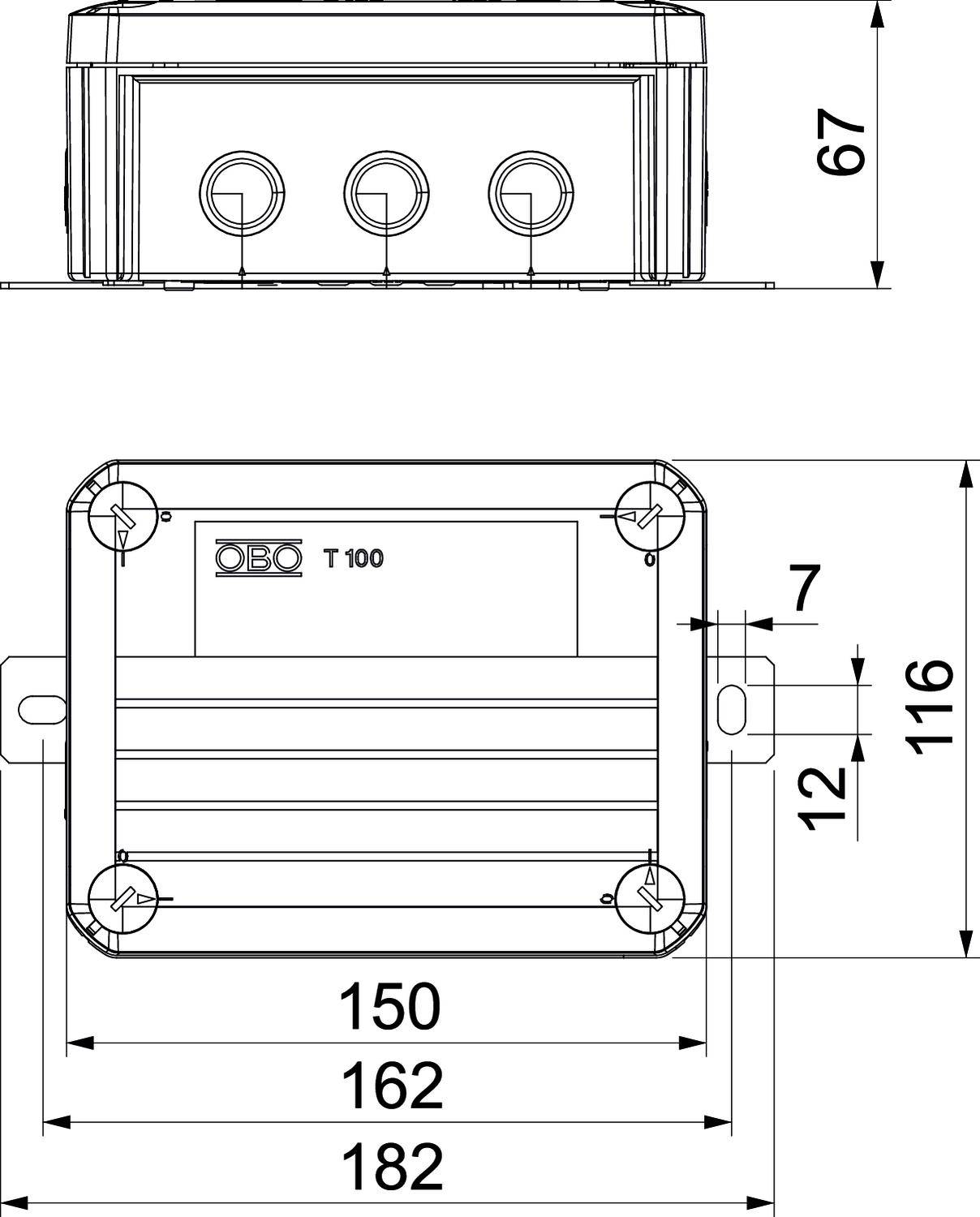

- Length = 182 mm
- Width = 116 mm
- Depth = 67 mm
- Can be stacked end-to-end = No
- The number of entries = 10
- The type of casing feed = sealing membrane
- Material = Plastic
- Halogen-free = Yes
- Surface = untreated
- Color = orange
- IP66 degree of protection (IP) =
- Cover Mounting = screwed
- Function receives = E90
- With Shielding = No
- Explosion tested design = No
- For Ex Zone Gas = without
- For Ex zone dust = without
- Product type
Junction box
- Content
1 pc(s)
- Factory colour
Orange
- Dim
(L x W) 182 mm x 116 mm
- Length
182 mm
- Width
116 mm
- Depth
67 mm
IP66
- Mounting
Terminal
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1966099 OBO Bettermann 7205583 Junction box (L x W) 182 mm x 116 mm 1 pc(s)
Description

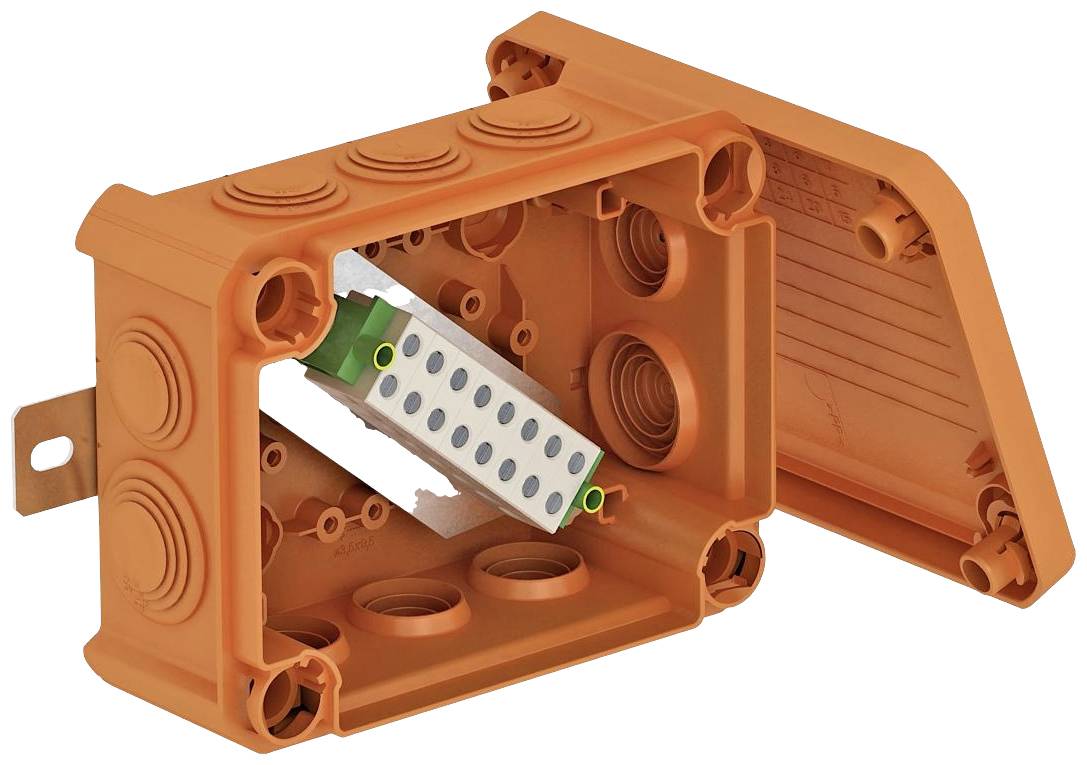

Halogen-free cable junction box with pre-assembled, soft Insertion seals, approved for the electrical function receives in accordance with DIN 4102 part 12. Function receives classes E 30 to E90. Including pre-mounted connection unit made of high temperature resistant special ceramic and coded protective conductor terminal. Supplied with fuse holder TE-FH520 for VDE-compliant, feedback-free protection of consumers and 2 fire protection screw anchors MMS 6x50 without the need for wall plugs.
