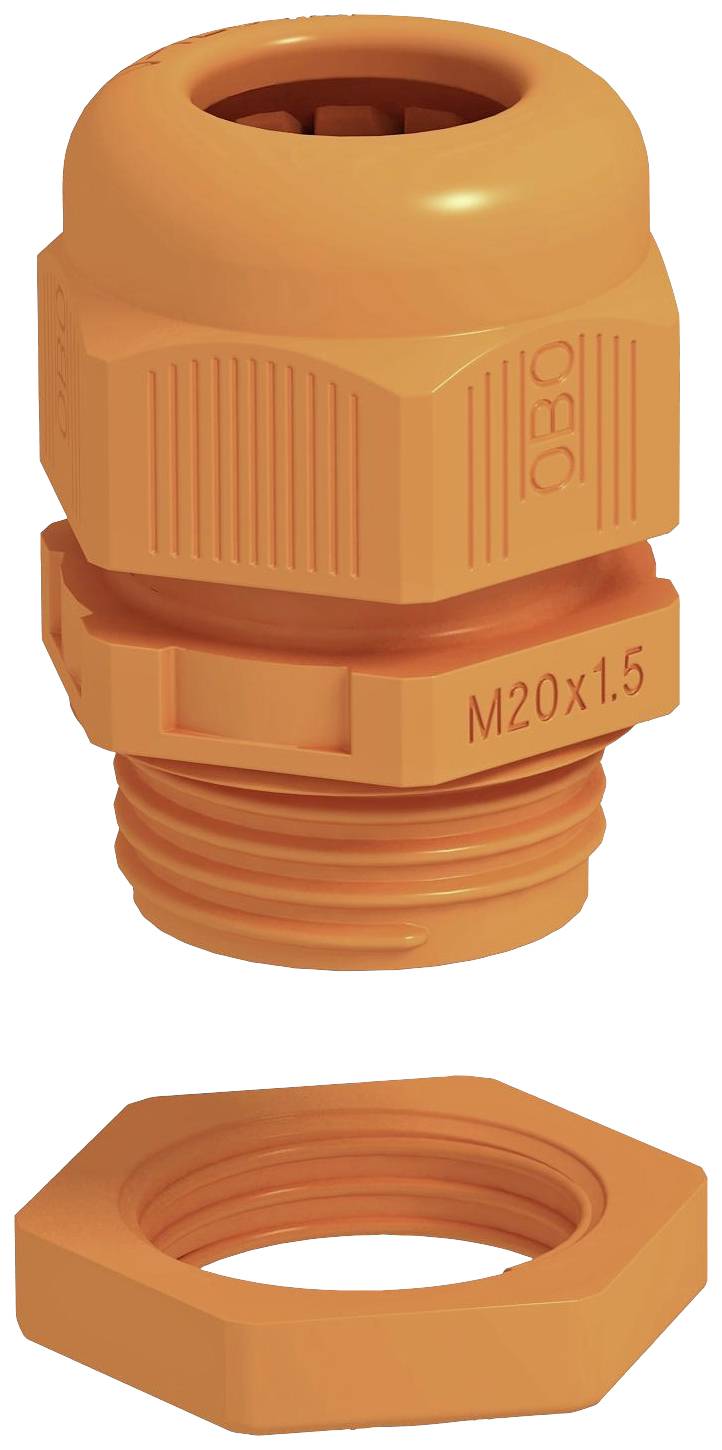

OBO Bettermann 7205657 Cable gland 1.5 mm 10 pc(s)
Product type
Cable gland
Type
Straight
Material
Polychloroprene
Features
with locknut
Internal thread
1.5 mm
EAN:
Part number:
Item no:
Technical specifications
- Material: other
- Untreated surface:
- Glass-fiber reinforced: no
- Impact: no
- Color: Other
- Bend protection: no
- With nut: yes
- Multi-seal insert: no
- Flat cable gland: no
- With strain relief: yes
- Divisible cable gland: no
- Explosion tested design: no
- For Ex Zone Gas: without
- For Ex zone dust: without
- Product type
Cable gland
- Features
with locknut
- Internal thread
1.5 mm
- Type
Straight
- Material
Polychloroprene
IP68
- Halogen-free
Yes
- Content
10 pc(s)
- Manufacturer part #
7205657
- Type
V-TEC VM16+ OR
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1966391 OBO Bettermann 7205657 Cable gland 1.5 mm 10 pc(s)
Description
Robust cable gland into domed cap design with a metric connection thread according to IEC 423 including pre-nuts. For high density requirements. Strain relief, anti-twist lock and tightness over the entire range. Sealing ring made of acrylonitrile butadiene rubber/Polychloropren. Molded shape lip seal between the two fittings, no connection thread sealing ring is required. VDE-tested according to DIN EN 50262, protection class IP68 with 5 bar 1 h. For the electrical function receives according to DIN 4102 part 12 in connection with the cable junction box of the FireBox T series.
