OBO Bettermann 7205706 TK 16 Ceramic terminal flexible: - fixed: 16-16 mm² Number of pins: 1 1 pc(s)
Product type
Ceramic terminal
Cross section (inflexible) (min.)
16 mm²
Cross section (inflexible) (max.)
16 mm²
Number of pins
1
Nominal current - rounded value
76 A
EAN:
Part number:
Item no:
Technical specifications
- Explosion-tested version "Ex e": No.
- Design electrical connection 1: Screw connection
- Design electrical connection 2: Screw connection
- Connection position: Lateral
- Number of terminal points per pole: 2
- Mounting type: Other
- Material of the insulating body: Ceramic
- Operating temperature 250 °C .250 °C

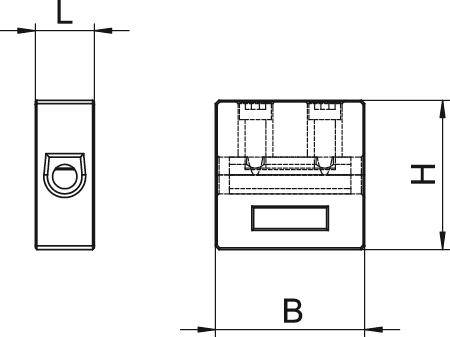

- Width/Pitch 15 mm
- Height at low installation type: 28 mm
- Length: 18 mm
- Cover plate required: No.
- Colour: Other
- Transparent: No.
- Product type
Ceramic terminal
- Cross section (inflexible) (min.)
16 mm²
- Cross section (inflexible) (max.)
16 mm²
- Number of pins
1
- Nominal current
76 A
- Nominal current - rounded value
76 A
- Content
1 pc(s)
- Manufacturer part #
7205706
- Connection
Screws
- Nominal voltage
400 V
- Length
18 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3339996 OBO Bettermann 7205706 TK 16 Ceramic terminal flexible: - fixed: 16-16 mm² Number of pins: 1 1 pc(s)
Description
High-temperature resistant ceramic terminal for retrofitting the Firebox T-series.
