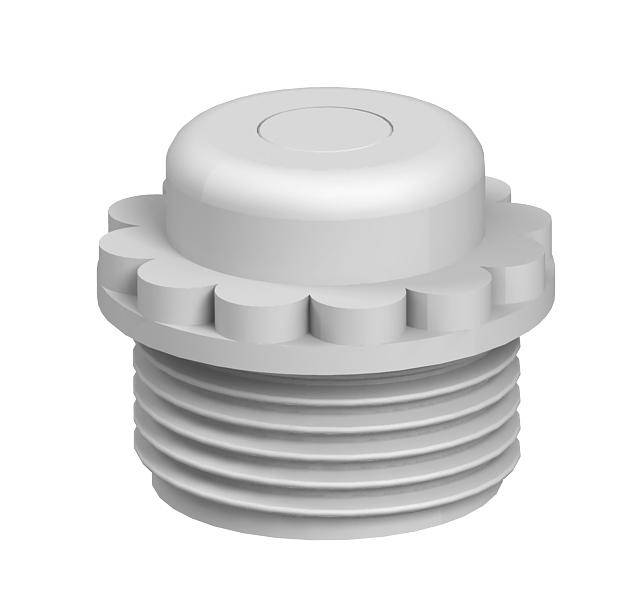

OBO Bettermann 90 PG16 DSMB Grommet (cut-to-fit) Plastic Light grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Grommet (cut-to-fit)
Features
with pierceable membrane
Material
Plastic
Clamp Ø
8 mm
Terminal Ø (max.)
13 mm
Technical specifications
- Nominal size PG=16
- Execution = closed
- Sealing area=8..13 mm
- Protection class (IP)=IP54
- Material=plastic
- Colour=light gray
- Halogen-free = yes
- Product type
Grommet (cut-to-fit)
- Features
with pierceable membrane
- Factory colour
Light grey
- Material
Plastic
- Clamp Ø
8 mm
- Terminal Ø (max.)
13 mm
- Mounting hole
PG16
IP54
- Halogen-free
Yes
- Content
1 pc(s)
- Manufacturer part #
2032546
- Type
90 PG16 DSMB
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3339977 OBO Bettermann 90 PG16 DSMB Grommet (cut-to-fit) Plastic Light grey 1 pc(s)
Description
With a puncture membrane, here the opening D is pre-stamped, but closed first. Grommet for screw in PG thread acc. To DIN 40430. With self-sealing cone at the thread end, hence no connecting thread sealing ring is necessary. Protection class achievable with the careful installation IP54.
