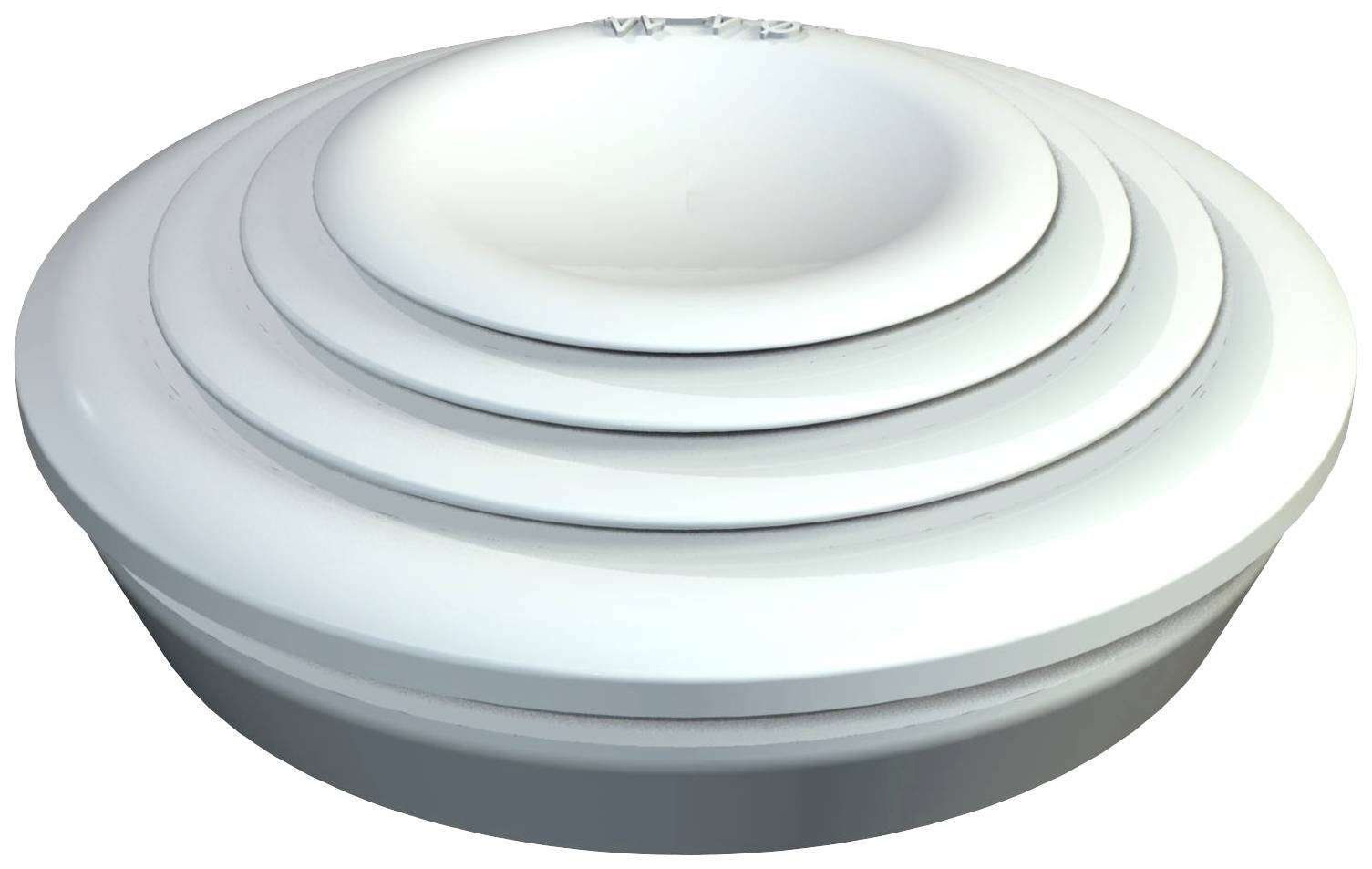

OBO Bettermann EDK 25 LGR Grommet (cut-to-fit) Plastic Light grey 100 pc(s)
Product type
Grommet (cut-to-fit)
Material
Plastic
Clamp Ø
5 mm
Terminal Ø (max.)
22 mm
Factory colour
Light grey
EAN:
Part number:
Item no:
Technical specifications

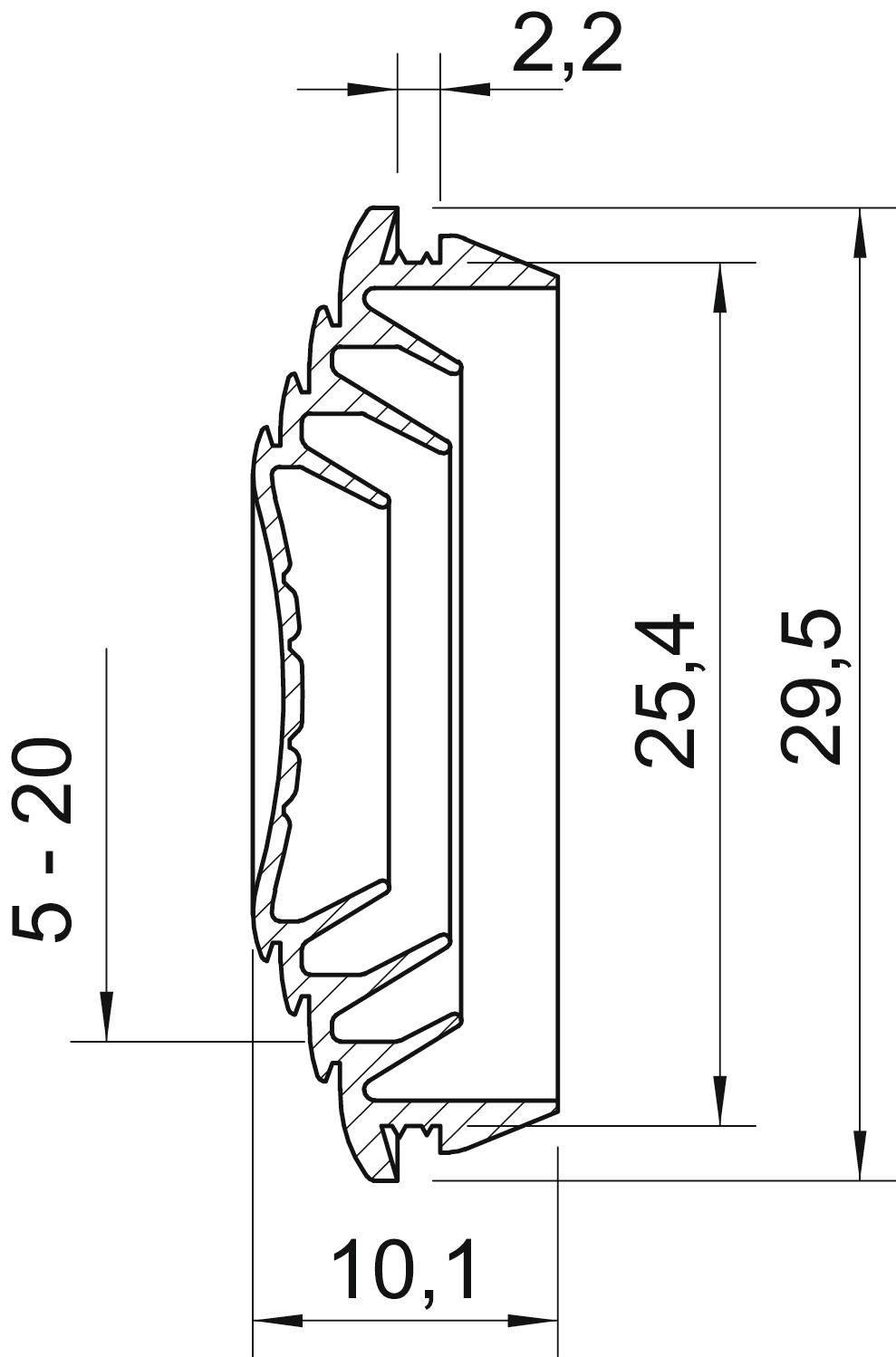

- Nominal diameter = 29.5 mm
- Design = can be cut
- Sealing Range = 5. .22 mm
- For wall thickness 2.2 mm = 2.2.
- IP66 degree of protection (IP) =
- Material = Plastic
- Color = light gray
- Halogen-free = Yes
- Product type
Grommet (cut-to-fit)
- Factory colour
Light grey
- Material
Plastic
- (Ø)
29.5 mm
- Dim
(Ø) 29.5 mm
- Clamp Ø
5 mm
- Terminal Ø (max.)
22 mm
- Board thickness (max.)
2.2 mm
IP66
- Halogen-free
Yes
- Content
100 pc(s)
- Manufacturer part #
2011638
- Type
EDK 25 LGR
- Mounting hole diameter
29.5 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1957257 OBO Bettermann EDK 25 LGR Grommet (cut-to-fit) Plastic Light grey 100 pc(s)
Description
The plug-in seal can be adapted to the particular cable diameter by step-wise cut
