OBO Bettermann EDS M20 LGR Grommet (cut-to-fit) Plastic Light grey 1 pc(s)
Product type
Grommet (cut-to-fit)
Features
selectable
Material
Plastic
Clamp Ø
0 mm
Terminal Ø (max.)
17 mm
EAN:
Part number:
Item no:
Technical specifications
- Nominal diameter = 20 mm
- Execution=cuttable
- Sealing area=0..17 mm
- For wall thickness=2.5..3.1 mm
- Protection class (IP)=IP54
- Material=plastic
- Colour=light gray
- Halogen-free = yes
- Product type
Grommet (cut-to-fit)
- Features
selectable
- Factory colour
Light grey
- Material
Plastic
- (Ø)
20 mm
- Dim
(Ø) 20 mm
- Clamp Ø
0 mm
- Terminal Ø (max.)
17 mm
- Mounting hole
20 mm
- Board thickness (max.)
3.1 mm
IP54
- Halogen-free
Yes
- Content
1 pc(s)
- Manufacturer part #
2012350
- Type
EDS M20 LGR
- Mounting hole diameter
20 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3339993 OBO Bettermann EDS M20 LGR Grommet (cut-to-fit) Plastic Light grey 1 pc(s)
Description

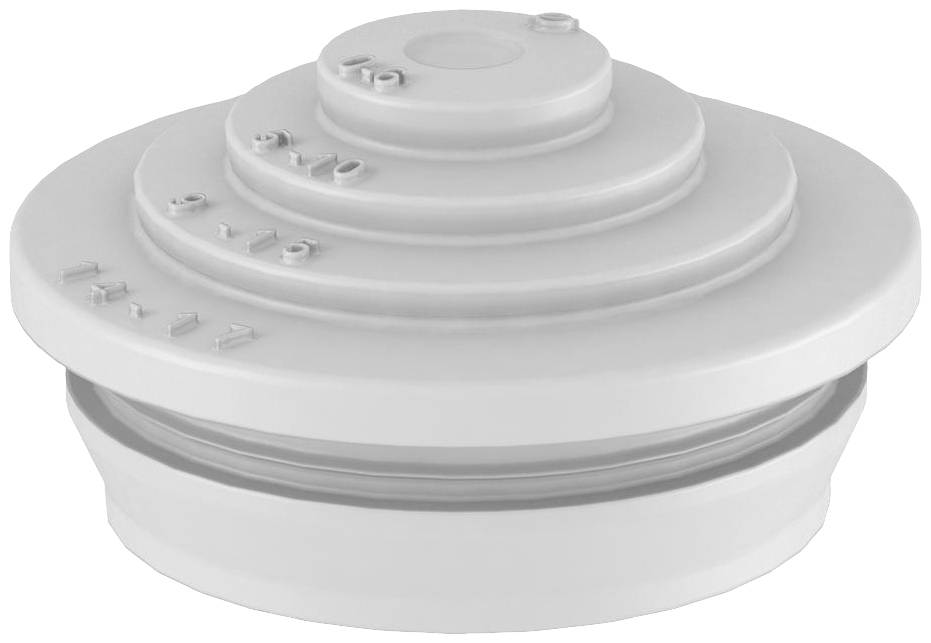

The plug-in nipple can be adjusted to the respective cable diameter by cutting through stages.
