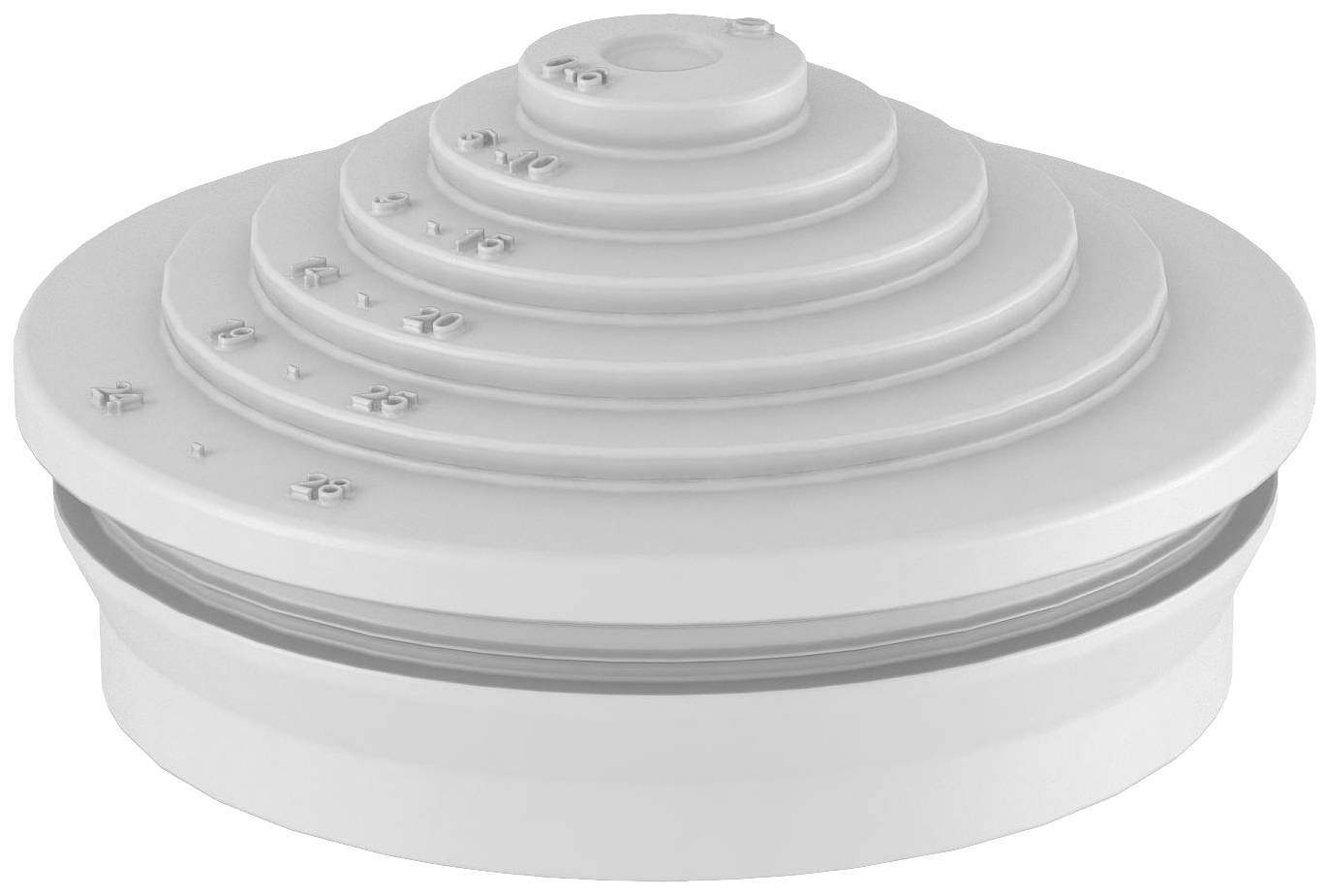

OBO Bettermann EDS M32 LGR Grommet (cut-to-fit) Plastic Light grey 50 pc(s)
Product type
Grommet (cut-to-fit)
Features
adjustable
Material
Plastic
Clamp Ø
0 mm
Terminal Ø (max.)
28 mm
EAN:
Part number:
Item no:
Technical specifications
- Nominal diameter = 32 mm
- Design = can be cut
- Sealing Range = 0. .28 mm
- For wall thickness 3.1 mm = 2.5..
- Degree of protection (IP)=IP54
- Material = Plastic
- Color = light gray
- Halogen-free = Yes
- Product type
Grommet (cut-to-fit)
- Features
adjustable
- Factory colour
Light grey
- Material
Plastic
- (Ø)
32 mm
- Dim
(Ø) 32 mm
- Clamp Ø
0 mm
- Terminal Ø (max.)
28 mm
- Mounting hole
32 mm
- Board thickness (max.)
3.1 mm
IP54
- Halogen-free
Yes
- Content
50 pc(s)
- Manufacturer part #
2012358
- Type
EDS M32 LGR
- Mounting hole diameter
32 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1957043 OBO Bettermann EDS M32 LGR Grommet (cut-to-fit) Plastic Light grey 50 pc(s)
Description
The plug nipple can be adapted to the particular cable diameter step-wise cut.
