OBO Bettermann GES2 U 7011 Inset
EAN:
Part number:
Item no:
Technical specifications
- Design cover = rectangular
- Suitable for wet care = No
- Suitable for underfloor channel = Yes
- Suitable for hollow-ground = No
- Suitable for double-Ground = No
- Number of device cup = 1
- Material = polyamide (PA)
- Surface = structured
- With flooring recess = Yes
- The depth of the flooring recess = 5 mm
- Flooring protection frame = No
- Min. Installation depth = 70 mm
- Color = gray
- RAL-number =7011

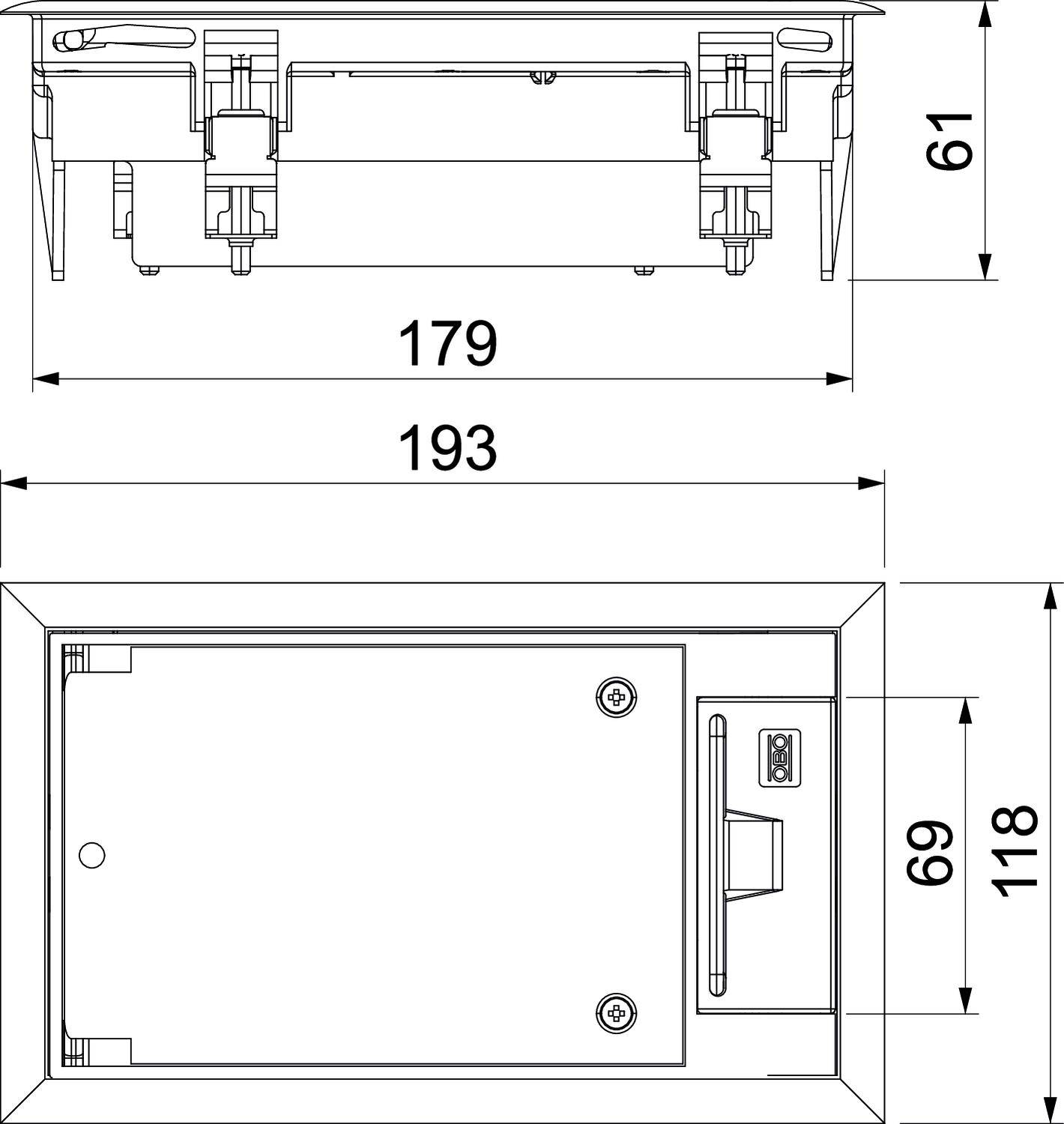

- Length Outer dimension = 194 mm
- Outside width dimension = 118 mm
- Length Installation dimension = 181 mm
- Installation dimensions: width = 105 mm
- Product type
Inset
- Length
194 mm
- Width
118 mm
- Dim
(L x W) 194 mm x 118 mm
- Factory colour
Grey
- Recess depth
70 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1957566 OBO Bettermann GES2 U 7011 Inset
Description
For dry rooms with dry-well-kept floor according to DIN VDE 0634 Part 1. Application: For the installation of device cups for individual installation devices of the power, telecommunications and data technology. When using multiple installation devices, the connection capacity can be increased. Design: The device inserts are halogen-free and consist of: Carpet protection framework including device cup insert frame with snap-in conductors for gradual lowering of the device cup in 5-mm intervals up to a maximum of 20 mm; hinged lid, in the carpet protection frame undetachable bearings, verrastbar zufallend, itself, including stable pressure recording plate made from 4 mm steel sheet, hot-dip galvanised, swivel cord outlet with a foam seal, retractable handle for opening the cover. Material: polyamide, visible matted surface. For the installation of two individual installation devices in a subway GB2. Including four mounting bracket enclosed.
