OBO Bettermann GES4 U 9011 Inset
EAN:
Part number:
Item no:
Technical specifications
- Design cover = rectangular
- Suitable for wet care = No
- Suitable for underfloor channel = Yes
- Suitable for hollow-ground = No
- Suitable for double-Ground = No
- Number of device cup = 2
- Material = polyamide (PA)
- The depth of the flooring recess = 5 mm
- Flooring protection frame = Yes
- Min. Installation depth = 70 mm
- Color = black

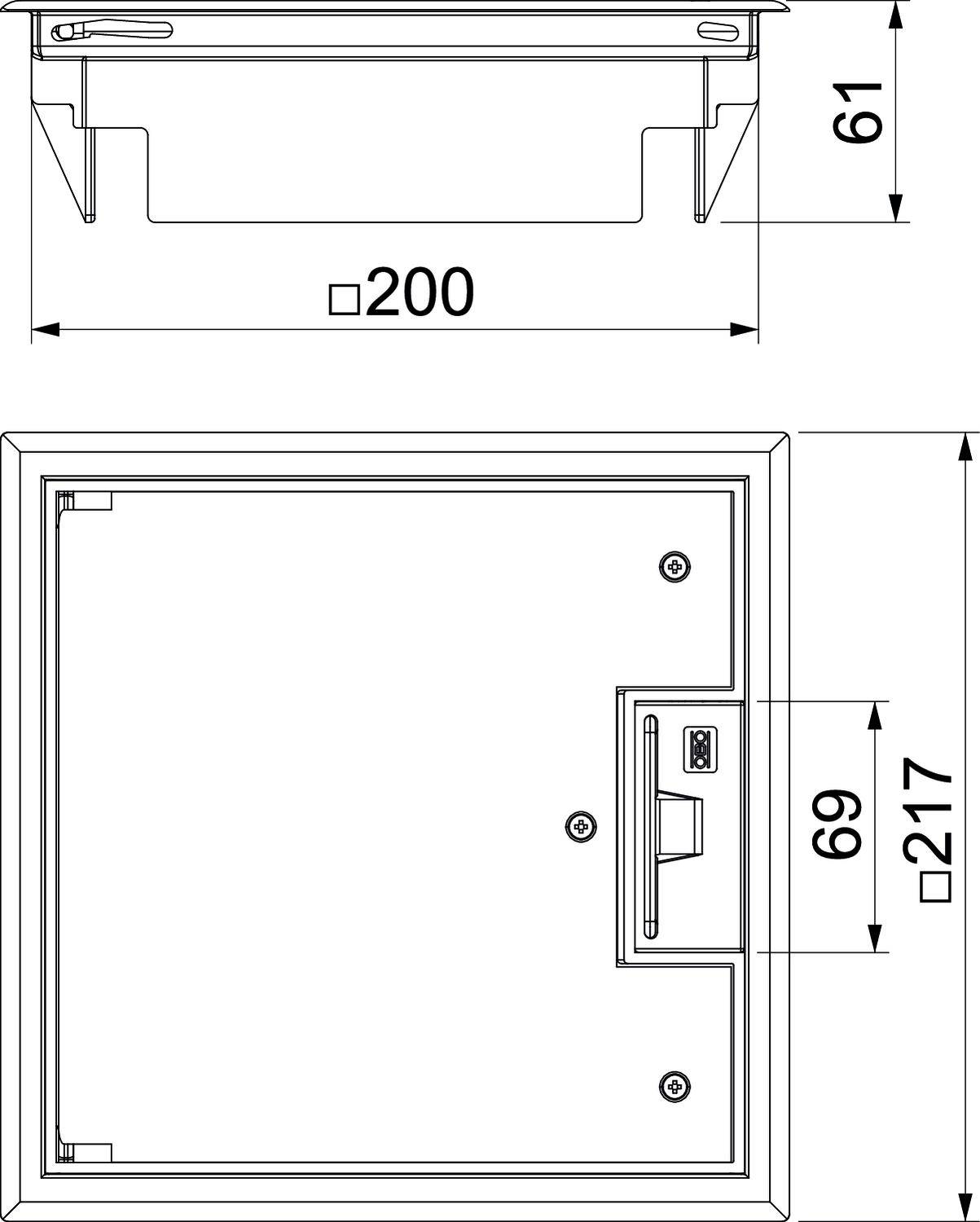

- Length Outer dimension = 217 mm
- Outside width dimension = 217 mm
- Length Installation dimension = 200 mm
- Installation dimensions: width = 200 mm
- Product type
Inset
- Length
217 mm
- Width
217 mm
- Dim
(L x W) 217 mm x 217 mm
- Factory colour
Black
- Recess depth
70 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1964017 OBO Bettermann GES4 U 9011 Inset
Description
Insert for 4 installation devices in 2 GB2 for use in channel systems, with universal mounting brackets, with carpet protection framework, hinged lid and cord outlet made of polyamide
