OBO Bettermann GES6 U 9011 Inset
EAN:
Part number:
Item no:
Technical specifications
- Design cover = rectangular
- Suitable for wet care = No
- Suitable for underfloor channel = Yes
- Suitable for hollow-ground = No
- Suitable for double-Ground = No
- Number of device cup = 3
- Material = polyamide (PA)
- The depth of the flooring recess = 5 mm
- Flooring protection frame = Yes
- Min. Installation depth = 70 mm
- Color = black
- Length Outer dimension = 270 mm
- Outside width dimension = 214 mm
- Length Installation dimension = 253 mm
- Installation dimensions: width = 200 mm
- Product type
Inset
- Length
270 mm
- Width
214 mm
- Dim
(L x W) 270 mm x 214 mm
- Factory colour
Black
- Recess depth
70 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1956188 OBO Bettermann GES6 U 9011 Inset
Description

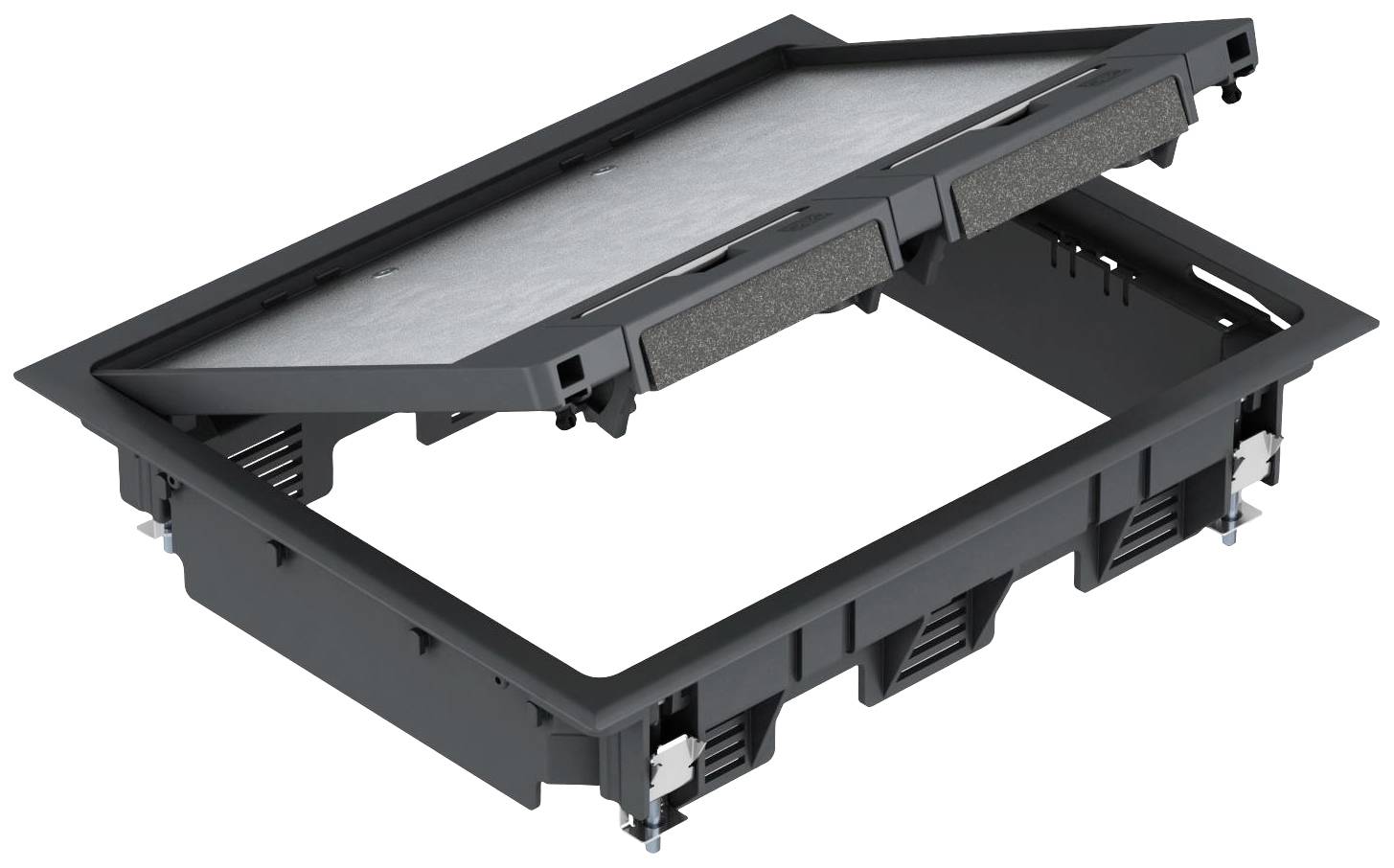

For dry rooms with dry-well-kept floor according to DIN VDE 0634 Part 1. Application: For the installation of device cups for individual installation devices of the power, telecommunications and data technology. When using multiple installation devices, the connection capacity can be increased. Design: The device inserts are halogen-free and consist of: Carpet protection framework including device cup insert frame with snap-in conductors for gradual lowering of the device cup in 5-mm intervals up to a maximum of 20 mm; hinged lid, in the carpet protection frame undetachable bearings, verrastbar zufallend, itself, including stable pressure recording plate made from 4 mm steel sheet, hot-dip galvanised, swivel cord outlet with a foam seal, retractable handle for opening the cover. Material: polyamide, visible matted surface. For the installation of six single installation devices in three subway GB2. Including six mounting bracket enclosed.
