OBO Bettermann GES6M-2 10U Inset
EAN:
Part number:
Item no:
Technical specifications
- Design cover = rectangular
- Suitable for wet care = No
- Suitable for hollow-ground = Yes
- Suitable for double-Ground = Yes
- Number of device cup = 3
- Material = rust free steel
- With flooring recess = Yes
- The depth of the flooring recess = 10 mm
- Flooring protection frame = Yes
- Min. Installation depth = 80 mm
- Color = other

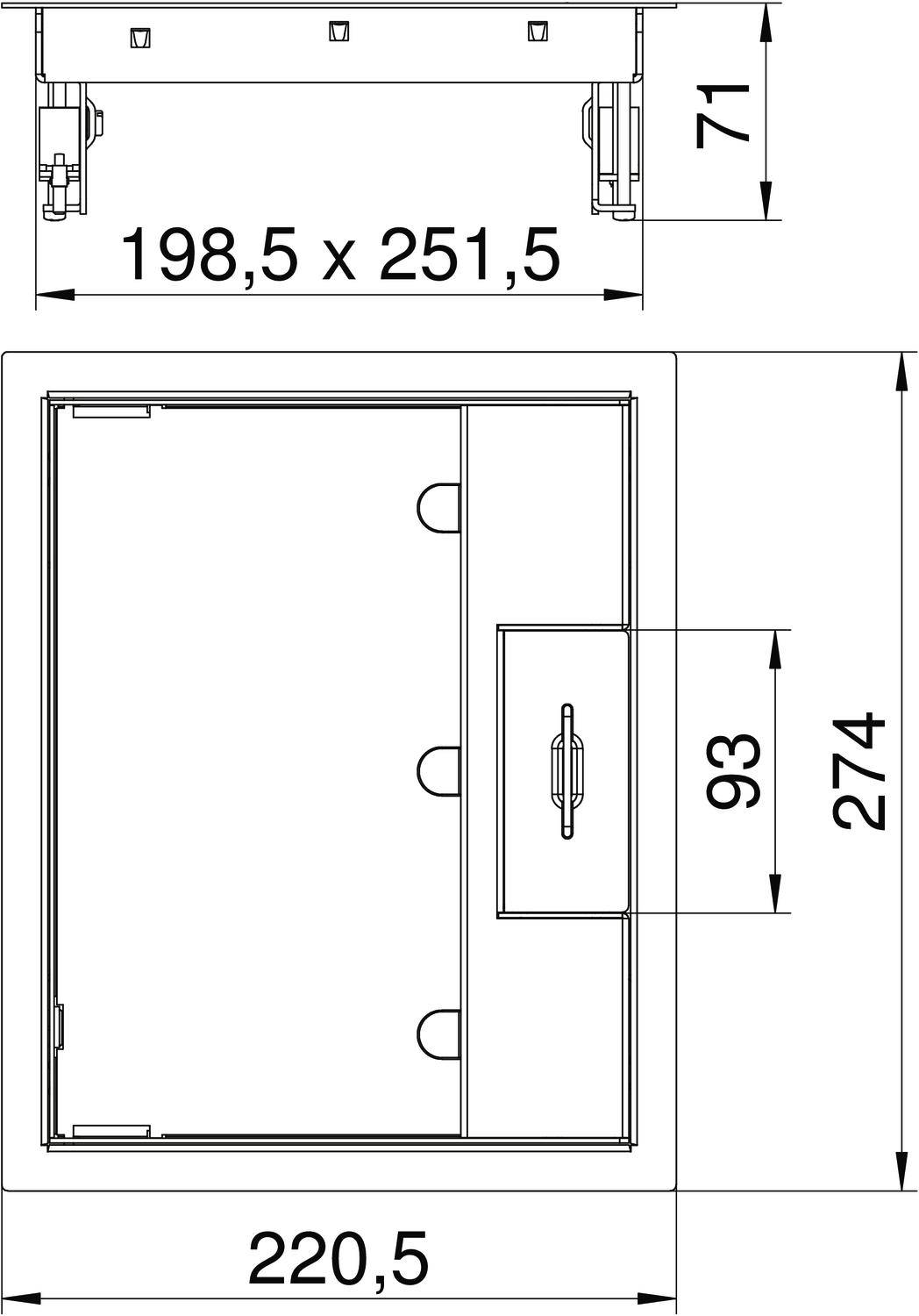

- Length Outer dimension = 274 mm
- Outside width dimension = 220,5 mm
- Length Installation dimension = 253 mm
- Installation dimensions: width = 200 mm
- Product type
Inset
- Length
274 mm
- Width
220.5 mm
- Dim
(L x W) 274 mm x 220.5 mm
- Recess depth
80 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1958018 OBO Bettermann GES6M-2 10U Inset
Description

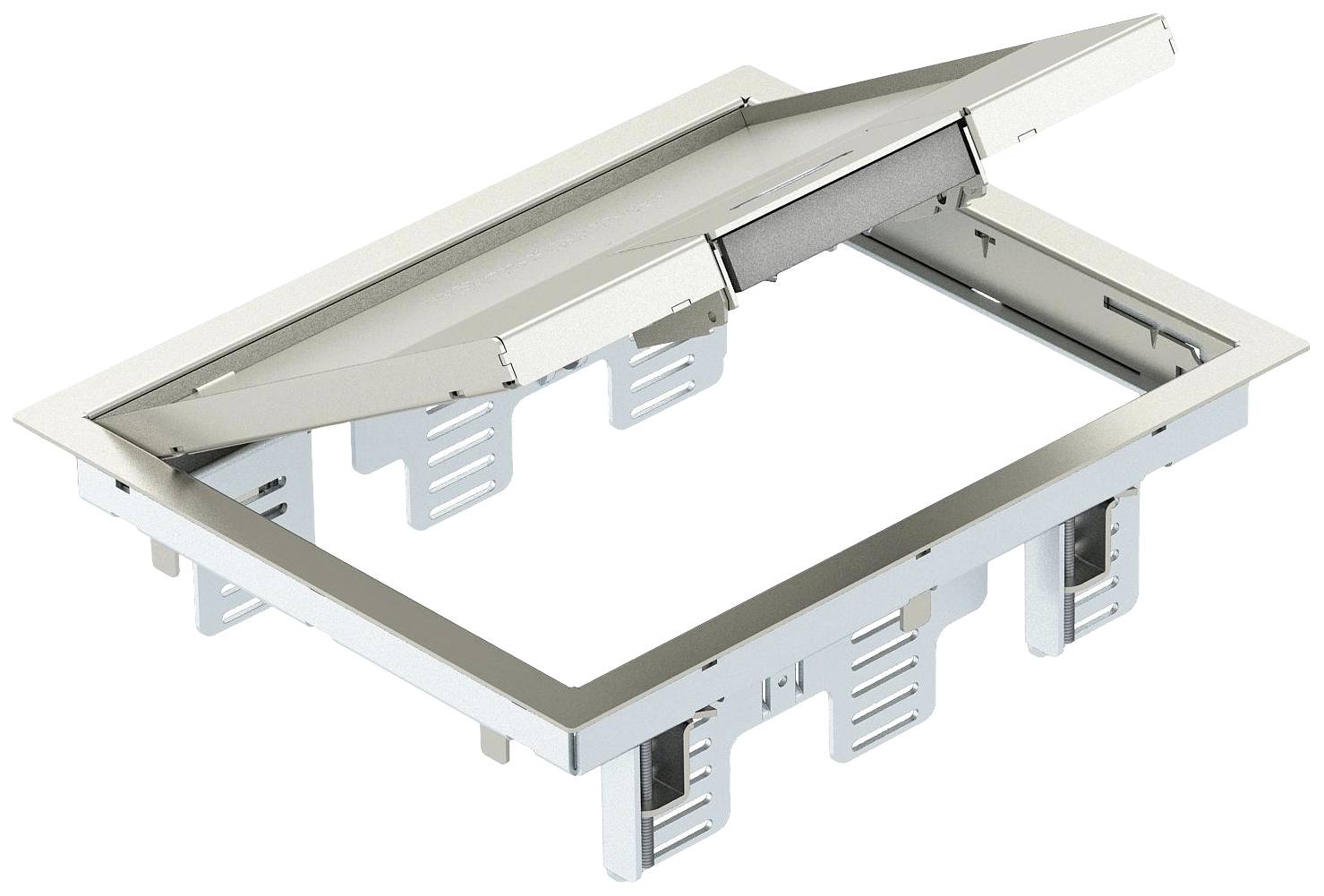

Insert with cord outlet for use in underground channel systems and double bottom. Mounting bracket with a clamping range up to 60 mm thickness. Cord outlet, carpet protective frame and hinged lid made of stainless steel, snap conductor made of galvanized steel. There are up to 9 devices module 45 can be installed.
