OBO Bettermann GESR4 U 7011 Inset
EAN:
Part number:
Item no:
Technical specifications
- Design cover = round
- Suitable for wet care = No
- Suitable for underfloor channel = Yes
- Suitable for hollow-ground = Yes
- Suitable for double-Ground = Yes
- Number of device cup = 2
- Material = polyamide (PA)
- The depth of the flooring recess = 5 mm
- Flooring protection frame = Yes
- Min. Installation depth = 70 mm
- Color = gray
- RAL-number =7011
- Outer diameter = 228 mm
- Installation diameter = 215 mm
- Product type
Inset
- (Ø)
228 mm
- Dim
(Ø) 228 mm
- Factory colour
Grey
- Recess depth
70 mm
- Outside Ø
228 mm
- Recess diameter
215 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1961637 OBO Bettermann GESR4 U 7011 Inset
Description

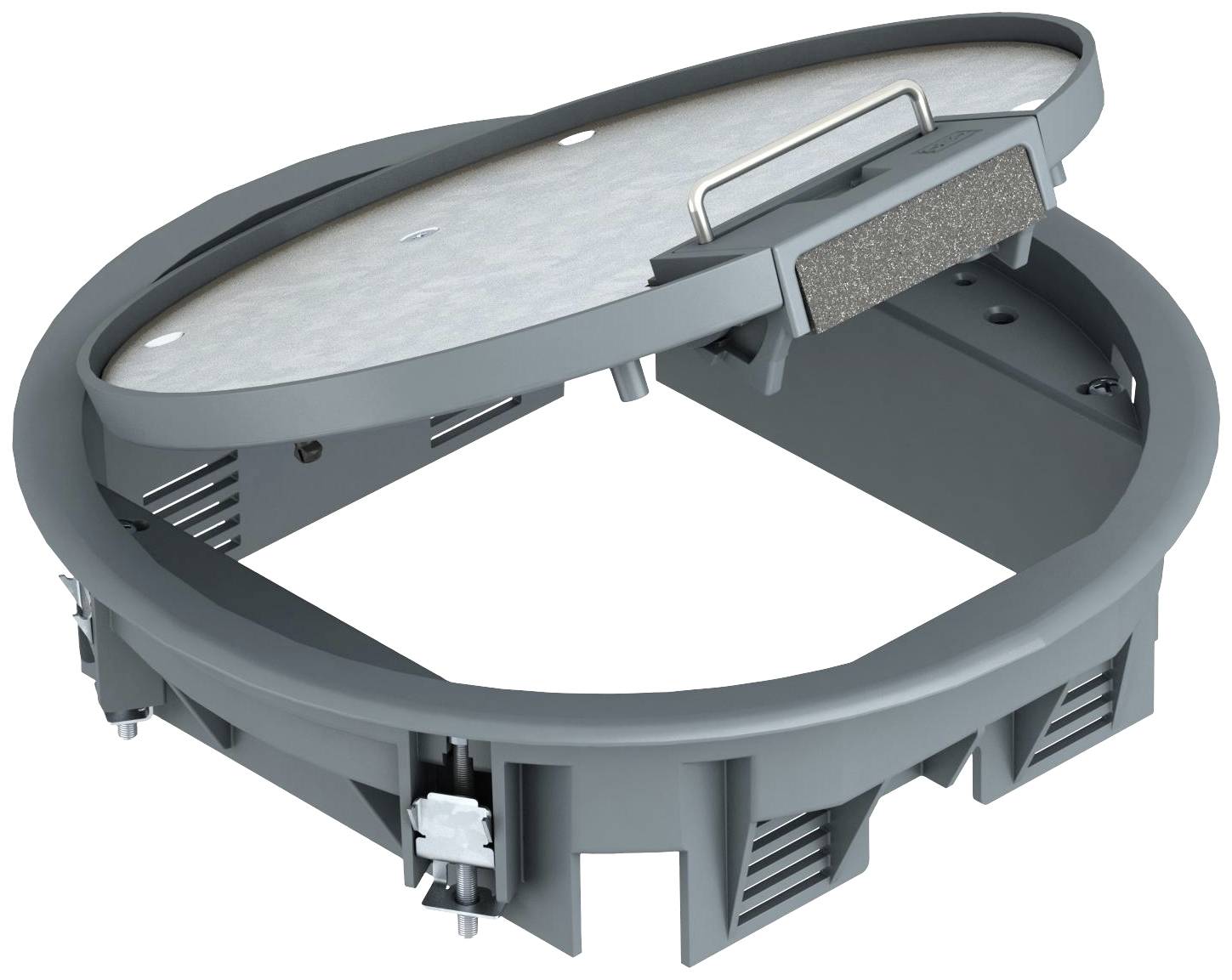

Device use around for 4 installation devices in 2 GB 2 for universal use in channel systems, double and hollow floors. Carpet protection framework, hinged lid and cord outlet made of polyamide. Flooring recess in the lid 5 mm
