OBO Bettermann GESR9 U 9011 Inset
EAN:
Part number:
Item no:
Technical specifications
- Number of appliance cups: 3
- Lid type: Round

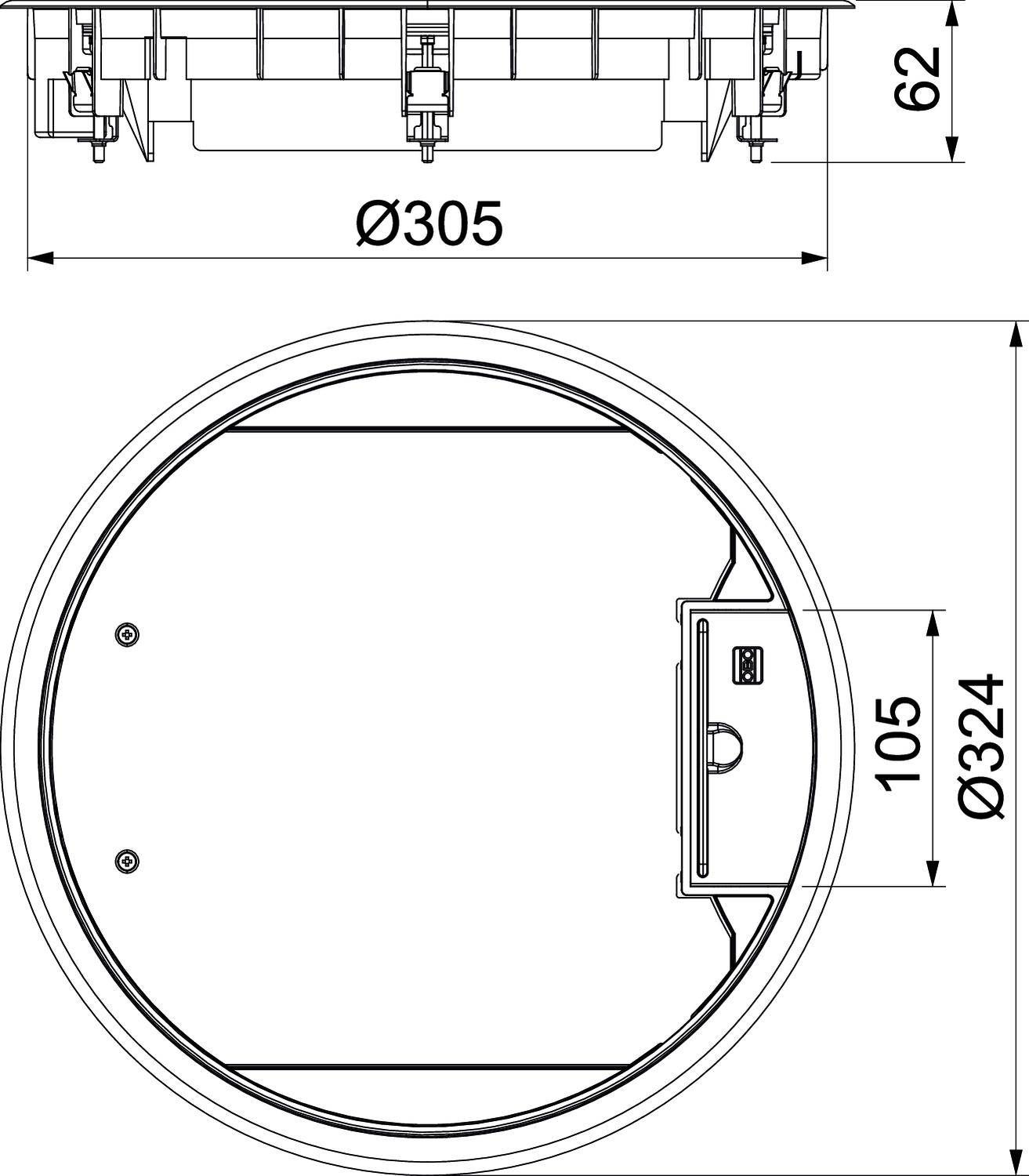

- Outer diameter: 324 mm
- Floor covering protection frame: Yes
- External width 324 mm
- Width of installation: 304 mm
- Installation diameter 304 mm
- Colour, black
- Suitable for raised floor installation: Yes
- Suitable for hollow floor installation: Yes
- Suitable for wet care: no.
- Suitable for underfloor duct: Yes
- Length of outer dimensions 324 mm
- Length of installation dimension 304 mm
- Min Installation depth 73 mm
- With floor covering recess: Yes
- Depth of floor recess: 5 mm
- Material: Polyamide (PA)
- Product type
Inset
- Height
100 mm
- Width
200 mm
- Dim
(W x H x D) 200 x 100 x 250 mm
- Depth
250 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2292272 OBO Bettermann GESR9 U 9011 Inset
Description

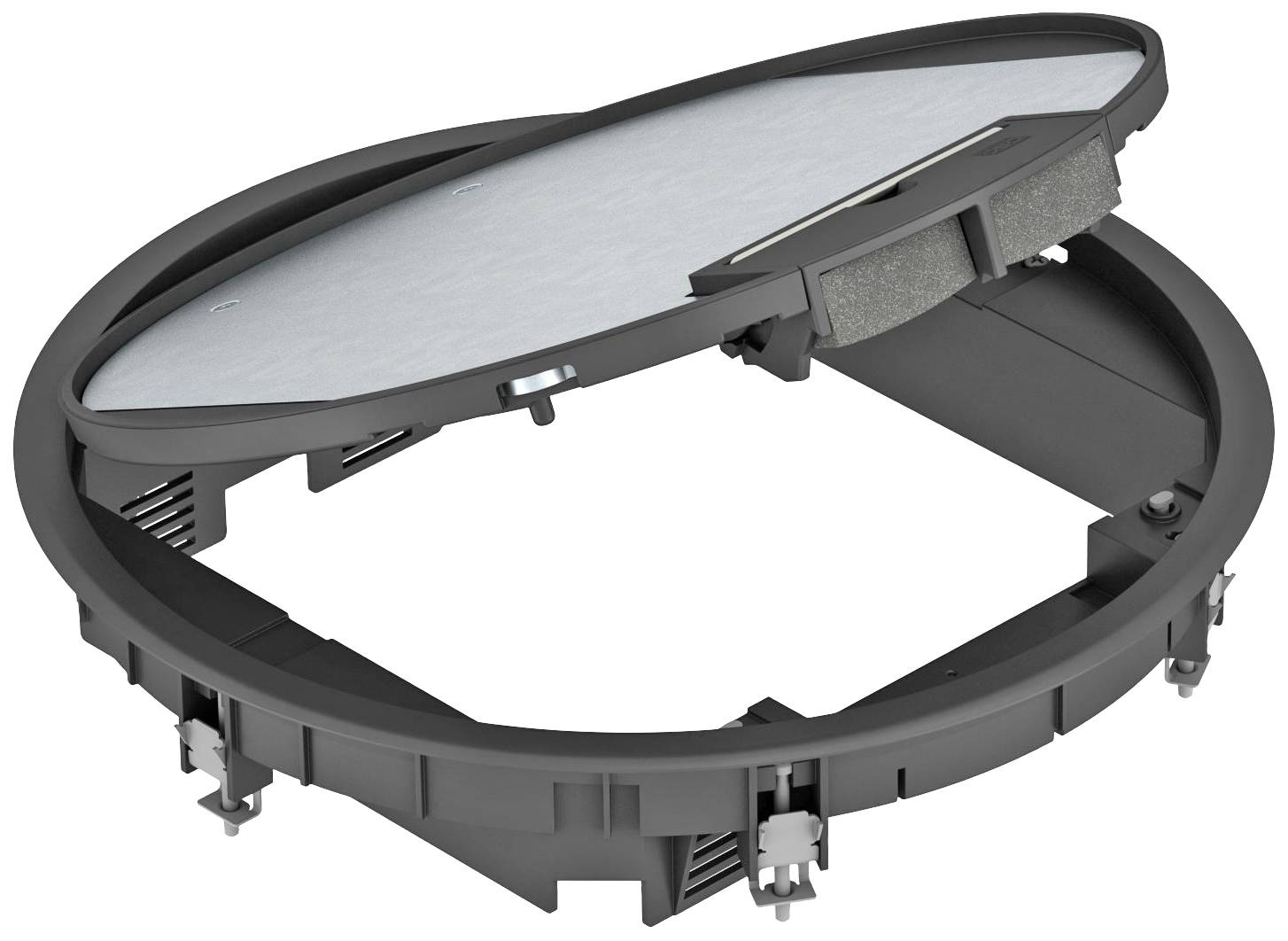

Round device insert for 9 standard (EK type) or 12 module 45 installation devices in 3 GB3 device cups, for universal use in duct systems, double and hollow floors. Mounting hole dia. 305 mm. Carpet protection frame, hinged lid and cord outlet made of polyamide. For floor covering thickness 5 mm.
