OBO Bettermann GESRC2 Inset

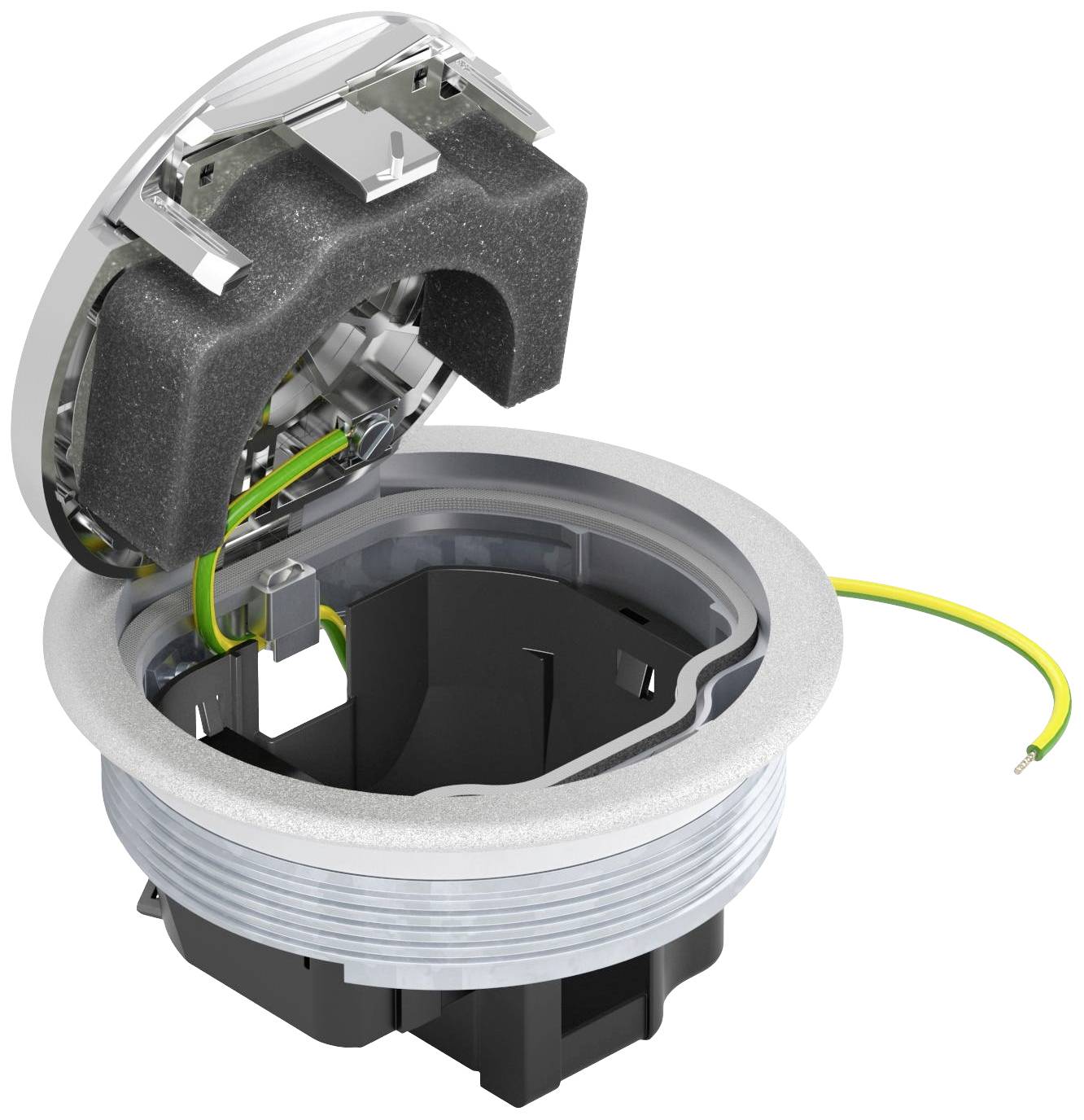

'Round floor socket with a removable lid, internal cable visible. Earthed connection, demonstrates internal cable management.'

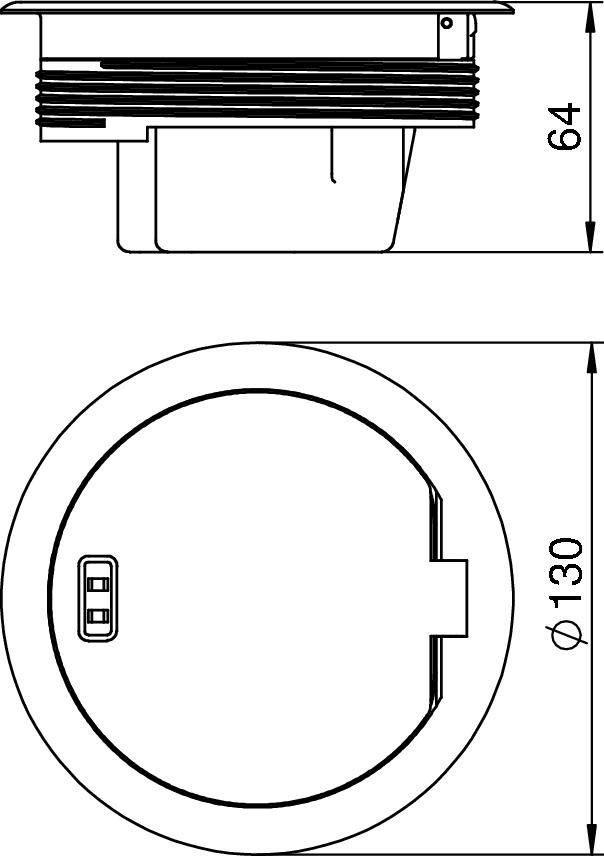

Technical drawing of a circular ventilation grille with dimensions of 64 mm depth and 130 mm diameter, side and top view.
1/2
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Design cover = round
  • Suitable for wet care = Yes
  • Suitable for underfloor channel = Yes
  • Suitable for hollow-ground = No
  • Suitable for double-Ground = No
  • Material = zinc die-cast
  • Chrome-plated surface =
  • With flooring recess = No
  • Flooring protection frame = Yes
  • Color = other
  • Outer diameter = 130 mm
Product type

Inset

(Ø)

130 mm

Height

70 mm

Dim

(Ø x H) 130 mm x 70 mm

Outside Ø

130 mm

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1964722 OBO Bettermann GESRC2 Inset

Description

Round installation unit with flooring protection framework for direct installation in the connection box a UDL2-120. In the closed state, the installation unit wet maintained. The Minimum mounting depth is 70 mm. Cover plate and socket of the series module 45 are to be ordered separately.
