OBO Bettermann MS 22 L 3M FT 1122742 Rail mount 3 m 3 m
EAN:
Part number:
Item no:
Product type
Rail mount
Length
3 m
Width
40.00 mm
Type
Simple profile
Height
22.50 mm

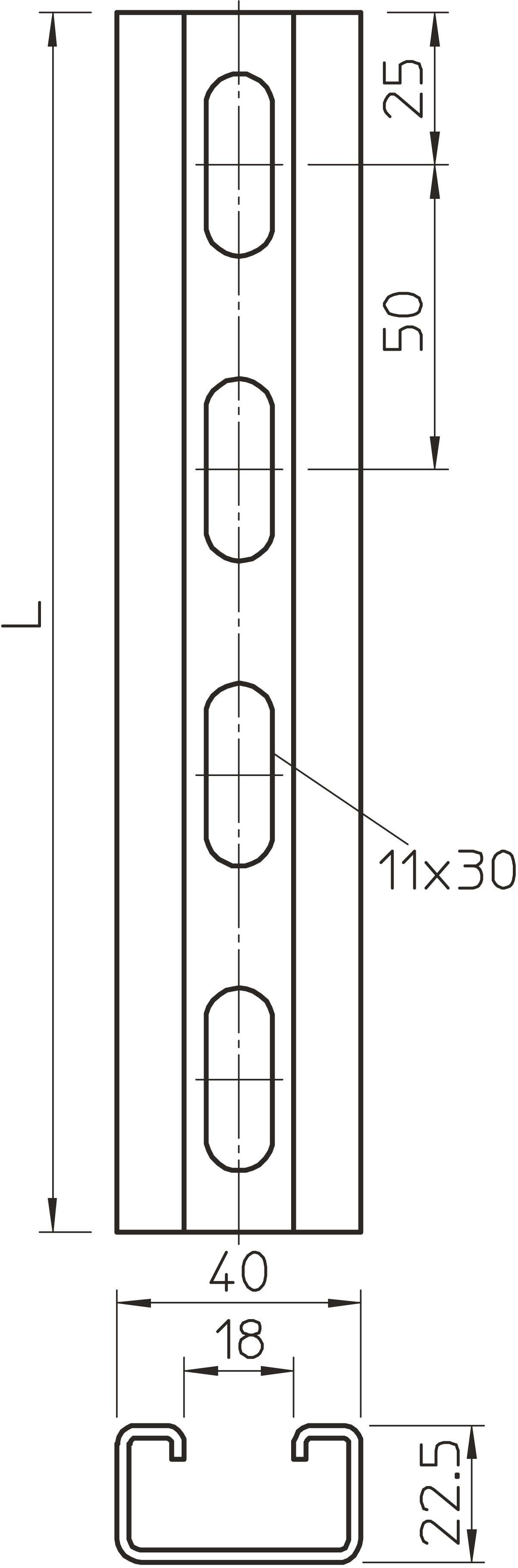

Technical specifications
- Length: 3000 mm
- Width 40 mm
- Height: 22.5 mm
- Slot width 18 mm
- Material thickness 2 mm.
- Profile: C-Profile
- Design: Simple profile
- Type of punching: Back perforated
- Hole width 11 mm
- With teeth: No.
- Cancelled: No.
- Surface moment of inertia ly: 1.19 cm4
- Surface moment of inertia LZ: 4.46 cm4
- Resistance torque Wy: 1.05 cc
- Resistance torque WZ: 2.23 cm3
- Suitable for functional preservation: No.
- Material: Steel
- Material quality: Other
- Surface protection: Hot-dip galvanized
- Weight: 1.51 kg
- Product type
Rail mount
- Type
Simple profile
- Length
3 m
- Width
40.00 mm
- Height
22.50 mm
- Dim
(L x W x H) 3 m x 40.00 mm x 22.50 mm
- Weight
1.51 kg
- Content
3 m
- Type
MS 22 L 3M FT
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3406960 OBO Bettermann MS 22 L 3M FT 1122742 Rail mount 3 m 3 m
Description

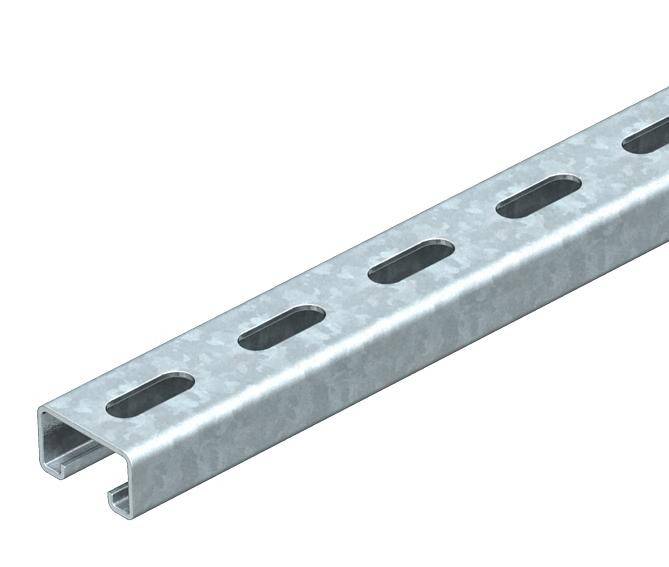

Heavy C-section rail for individual installation of carry constructions for e.g. Cable channels or as console for control cabinets. Can also be used for laying cables, in conjunction with U-base clamps.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 3 m mounting rail
