OBO Bettermann MTM 2D Mounting plate

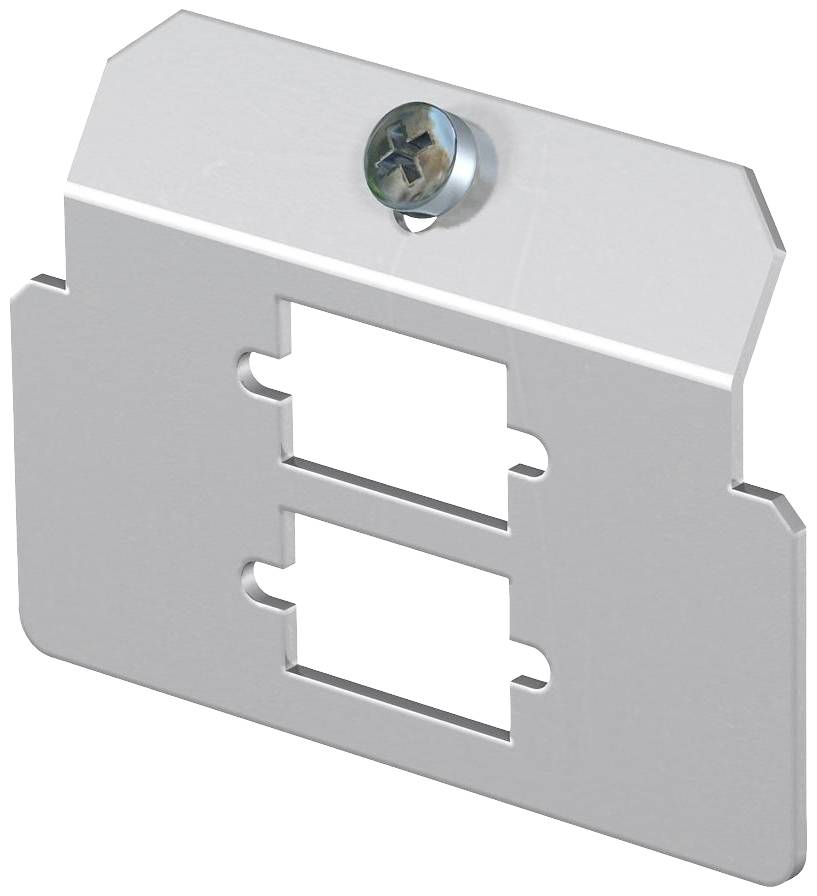

Metal plate with two rectangular cut-outs and a screw at the top. Used for mounting in electrical installations.

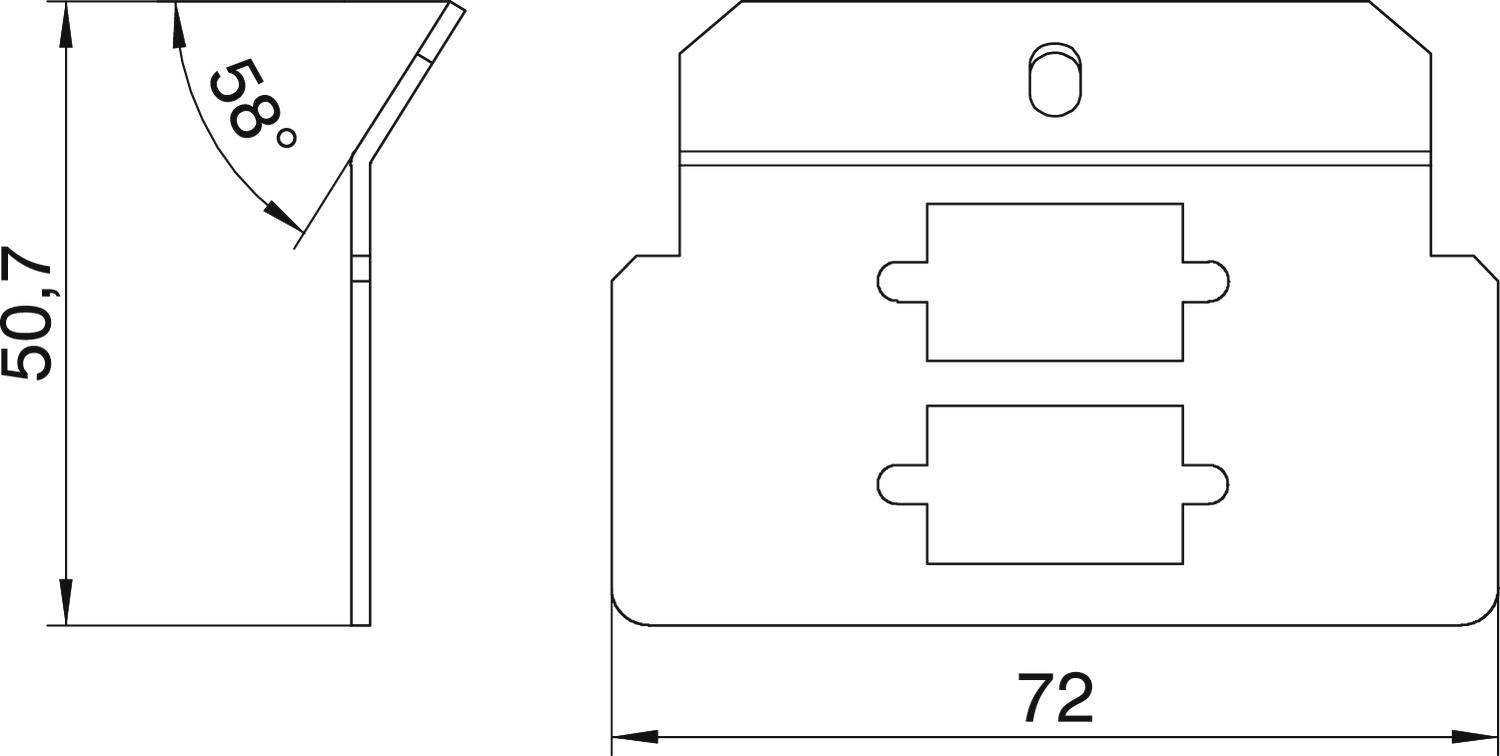

Technical drawing of an angle with dimensions: Height 50.7 mm, Angle 58 degrees, Width 72 mm. Shows sectional view and front elevation.
1/2
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • The number of in-built devices = 2
  • Length = 72 mm
  • Depth = 48.6 mm
  • Design = carrier form
  • Type of installation device = Lock
  • Number of the strain reliefs = 0
  • Material = Metal
Product type

Mounting plate

Length

72 mm

Depth

48.6 mm

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1963434 OBO Bettermann MTM 2D Mounting plate

Description

Carrier plate for the admission of 2 connection sockets of the data technology, audio or video technology type D-Sub 9.
