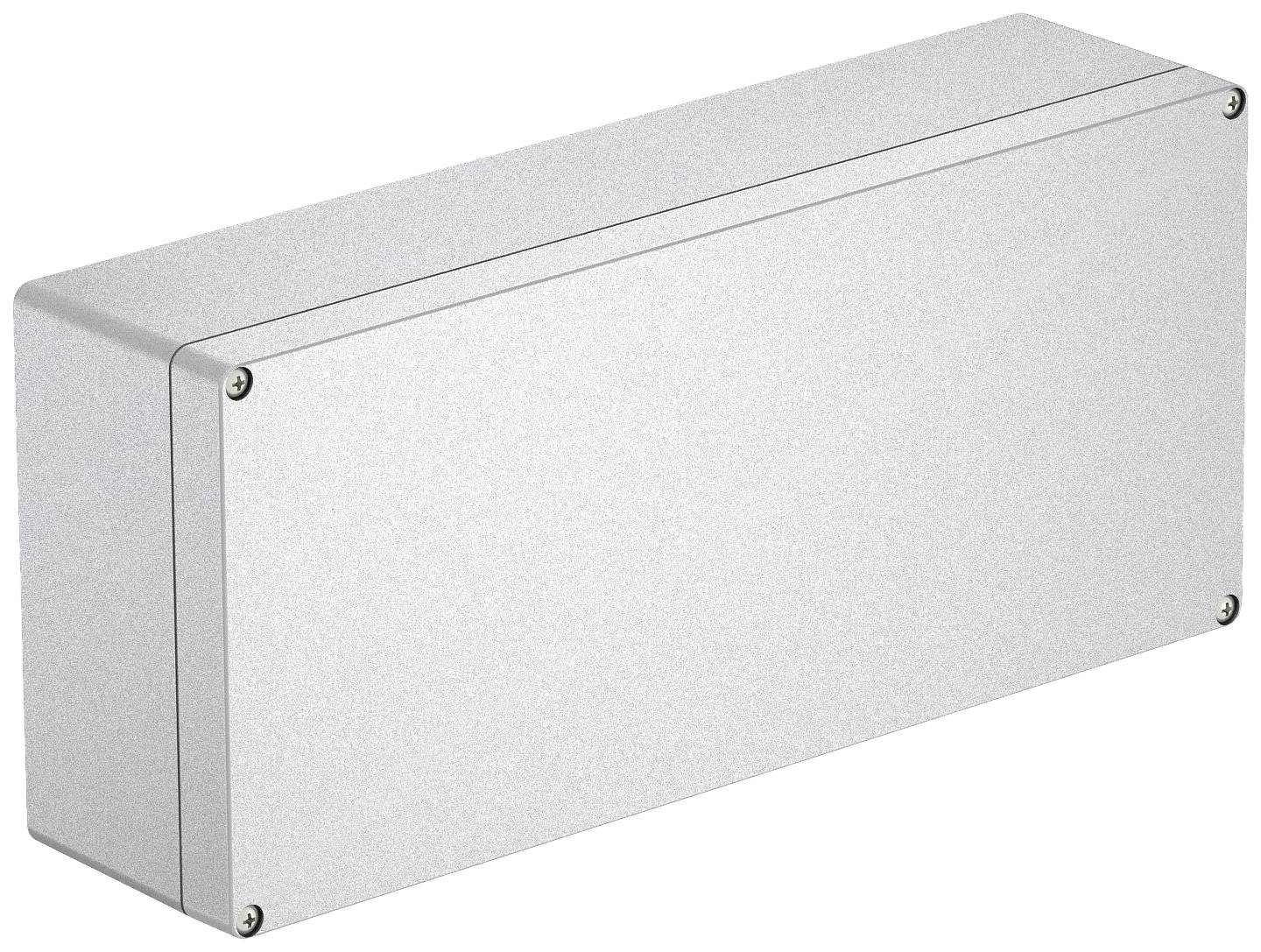

OBO Bettermann Mx 361609 CR3 Casing 160 x 91 x 360 Aluminium 1 pc(s)
Packaging type
Piece
Product type
Casing
Material
Aluminium
IP rating
IP66
Width
160 mm
EAN:
Part number:
Item no:
Technical specifications
- Design cover: closed
- Growing possibility: yes
- With mounting plate: no
- Suitable for outdoor use: yes
- Suitable for lightning protection: no
- Impact strength: other
- Packaging type
Piece
- Product type
Casing
- Features
shockproof
- Material
Aluminium
IP66
- Width
160 mm
- Height
91 mm
- Content
1 pc(s)
- Type
Mx 361609 CR3
- Dim

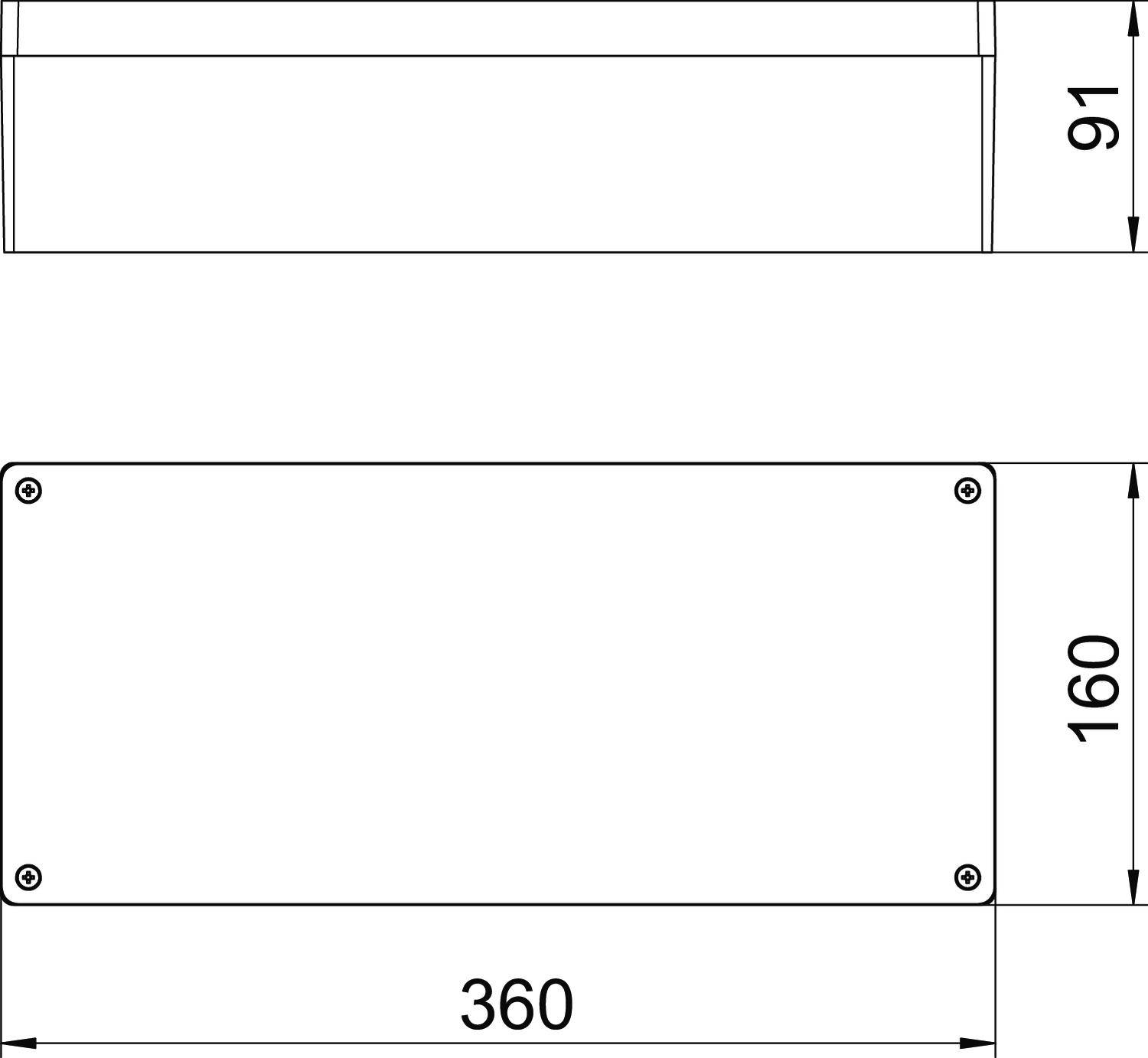

(W x H x D) 160 x 91 x 360 mm
- Manufacturer part #
2011398
- Depth
360 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1959053 OBO Bettermann Mx 361609 CR3 Casing 160 x 91 x 360 Aluminium 1 pc(s)
Description
Robust aluminum housing for mechanical engineering and automation technology. With their outstanding mechanical and thermal properties is the mx-serie from OBO for extreme demands in different areas. Therefore also ideal for use in the industry, the harbor and marine engineering as well as in the agriculture. They protect the electrical installation against high degree of stress. Extreme cold or heat resistance are the products as well as vandalism and the effect of the impact on streets, railways or in tunnels. The aluminum housings are blasted and are each with cover, stainless steel screws, seal and 2 or 4 earthing screws supplied.
