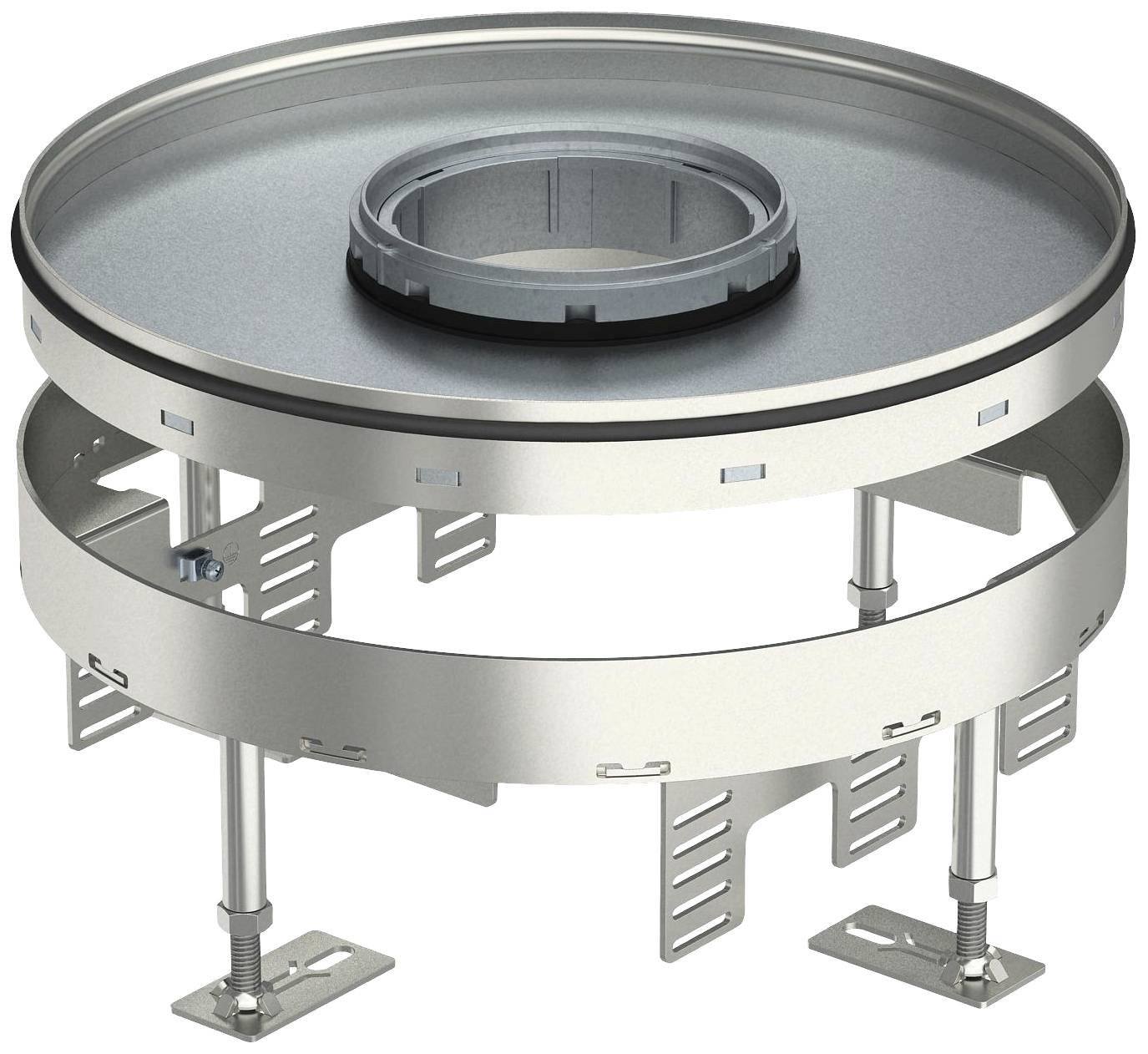

OBO Bettermann RKFR2 9 SL2V2 25 Heavy-duty duct mount
EAN:
Part number:
Item no:
Technical specifications
- Nominal size = 304 mm
- Cassette height = 109 mm
- Flooring recess = 25 mm
- Floor Care = wet
- Design = round
- Suitable for underfloor boxes structure =
- Material = rust free steel
- The number of cable outlets = 1
- Design cable outlet = tube
- Material cable outlet = rust free steel
- Color Cable Outlet = nature
- Device support for recording device cups = Yes
- The number of in-built devices = 9
- Number of device cup = 3
- Product type
Heavy-duty duct mount
- (Ø)
304 mm
- Height
109 mm
- Dim
(Ø x H) 304 mm x 109 mm
- Suitable for
Underfloor boxes structure
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1962080 OBO Bettermann RKFR2 9 SL2V2 25 Heavy-duty duct mount
Description
Round cassette heavy load for tube in nominal size R9 for the installation of installation devices in channel systems, double and hollow ground, in dry or wet well-kept floors. Load Class 2 to 20 kN
