OBO Bettermann RKR2 7V 25 Cartridge

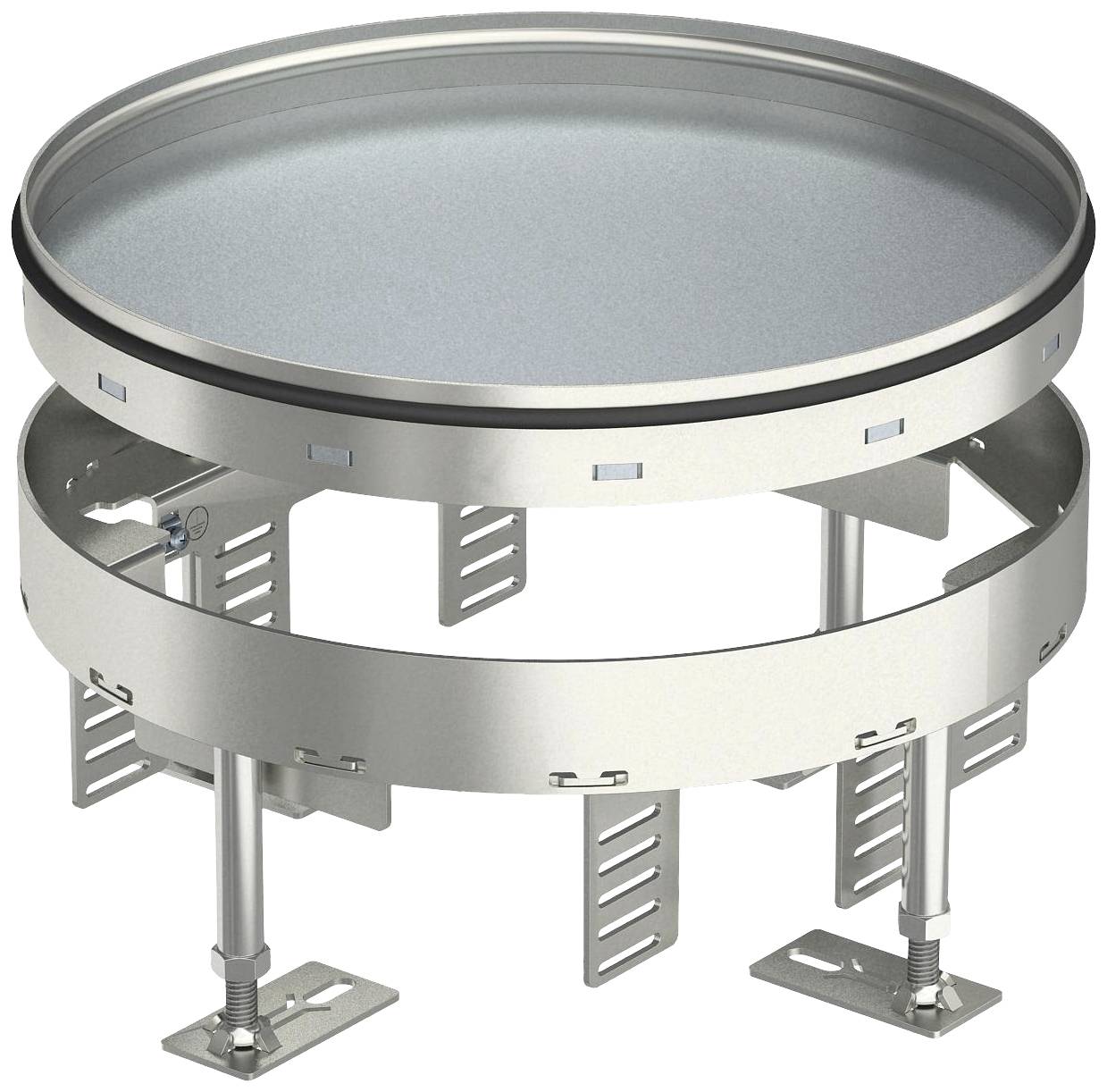

A silver, round metal lid with anchoring elements, possibly part of an industrial ventilation system or pressure compensation cover.

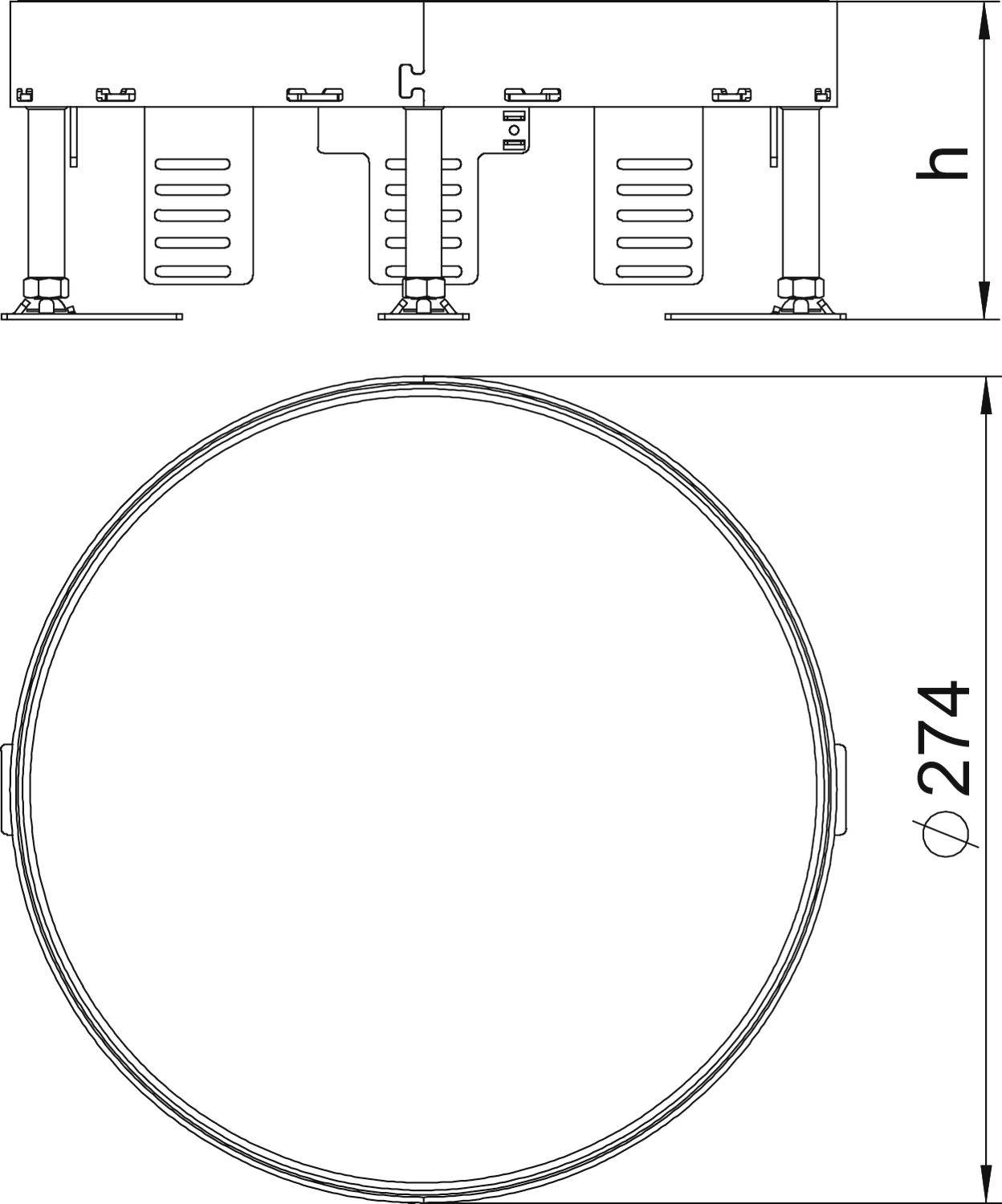

Technical drawing of a round object with a diameter of 274 mm. Side view shows structure with standing feet and height h.
1/2
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Nominal size = 274 mm
  • Cassette height = 105 mm
  • Min. Installation depth = 105 mm
  • Levelling height = 105. .155 mm
  • The depth of the flooring recess = 25 mm
  • Floor Care = wet
  • Design = round
  • Material = rust free steel
  • The number of cable outlets = 0
  • Device support for recording device cups = No
  • Installation diameter = 275 mm
  • Number of device cup = 3
Product type

Cartridge

(Ø)

275 mm

Height

105 mm

Dim

(Ø x H) 275 mm x 105 mm

Recess depth

105 mm

Recess diameter

275 mm

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1962074 OBO Bettermann RKR2 7V 25 Cartridge

Description

For the production of a revision facilitates cassette blind opening.

This text is machine translated.
