OBO Bettermann UTC4 G OR2GN1 Socket
EAN:
Part number:
Item no:
Technical specifications
- Socket Combination = 1-way and 2-way
- The number of connection lines = 2
- Connector system system bound = Yes
- Cross-section = 2.5 mm²
- Length of the cable = 0.3 m

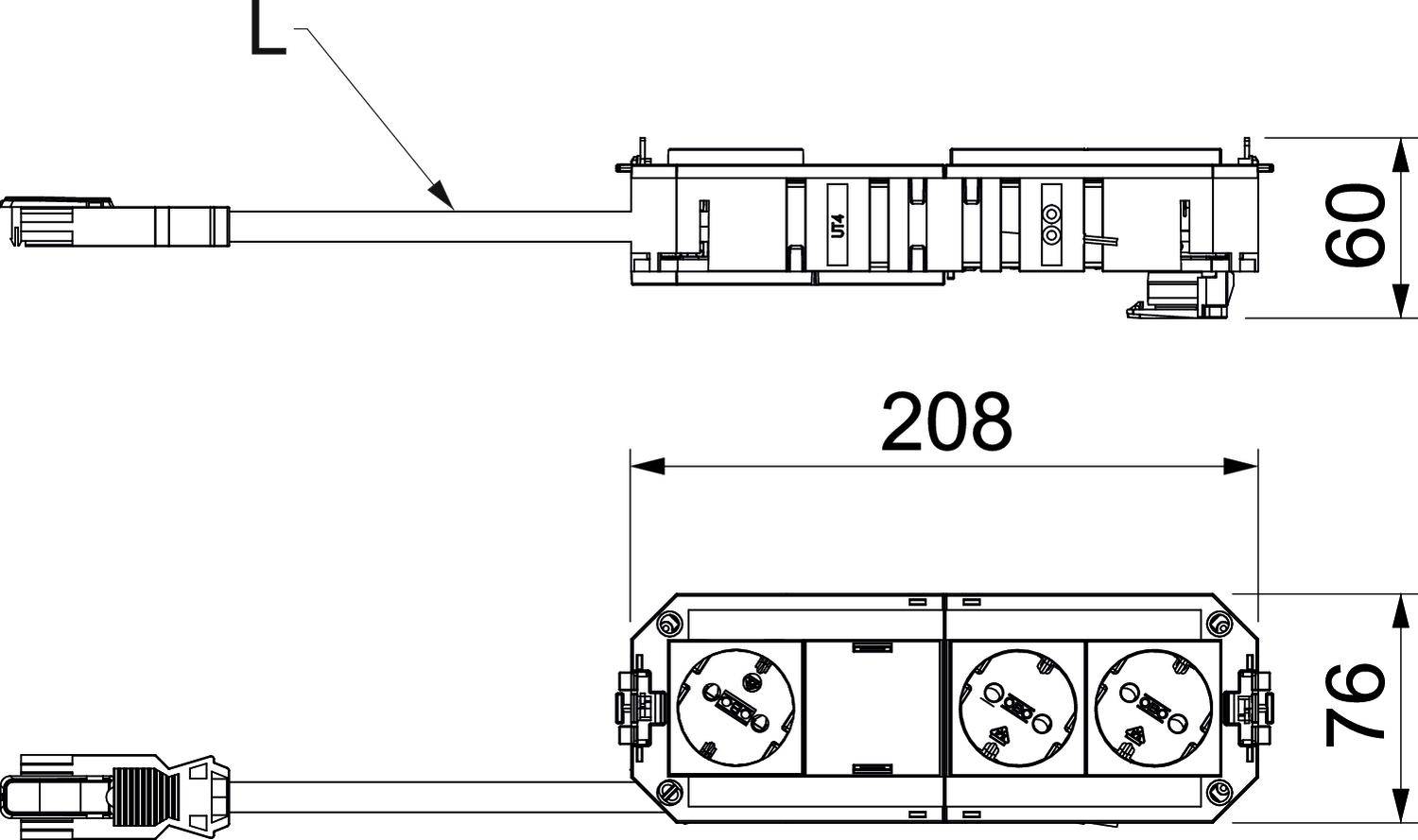

- Length = 218 mm
- Product type
Socket
- Length
218 mm
- Cross section
2.5 mm²
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1964723 OBO Bettermann UTC4 G OR2GN1 Socket
Description

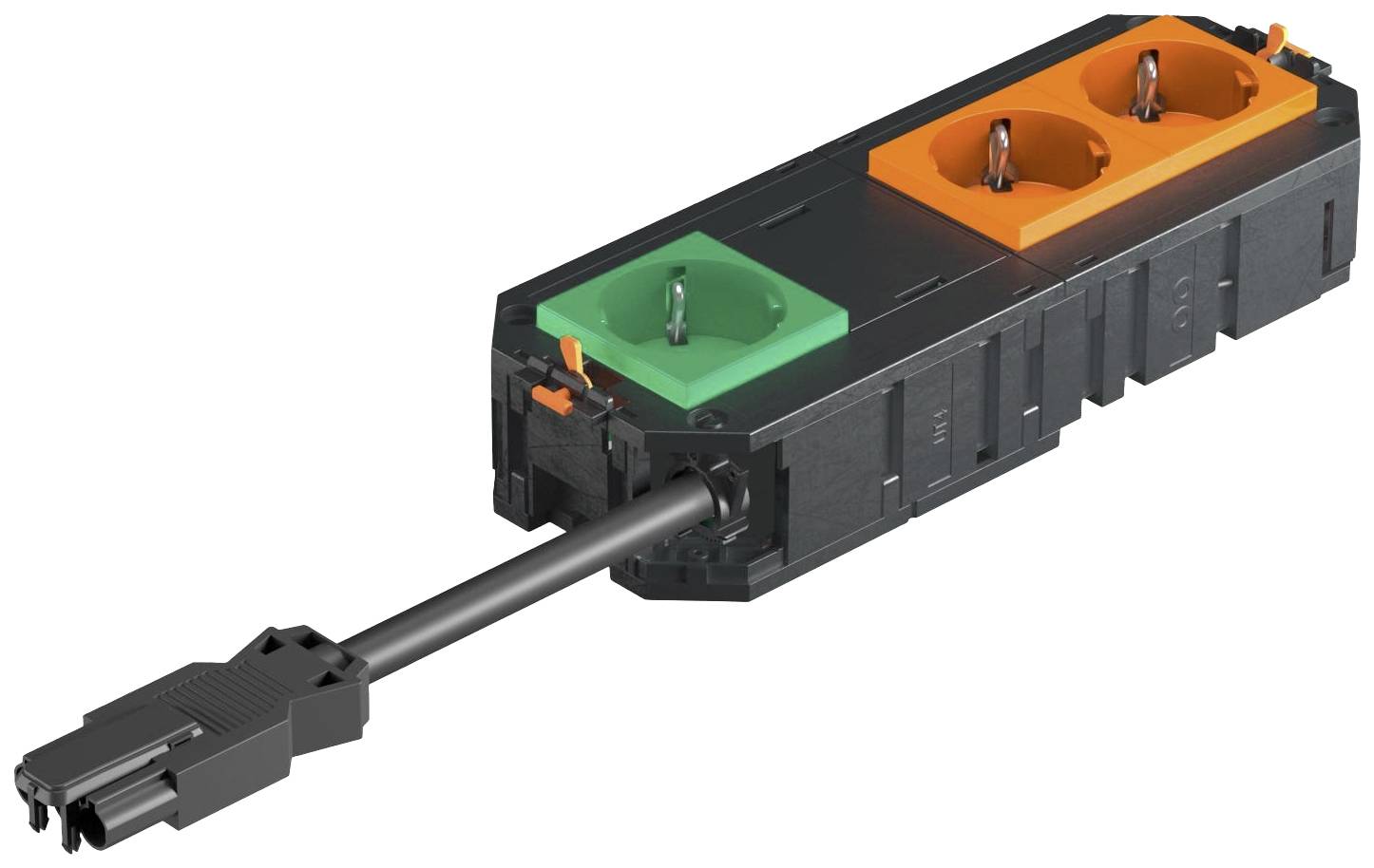

Universal carrier Connect Ready to connect universal carrier Connect UTC4 with Wieland connector system GST 18. Suitable for the connection cables VL and the device installation units of the nominal size R7, R9 and 9. Other variants of the ready universal carrier are available on request or via the self-configuration. The Ready to connect universal carrier UTC4 has two pre-installed 33° earthing contact sockets in orange and a 33° earthing contact socket-outlet in mint green with 16 A. A blind cover enables the subsequent installation of an installation series device module 45 or module 45-connect.
