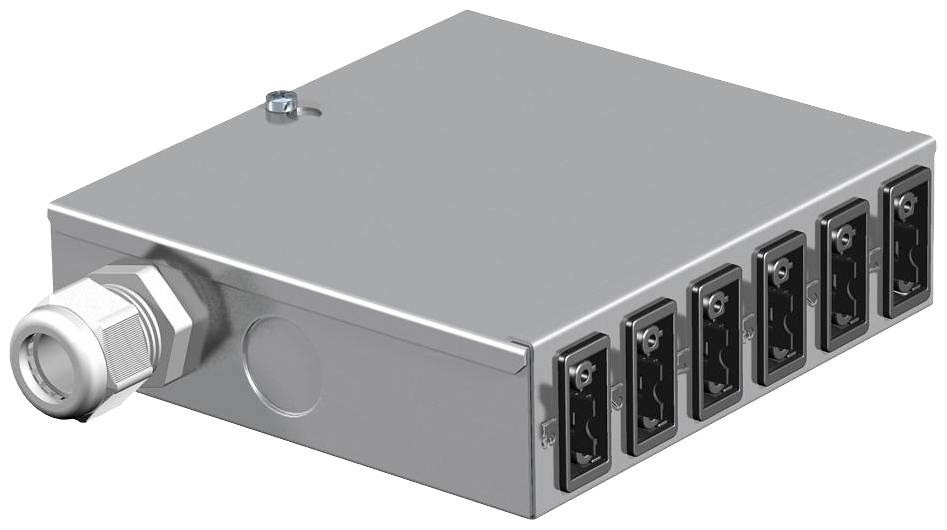

OBO Bettermann UVS-6S2 Underfloor splitter
EAN:
Part number:
Item no:
Technical specifications
- Input = 5-pin
- Suitable for feed-through wiring = No
- The number of input circuits = 1
- Cross-section of the connection line = 4 mm²
- Connection type = plug-in system
- Number of clips per phase = 2
- The color of the connector system = black
- Connector system system bound = Yes
- Material of the housing = Metal
- Product type
Underfloor splitter
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1963985 OBO Bettermann UVS-6S2 Underfloor splitter
Description
1 three-phase circuit. Output: 1 x L1, 1 x L2, 1 x L3. Plug connector: 6x black type GST 18i equipped and pre-wired. Input: a three-phase circuit, output: 6 self-locking quick-assembly connector 3-pin, 16 A, Type GST 18i. Wiring internal: PVC cable H07V-U2,5. Connection external: Screwless plug-in terminal block 5-pin, for 0.5 - 4 mm ². 1 three-phase circuit. Output: 1 x L1, 1 x L2, 1 x L3. Plug connector: 6x black type GST 18i
