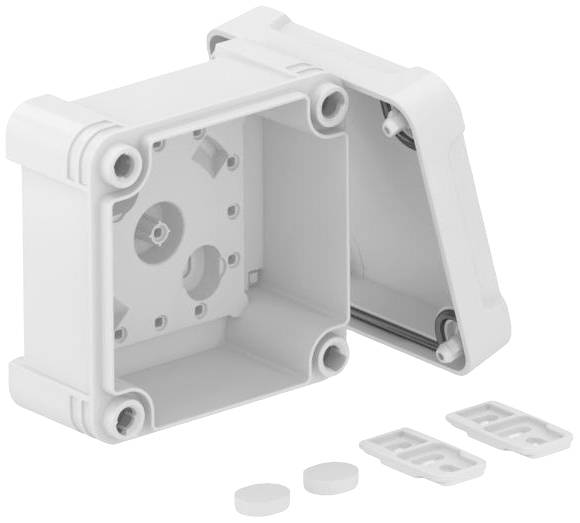

OBO Bettermann X01C LGR Casing 95 x 60 x 95 1 pc(s)
Packaging type
Piece
Product type
Casing
IP rating
IP67
Width
95 mm
Height
60 mm
EAN:
Part number:
Item no:
Technical specifications
- RAL-number: 7035
- Growing possibility: no
- Surface: other
- Suitable for outdoor use: yes
- Protection class: II
- Impact strength: IK08
- Packaging type
Piece
- Product type
Casing
- Features
waterproof
IP67
- Length
95 mm
- Width
95 mm
- Height
60 mm
- Dimensions
95 x 60 x 95 mm
- Content
1 pc(s)
- Type
X01C LGR
- Dim
(L x W x H) 95 x 95 x 60 mm
- Manufacturer part #
2005450
- Depth
95 mm
- Protection class
II
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1960395 OBO Bettermann X01C LGR Casing 95 x 60 x 95 1 pc(s)
Description
Sturdy empty housing of the X-series for creating individual electrical installations. They are suitable for indoor and outdoor use. When used in unprotected outdoor areas, the cable junction box against direct influences of the weather (e.g., through snow, wind, rain or sun). The cable junction box is tested according to DIN EN 60670-1, VDE 0606-1: 2014 (EN 60670-1:2005+Cor.:2007+Cor.:2010 + A1:2013) and DIN EN 60670-22, VDE 0606-22:2007 (EN 60670-22:2006). The cable junction box meets the requirements of the protection class IP67 according to DIN EN 60529, VDE test in accordance with the 0470-1: 2014 (EN 60529/AC:2016).
This text is machine translated.
This text is machine translated.
