OBO Bettermann X25C R LGR-TR Casing 202 x 126 x 286 1 pc(s)
Packaging type
Piece
Product type
Casing
IP rating
IP67
Width
202 mm
Height
126 mm
EAN:
Part number:
Item no:
Technical specifications
- Transparent cover/door: yes
- Growing possibility: no
- Surface: other
- Suitable for outdoor use: yes
- Protection class: II
- Impact strength: IK08
- Packaging type
Piece
- Product type
Casing
- Features
Cover (clear)
IP67
- Width
202 mm
- Height
126 mm
- Dimensions

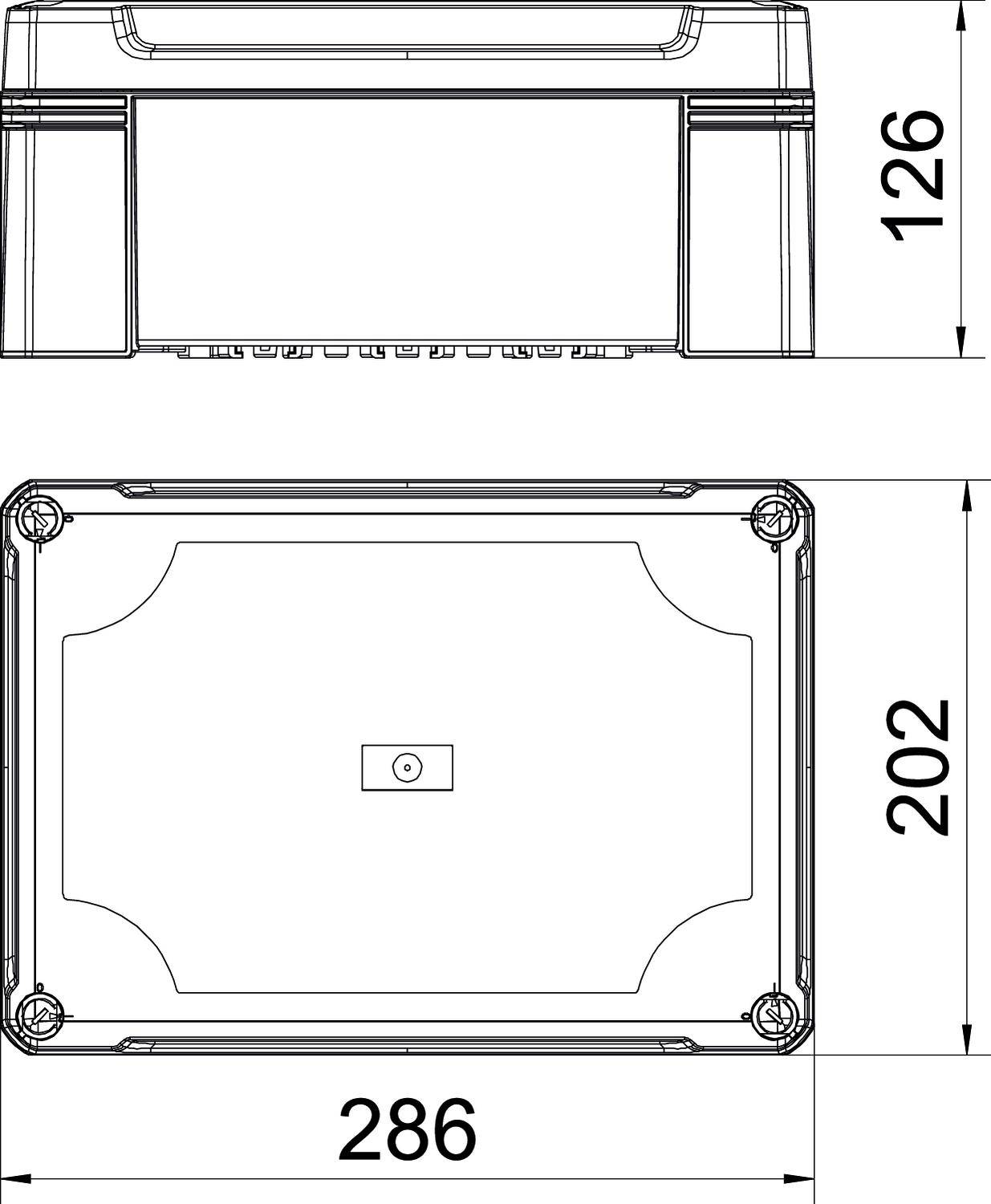

202 x 126 x 286 mm
- Content
1 pc(s)
- Type
X25C R LGR-TR
- Dim
(W x H x D) 202 x 126 x 286 mm
- Manufacturer part #
2005572
- Depth
286 mm
- Protection class
II
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1963100 OBO Bettermann X25C R LGR-TR Casing 202 x 126 x 286 1 pc(s)
Description

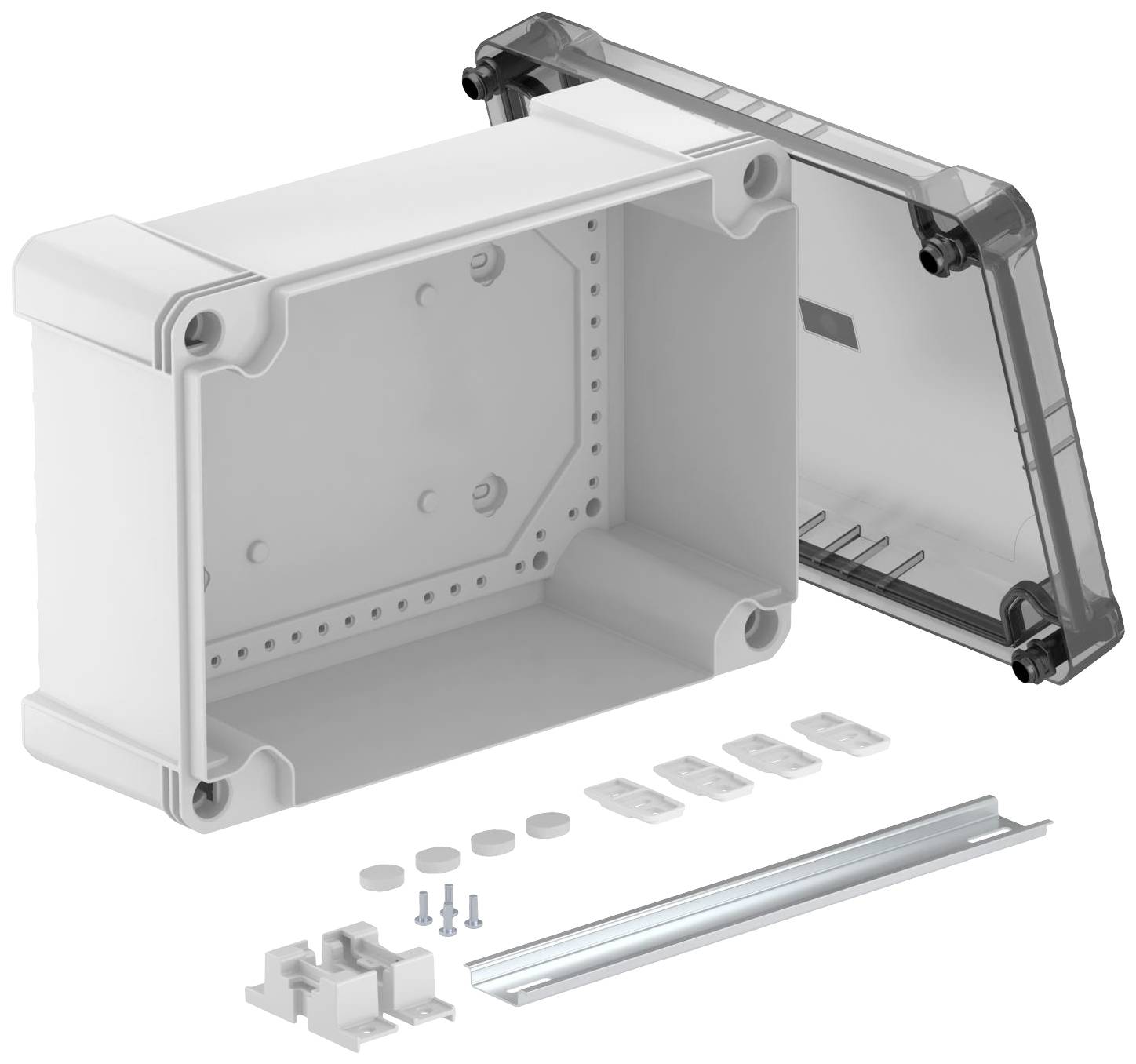

Sturdy empty housing of the X-series for creating individual electrical installations. They are suitable for indoor and outdoor use. When used in unprotected outdoor areas, the cable junction box against direct influences of the weather (e.g., through snow, wind, rain or sun). The cable junction box is tested according to DIN EN 60670-1, VDE 0606-1: 2014 (EN 60670-1:2005+Cor.:2007+Cor.:2010 + A1:2013) and DIN EN 60670-22, VDE 0606-22:2007 (EN 60670-22:2006). The cable junction box meets the requirements of the protection class IP67 according to DIN EN 60529, VDE test in accordance with the 0470-1: 2014 (EN 60529/AC:2016). With top hat profile rail type 2069 and mounting set.
This text is machine translated.
This text is machine translated.
